Automotive Brass Threaded Inserts IATF 16949 Certified Custom Non Standard Precision Fasteners
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-004 |
| Minimum Order Quantity | 1 |
| Price | 0.10-0.60USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Quality System | IATF 16949:2016 Certified Plant / Automotive Grade QC | Core Process | High Precision Turning / Online SPC Process Control |
|---|---|---|---|
| Critical Characteristics | Cpk≥1.33 On Key Dims / Full Dimensional Traceability | Material Compliance | Lead-Free Brass / RoHS & REACH Compliant / Material Certs |
| Validation Docs | PPAP Level 3 Package Available / Full FAIR | Anti-Loosening Design | High Torque Knurl / Vibration Resistant For Engine Bay |
| Temperature Rating | -40°C To +150°C Long-Term Operation / Thermal Cycle Resistant | Lead Time | Sample 5-7 Days / Batch 15 Days / Rush Orders Negotiable |
| Highlight | Automotive brass threaded inserts,IATF 16949 certified fasteners,Custom non-standard precision fasteners |
||
Product Description

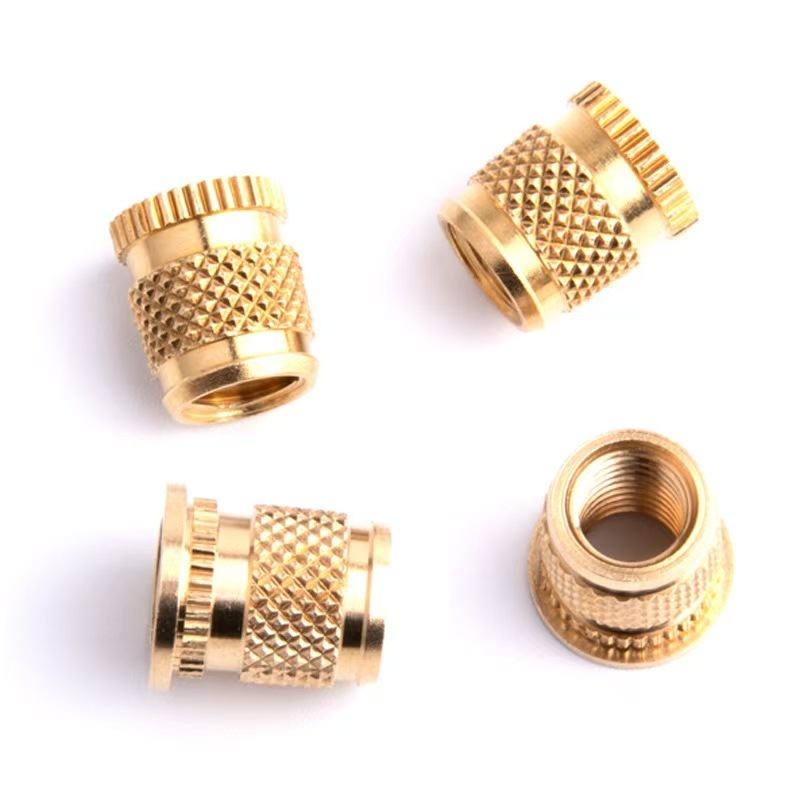

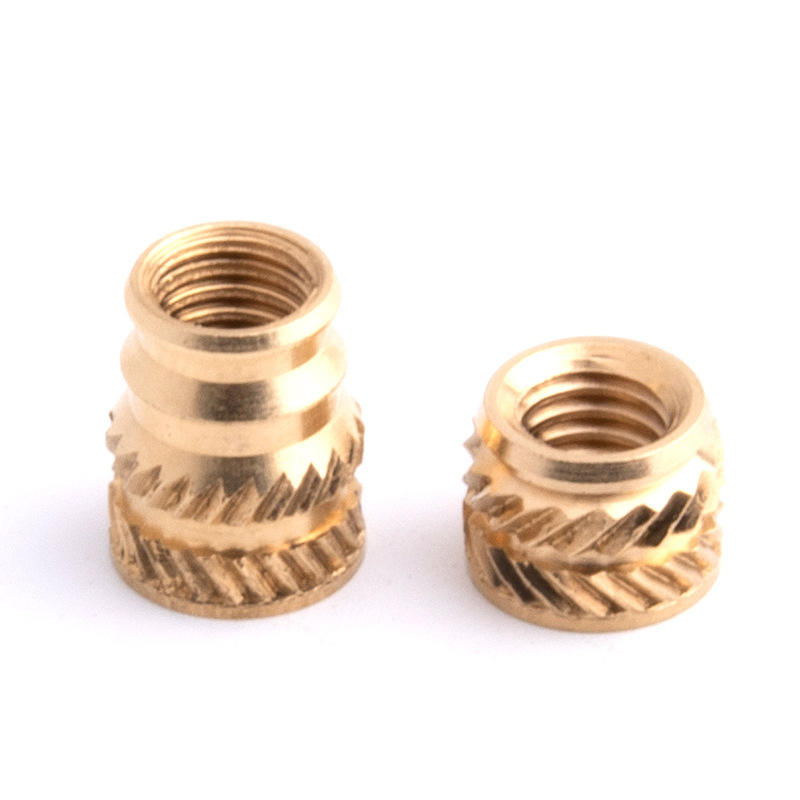

IATF 16949 Certified Brass Threaded Inserts for Automotive Electronics and Sensors
CNC Turned Nut Insert Parts Overview
Selecting inserts for automotive electronic systems requires meeting the most stringent reliability standards. A nut that loosens under vibration or thermal cycling can lead to ECU or ADAS sensor failure, posing serious safety risks. As an IATF 16949 certified manufacturer, Tingfeng Hardware provides zero-defect, fully traceable brass insert solutions for the automotive industry. We implement strict process control (SPC), ensure Cpk≥1.33 on critical dimensions, and provide complete PPAP documentation packages.
Automotive-Grade Manufacturing Excellence
In automotive under-hood or chassis applications, the environment is brutal: extreme temperature swings, continuous vibration, and exposure to chemicals and oils. These conditions place immense stress on threaded connection points. Our 5,000㎡ in-house factory operates strictly under the IATF 16949 system, meaning every step from raw material receiving to finished goods shipment is controlled.
We use high-conductivity lead-free brass combined with scientifically designed knurl patterns to ensure inserts offer exceptional torque-out and vibration resistance in engineering plastics like PA66 or PBT. With 15 years of precision manufacturing experience, 300+ advanced machines, and >90% customer repeat-order rate, we provide engineered fasteners that meet your quality specifications.
Product Features & Advantages
| Feature | Advantage to You |
|---|---|
| Strict IATF 16949 Compliance | Factory certified to rigorous automotive QMS. We use PFMEA and Control Plans to prevent defects rather than relying on inspection. Provides solid system assurance for your Tier 1 or OEM audits. |
| Robust Process Capability (Cpk ≥1.33) | Real-time SPC monitoring on key dimensions ensures stable, controlled production. Process capability data reports demonstrate our manufacturing system's ability to deliver consistent, high-quality parts long-term. |
| Complete PPAP & Traceability Docs | Can submit Level 3 PPAP packages per project requirements, including MSA, dimensional reports, and material certs. Establishes full traceability from raw material batch to finished goods, meeting automotive recall requirements. |
| Reliable Design for Harsh Environments | Our inserts are designed with automotive vibration and thermal shock in mind. Optimized knurl depth and tooth profile ensure clamping force is retained after thermal cycling from -40°C to 150°C, preventing loosening. |
| 15 Years Automotive Manufacturing Experience | Serving automotive clients since 2010, we deeply understand Tier 1/Tier 2 delivery and quality requirements. 300+ machines ensure capacity flexibility for urgent orders. |
Product Specifications
| Specification Item | Detail / Capability | Notes / Description |
|---|---|---|
| QMS Certification | IATF 16949:2016 / ISO 9001:2015 | Direct factory certification |
| PPAP Submission Level | Supports Level 1 to Level 3 Documentation | Includes PSW, PFMEA, CP, MSA, CPK |
| Key Dimension Capability | Target Cpk≥1.33 (≥1.67 for SC/CC) | Process capability reports provided |
| Recommended Thread Sizes | M3, M4, M5, M6 (Metric); #4-40 to 1/4-20 (Unified) | Common automotive electronics sizes |
| Operating Temp Range | -40°C to +150°C (Long-Term) / Peak 260°C (Reflow) | Compatible with PBT, PA66, PPS |
| Corrosion Resistance | Optional Ni Plated / Tin Plated / Natural Passivated | Passes 72hr Salt Spray Test |
Product Applications
- EV BMS/PDU Housings: Precision fastening for plastic enclosures of Battery Management Units and Power Distribution Units.
- ADAS Sensors & Cameras: Mounting brackets and housings for mmWave radar, LiDAR, and automotive camera modules.
- Automotive Interior & Lighting: Reliable connections for ambient light strips, center console trims, and HUD enclosures.
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
