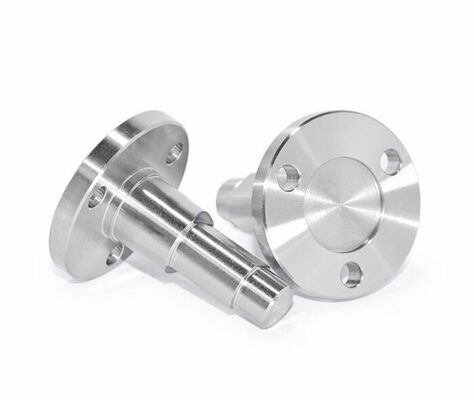

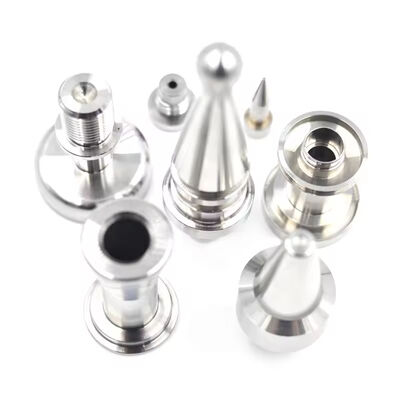

Complex Geometries Precision Machined Parts Critical Tolerance Requirements Cnc Machining Parts
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.01-9.99 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | ,T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Precision Machined Parts / CNC Milled Parts / CNC Turned Parts / Turn-Mill Parts | Main Material | Stainless Steel (303/304/316L) / Aluminum Alloy (6061/7075) / Titanium Alloy (Gr.2/Gr.5) / Engineering Plastics (PEEK/Delrin) |
|---|---|---|---|
| Machining Precision | Precision (±0.01mm) / High-Precision (±0.005mm) / Standard (±0.005mm) | Surface Roughness | Ra 0.8μm / Ra 0.4μm (Mirror) / Ra 1.6μm / Ra 3.2μm |
| Surface Finish | Passivation / Electroless Nickel / Electropolishing / Anodizing / Sandblasting | Process | 5-Axis Simultaneous / Turn-Mill Compound / Swiss-Type Machining / 4-Axis Milling |
| Typical Features | High Geometric Tolerance / Micro-Holes / Ultra-Thin Wall / Complex Contour / Precision Threads | Application Industry | Medical Devices / Aerospace / Optical Instruments / Semiconductor / Precision Measurement |
| Certification | ISO 13485 / AS9100 / ISO 9001 / IATF 16949 / ROHS | File Format | STEP / IGES / X_T / DWG / PDF |
| Highlight | Complex Geometries Precision Machined Part,Critical Tolerance Precision Machined Part,Complex Geometries cnc machining parts |
||
Product Description
Precision Machined Parts for Complex Geometries and Critical Tolerance Requirements
1.Precision Machined Parts Quick Detail
Tingfeng Hardware specializes in manufacturing precision machined parts with stringent tolerances and superior quality. Our core competency lies in achieving and consistently maintaining high precision at the ±0.005mm level, with particular expertise in handling critical components requiring extremely high form and position tolerances and surface integrity. In a temperature-controlled workshop environment, utilizing high-rigidity multi-axis machine tools and online measurement technology, we provide essential core components for the medical device, aerospace, and optical instrument industries, ensuring their performance, reliability, and lifespan.
2.Precision Machined Parts Product Description
For high-end equipment, precision parts are the cornerstone of their performance and reliability. We deeply understand the physical significance and functional requirements behind stringent tolerances. Therefore, our machining philosophy goes beyond mere dimensional control. We optimize cutting forces and thermal effects through process simulation, manage residual stress with special tooling, and implement full-chain data monitoring from raw material to finished product. We deliver not just parts, but verified “functional modules”—whether it’s a lens barrel ensuring optical system alignment or a valve body maintaining sealing under extreme conditions, we are committed to meeting the most rigorous application standards.
3. Precision Machined Parts Product Features & Advantage
|
Feature |
Advantage to You |
|
Sub-Micron Precision & Superior Geometric Control |
Focuses on dimensional tolerances at the ±0.005mm level and geometric tolerance control within 0.005mm (e.g., flatness, roundness, concentricity), ensuring perfect fit and function in精密 assemblies, reducing system error. |
|
Process for Difficult Materials & Extreme Micro-Features |
Proficient in precision machining of stainless steel, titanium alloys, and capable of high-quality machining of easily deformable features like micro-holes (<φ0.5mm) and ultra-thin walls (<0.3mm), representing high technical barriers. |
|
Full-Process Quality System Compliant with Medical & Aerospace Standards |
Production strictly follows ISO 13485 (Medical) and AS9100 (Aerospace) standards, providing complete material traceability, first-article inspection reports, and compliant documentation, helping you easily pass industry audits. |
|
Reliability-Centric Surface & Interface Engineering |
Offers not only various high-precision surface treatments but also focuses on post-treatment surface integrity, corrosion resistance, and biocompatibility, ensuring long-term stable operation of parts in complex end-use environments. |
4.Precision Machined Parts Product Specification
|
Specification Item |
Detail / Range |
Standard / Notes |
|
High-Precision Capability |
±0.005 mm |
Stable tolerance for critical features |
|
Geometric Tolerance Capability |
Flatness/Parallelism 0.005mm; Roundness 0.0025mm |
Achievable with process design |
|
Surface Roughness (Ra) |
0.1 μm — 0.8 μm |
Mirror & Precision Grade |
|
Minimum Hole Diameter |
0.3 mm |
Aspect ratio dependent |
|
Thin-Wall Machining Capability |
Minimum Wall Thickness 0.2 mm (Al) |
Supported by anti-deformation process |
|
Material Hardness Range |
HRC ≤ 58 (Turning/Milling) |
Specific material & process |
|
Cleanliness Level |
ISO Class 7 Cleanroom Cleaning & Packaging Available |
Per customer requirement |
5.Precision Machined Parts Product Application
Our precision components are indispensable core components for high-end technological equipment:
Surgical and Diagnostic Equipment: Machining precision endoscope tubing, surgical robot drive units, and image detector housings, requiring sterility, high surface finish, and extremely high dimensional stability.
Aerospace and Satellite: Manufacturing flight control actuator housings, satellite optical mirror bases, and engine fuel nozzles, involving high-strength-to-weight ratio materials and performance assurance under extreme temperatures and pressures.
Optics and Optoelectronics: Producing fiber optic coupler substrates, laser resonator cavities, and high-precision optical adjustment mounts, requiring sub-micron-level shape accuracy and extremely low thermal expansion effects.
Semiconductor Manufacturing Equipment: Machining wafer transport robot components, vacuum chamber internal components, and plasma electrodes, requiring high cleanliness, low outgassing rates, and excellent corrosion resistance.
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
