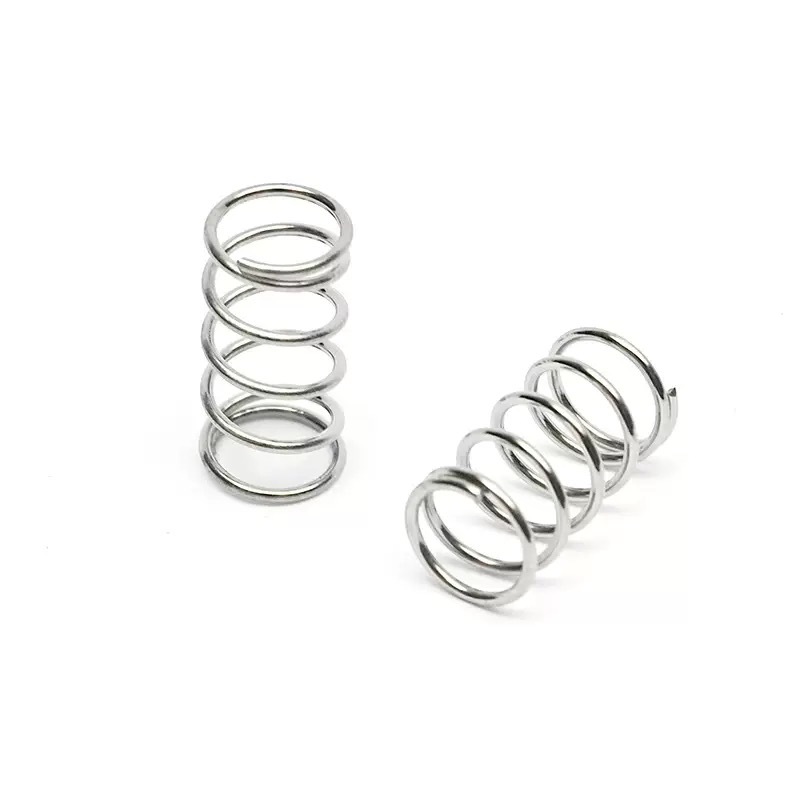

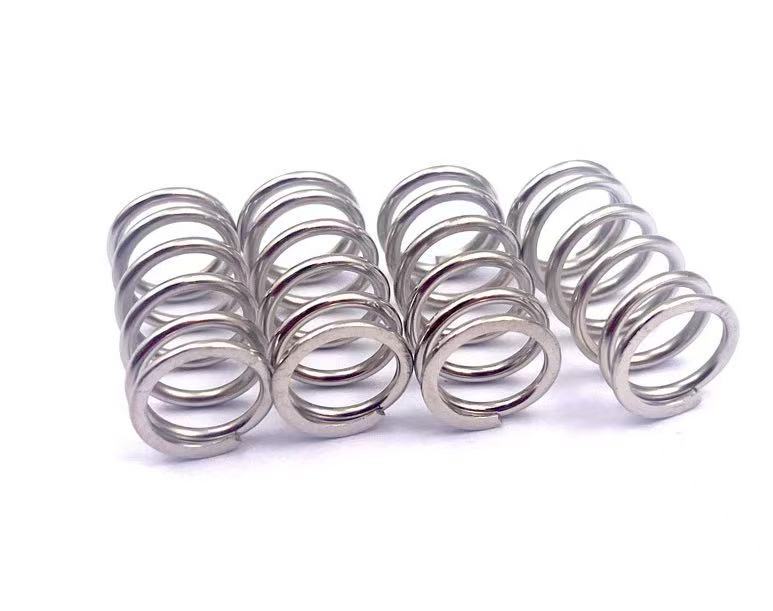

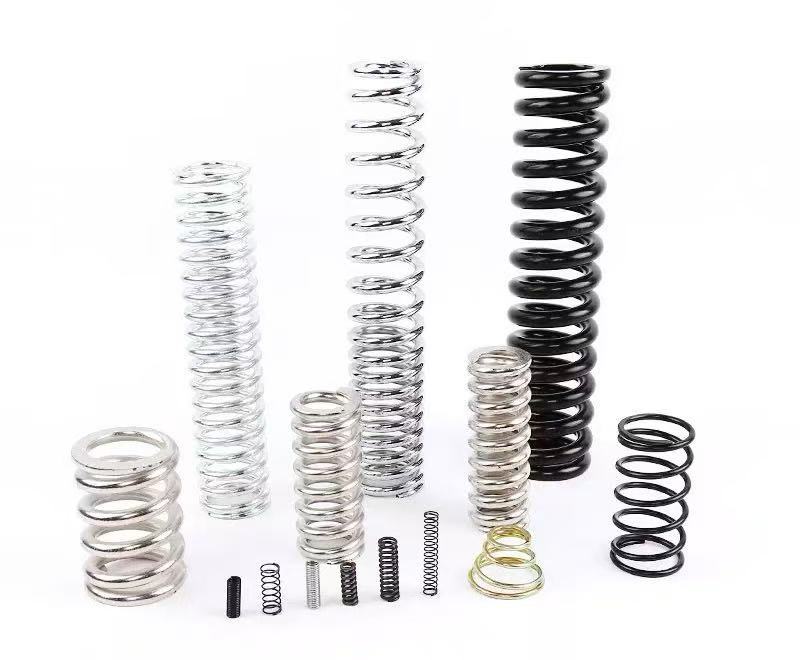

Barrel Shape Compression Spring Anti Buckling Design for Long Stroke
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-0018 |
| Minimum Order Quantity | 1 |
| Price | 0.2-0.52/pcs |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Shape | Barrel (larger Middle, Smaller Ends) | Core Advantage | Prevents Buckling When L/D > 4 |
|---|---|---|---|
| Middle OD | 8mm – 25mm | End OD | 2-5mm Smaller Than Middle |
| Free Length | 20mm – 150mm | Wire Diameter | 0.3mm – 2.0mm |
| Material | Music Wire / SUS304 / Chrome Silicon | Application | Long-stroke Mechanisms Without Guide Rod, Overhung Springs |
| Highlight | barrel shape compression spring,compression spring anti buckling design,long stroke compression spring |
||
Product Description
Barrel Shape Compression Spring Anti Buckling Design for Long Stroke
Barrel-shaped compression springs with anti-buckling design provide reliable long-stroke performance without requiring external guides or sleeves.
Compression Spring Overview
Long compression springs (free length/OD >4) tend to buckle and bow sideways, typically requiring guide rods or sleeves. Our barrel-shaped springs—larger in the middle, smaller at ends—naturally resist buckling without additional guides. Custom middle/end OD, free length, and spring rate available. Ideal for long-stroke, non-guided mechanisms with 48-hour sampling.
Anti-Buckling Design Solution
Buckling is a common challenge in long-stroke compression spring design. When compressed, lateral forces cause the spring's middle section to bow outward, contacting housings or adjacent parts, increasing friction, causing noise, or even leading to spring fracture. Traditional solutions require adding guide rods or sleeves—adding cost and space.
Barrel-shaped springs (also called convex springs) solve this by altering the profile: largest diameter in the middle, smaller at ends. When compressed, the middle tends to expand outward, but because it already has the largest diameter, this creates a self-centering stabilizing moment that resists buckling. We design the optimal arc and taper ratio based on your spring's free length to mean diameter ratio. This method has been proven in long-stroke solenoids and auto-reset mechanisms—no guide needed for simplified design.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| Built-in anti-buckling geometry | Eliminates external guide rods or sleeves, simplifying structure and reducing cost |
| Long-stroke capability | L/D ratio up to 8:1 or higher, enabling longer effective stroke |
| Custom barrel profile | Arc optimized based on L/D and load to maximize buckling resistance |
| No tooling fee | CNC coiling, economical for small batches |
| 48hr rapid sampling | Quickly validate spring stability without guidance |
Product Specifications
| Specification Item | Detail / Capability | Notes / Description |
|---|---|---|
| Free Length | 20mm - 150mm | L/D >4 recommends barrel shape |
| Middle OD | 8mm - 25mm | At largest diameter |
| End OD | 5mm - 20mm | 2-5mm smaller than middle |
| Wire Diameter | 0.3mm - 2.0mm | Constant diameter |
| Spring Rate | Linear (constant) | Same calculation as cylindrical |
| Max Stroke | 70-80% of free length | Higher buckling threshold |
| End Type | Closed not ground / Closed & ground | As required |
| Sample Lead Time | 3-5 days | Requires arc calculation |
Applications
- Long-Stroke Solenoids: Return springs for solenoid actuators with long stroke and no central guide; prevents side friction
- Auto-Retract Devices: Springs for cord reels, auto-retracting cables, and bungee cords requiring long stroke without guidance
- Precision Measurement Probes: Springs for displacement sensors and LVDTs requiring friction-free, side-load-free operation for accuracy
Frequently Asked Questions
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
