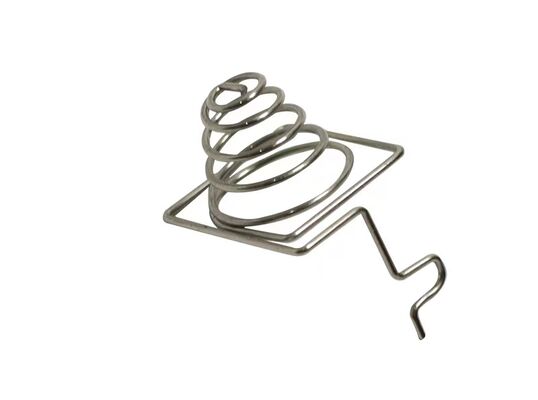

Micron Precision Battery Spring Battery Contact Spring For Miniature And Implantable Devices
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-002 |
| Minimum Order Quantity | 1 |
| Price | 0.03-0.08USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | ,T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Component Name | Micro/Precision Battery Contact | Material Science Options | High Elasticity Alloy / Anti-Stress Relaxation Copper / Medical Grade Stainless Steel |
|---|---|---|---|
| Precision Grade | Commercial (±0.05mm) / Precision (±0.02mm) / Ultra-Precision (±0.01mm) | Electrical Contact Design | Single-Point High Force / Multi-Point Distributed / Area Contact Cushion |
| Surface Finishing Technology | Micro-Porous Gold Plating / Composite Plating (Ni/Au, Ni/Pd/Au) / Environmental Passivation | Reliability Focus | Anti-Vibration Loosening / Anti-Fretting Corrosion / Anti-Thermal Cycle Fatigue |
| Integration Application | PCB SMT Mounting / FPC Soldering / Modular Plug-in | Compliance & Certification | ROHS / REACH / UF / ISO 13485 (Supported) |
| Highlight | Micron Precision Battery Spring,Implantable Devices Battery Spring,Implantable Devices Battery Contact Spring |
||
Product Description
Micron-Precision Battery Springs & Contacts for Miniature and Implantable Devices
1.Battery Spring Quick Detail
In an era where miniaturization and high reliability are paramount, Tingfeng Hardware specializes in the precision manufacturing of miniature, high-precision battery springs and contacts. We have overcome the challenges of precisely forming sub-millimeter wires/strips, achieving micron-level dimensional control. Our core competency lies in deeply integrating "elastic mechanics" and "electrical contact science," providing battery connection solutions for your miniature devices (such as hearing aids, implantable device sensors, and high-end headphones) that are not only compact but also offer stable and reliable connections. Leveraging our proprietary precision molds and electroplating technology, along with IATF-level quality control processes, we ensure that every miniature product possesses exceptional reliability.
2.Battery Spring Product Description
When battery compartment space is compressed to the limit, every micron becomes crucial. We specialize in designing battery contacts for these "space-sensitive" applications. Our engineering philosophy is "innovation within constraints." We use finite element analysis (FEA) to optimize every bend in the contact spring, ensuring sufficient contact force while minimizing stress concentration. We study the wear characteristics of different plating materials at the microscopic level, selecting the combination that is most resistant to fretting corrosion. We even consider the trace gas emissions from batteries during long-term use, choosing corrosion-resistant materials. What we deliver is a meticulously calculated and verified "bridge" in the microscopic world, small yet carrying all the expectations for the stable operation of the device.
3.Battery Spring Product Features & Advantage
|
Feature |
Advantage to You |
|
Sub-Millimeter Precision Forming Technology |
Capable of stably producing complex 3D contact strips with wire/thickness below 0.3mm, breaking through the space limitations of battery connections for your ultra-thin, micro devices. |
|
Micro Contact Interface Optimization |
Enhances contact stability and reduces contact resistance fluctuation at the micro level by controlling contact sphere radius, surface roughness, and plating crystal morphology. |
|
Special Countermeasures for Fretting Corrosion |
Adopts special plating systems (e.g., hard gold) or structural designs to effectively inhibit contact interface degradation caused by micro-vibration, significantly increasing connector life in dynamic environments. |
|
Cleanroom-Level Production & Packaging |
For medical or high-reliability applications, we offer options for manufacturing, cleaning, and vacuum packaging in a cleanroom environment, ensuring product cleanliness upon delivery to meet your stringent requirements. |
4.Battery Spring Product Specification
|
Key Performance Indicator |
Measurement Method & Standard |
Our Capability Level |
|
Dimensional & Geometrical Tolerance |
|
|
|
Key Dimension CPK |
Statistical Process Control per drawing requirement |
≥ 1.33 (Precision Grade) |
|
Flatness/Parallelism |
Using optical projector or CMM |
≤ 0.05mm (Typical) |
|
Contact Coplanarity |
Especially critical for SMT-mount type strips |
≤ 0.1mm |
|
Electrical Performance |
|
|
|
Dynamic Contact Resistance |
Measure resistance variation under vibration |
ΔR < 5 mΩ (Peak-to-Peak) |
|
Rated Current (DC) |
Test based on temperature rise ΔT ≤ 30°C |
Custom, up to 3A (Micro Type) |
|
Environmental & Durability |
|
|
|
Fretting Corrosion Test |
Cyclic test with specific amplitude & frequency, evaluate resistance growth |
Meets custom client standards |
|
High Temp High Humidity Bias Test |
e.g., 85°C/85%RH with Bias, evaluates electrolytic corrosion |
Pass > 500 hours |
|
Thermal Shock Test |
-40°C ↔ +85°C, evaluates interface connection reliability |
Pass > 100 cycles |
5.Battery Spring Product Application
Tiny Bodies, Huge Responsibilities: Miniature Battery Contacts for Cutting-Edge Applications
Implantable and Wearable Medical Electronics: Internal battery connections for pacemakers, neurostimulators, and continuous glucose monitoring patches require extremely high biocompatibility, long-term reliability, and absolute safety.
Micro-Sensors and Actuators: Energy storage unit connections in Internet of Things (IoT) sensor nodes, MEMS devices, and micro-drones require reliable electrical contact under extreme size and weight constraints.
High-End Audio Equipment: Miniature battery contacts in top-of-the-line in-ear monitors and bone conduction headphones demand extremely low contact noise and excellent resistance to sweat corrosion.
Precision Instruments and Spacecraft Subsystems: In non-repairable battery backup systems for scientific instruments and satellite modules, the contacts must withstand the severe vibrations of the launch phase and the harsh conditions of the space environment.
6. Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
