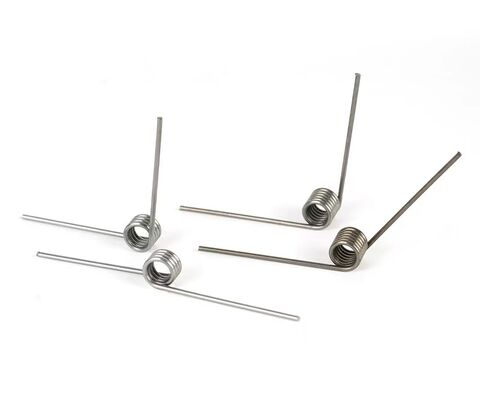

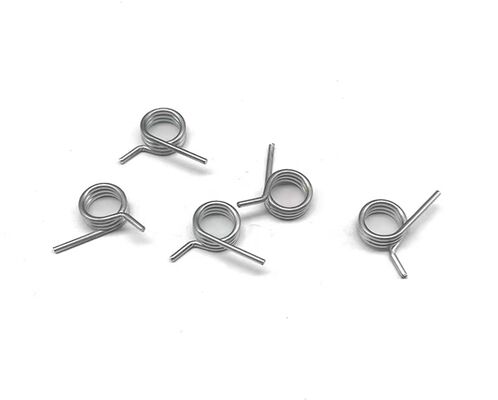

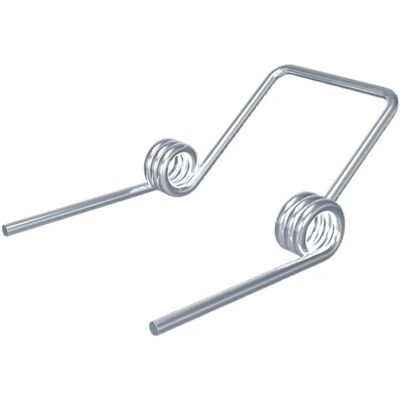

Customized Torsion Springs High Precision Springs With Torque And Rotation Angle Control
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-004 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.57 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Precision Compact Design | Wire Diameter From 0.1mm For Space-constrained Precision Mechanisms | Precise Torque & Rotation | Torque Tolerance ±10% Or Better Rotation Angle Up To 360°+ |
|---|---|---|---|
| Custom Arm Configurations | Any Leg Angle Orientation Supported | Long Life & Reliability | High-cycle Design, Shot Peened Service Life Increased 30%+ |
| Process | Cold Coiling / Hot Coiling / Stress Relief / Presetting | Precision Grade | Standard (±10%) / Precision (±5%) / Ultra-Precision (±3% Or Custom) |
| Certification | ISO 9001 / IATF 16949 / Material Certs / ROHS | Notice | All Can Be Customized |
| Highlight | Customized Torsion Spring,Precise Torque Torsion Springs,Precise Torque High Precision Springs |
||
Product Description
Custom Torsion Springs with Precise Torque and Rotation Angle Control
1. Torsion Spring Quick Detail
Tingfeng Hardware specializes in custom high-precision, non-standard torsion springs. Leveraging precision CNC coiling and professional arm forming technology, we precisely control torque, angle, and arm configuration to deliver stable and reliable rotational force solutions for your hinge, return, and drive mechanisms.
2. Torsion Spring Product Description
As your technical partner, we focus on solving design challenges posed by space constraints, special arm configurations, or demanding life requirements. Our value lies in early engagement: through in-depth installation and motion analysis (DFA), we optimize spring design to balance stress, ensure torque linearity, and mitigate failure risks. Combined with materials science and professional post-processing, the torsion springs we deliver maintain consistent performance under rigorous cyclic loads, serving as the reliable core component in your complex mechanisms.
3. Torsion Spring Product Features & Advantage
|
Feature |
Advantage to You |
|
Customized Design for Non-Standard Applications |
We provide fully custom solutions—from special arm forms and multi-angle torsion to unique mounting—tailored to your spatial and mechanical needs, ensuring perfect integration into your design, not forcing your design to accommodate standard parts. |
|
Engineering-Led Collaborative Development |
We offer free torque curve simulation and DFM analysis, engaging at the drawing stage to optimize designs and mitigate root-cause failure risks like stress concentration, accelerating your product development cycle. |
|
Verifiable Precision & Consistency |
Through precision manufacturing and 100% inspection, we ensure key torque tolerances remain within ±5%. Batch-specific torque-angle curve test reports are available, providing data-backed quality assurance for your product. |
|
Enhanced for Long Life & Harsh Conditions |
For high-frequency cycling, extreme temperatures, or corrosive environments, we offer material selection, specialized heat treatments, and surface enhancements to significantly improve spring fatigue life and durability. |
4. Torsion Spring Product Specification
|
Specification Item |
Detail / Range |
Tolerance / Standard |
|
Wire Diameter (d) |
0.1 mm — 5.0 mm |
±0.01 mm |
|
Spring Inside Diameter (ID) |
0.5 mm — 80 mm |
±0.1 mm (or ±1% ID) |
|
Total Coils |
2 — 50 |
±0.25 Coils |
|
Torque (M) |
0.01 N·mm — 50,000 N·mm |
±5% — ±10% |
|
Working Angle |
0° — 360° (Can Exceed) |
±5° |
|
Arm Length (L1, L2) |
2 mm — 200 mm |
±0.5 mm |
|
Wind Direction |
Left Hand / Right Hand |
Per Drawing |
|
Fatigue Life |
10⁴ — 10⁶ Cycles |
Load & Material Dependent |
5.Torsion SpringProduct Application
Our precision torsion springs are core components for achieving accurate control and reliable return in high-end equipment, primarily serving:
Precision Instruments & Automation: Used in optical focusing mechanisms, sensor reset arms, and robotic micro-joints, providing millinewton-meter level torque accuracy and extended cycle life.
High-End Automotive Systems: Applied in HUD adjustment mechanisms, electric vent vanes, and active suspension sensors, meeting automotive-grade durability and quiet operation standards.
Professional Consumer Electronics: Used in foldable screen hinges, high-end gimbals, and professional tool motors, delivering smooth damping and precise homing within compact spaces.
Semiconductor & Medical Devices: Employed in wafer handling robot arms, microfluidic valve switches, and surgical instrument joints, where supreme cleanliness, reliability, and corrosion resistance are critical.
6. Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
