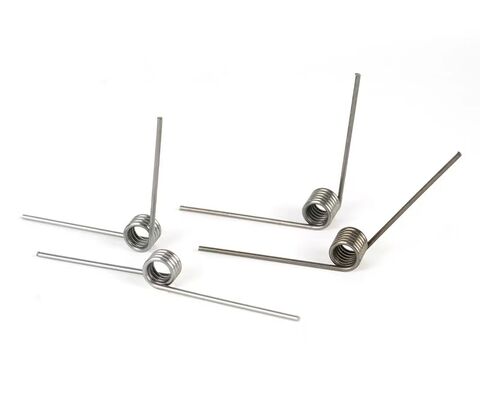

Fatigue Resistant Small Torsion Spring High Accuracy For Medical Solution
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-004 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.57 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Spring Category | Custom Torsion Spring | Core Material | Music Wire (High Elastic) / Stainless Steel 304/316 / Chrome Silicon (High Temp) / Zinc Plated Carbon Steel |
|---|---|---|---|
| Typical Wire Diameter | 0.2mm, 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm | Arm Form | Same Side Straight Arms / Opposite Side Straight Arms / Same Side Bent Arms / Special Shaped Arms |
| Torque Level | Micro Torque / Light Torque / Medium Torque / High Torque | Processing Technology | Cold Coiling / Stress Relief / Presetting / Surface Protection |
| Industry Solution | Automotive Solution / Medical Solution / 3C Electronics Solution / General Industrial Solution | Quality System | ISO 9001 Certified / IATF 16949 Certified / Process Audit Support |
| Highlight | Fatigue Resistant Small torsion spring,High Accuracy Small torsion spring,Fatigue Resistant Custom torsion spring |
||
Product Description
High-Cycle Life Torsion Springs | Fatigue-Resistant Design for Long-Term Performance
1. Torsion Spring Quick Detail
As your trusted torsion spring expert, we specialize in providing high-precision, non-standard custom torque solutions. With over 15 years of industry experience and advanced equipment like WAFIOS/OMCN, we can handle various complex torsion requirements for wire diameters from Φ0.1-12mm. We offer seamless services from single-piece prototype validation to mass production of 500,000 pieces daily. Backed by an ISO/IATF dual-certified quality system and agile mold response, we ensure your project moves forward rapidly and robustly from concept to product.
2. Torsion Spring Product Description
Torsion springs are key components for controlling rotational motion, storing and releasing energy. We are committed to translating a deep understanding of mechanics into reliable physical products. Our engineering team conducts in-depth analysis for your specific application (such as hinge reset, clutch actuation, constant force application), optimizing the spring's coil count, arm length, angle, and material selection. We offer a wide range of material options (including various stainless steels, alloy steels, and copper alloys) and professional surface treatment and heat treatment processes to ensure that the springs maintain precise torque output and excellent fatigue resistance under long-term cyclic loads.
3. Torsion Spring Product Features & Advantage
|
Feature |
Advantage to You |
|
Precise Torque Consistency |
Ensures torque tolerance within the same batch is controlled to ±8% or tighter through precision coiling and strict heat treatment processes, meeting the force feedback needs of precision mechanisms. |
|
Reinforced End Structure Design |
Focuses on optimizing the transition between the arm and the coil body, employing specific processes to reduce stress concentration, significantly enhancing the durability and reliability of the torsion spring. |
|
Smooth Path from Prototype to Volume |
Seamless对接 between “1-piece MOQ” sample service and mature mass production system ensures rapid and stable scale-up after design validation. |
|
Deeply Collaborative Engineering Development |
Engineers provide comprehensive free consultation on spatial layout, installation methods, and life prediction, acting as an effective extension of your R&D team. |
4. Torsion Spring Product Specification
|
Specification Item |
Detail / Range |
Tolerance / Standard |
|
Wire Diameter |
0.10 mm — 10.0 mm |
±0.01 mm |
|
Outside Diameter |
1.0 mm — 120 mm |
±0.1% (Typical) |
|
Free Angle |
Custom per Design |
±5° (Standard) |
|
Working Torque |
0.05 N·mm — 8,000 N·mm |
±8% (Standard), ±5% (Precision) |
|
Max. Working Angle |
Typically recommended ≤ 360° |
Designed per Safe Stress |
|
Arm Length Precision |
1 — 200 mm |
±0.5 mm or per Drawing |
|
Operating Temperature Range |
-50°C to +250°C (常规 Materials) |
Extendable with Special Materials |
|
Wind Direction |
Left Hand or Right Hand |
Customizable |
5.Torsion SpringProduct Application
Our custom torsion springs serve diverse precision engineering fields:
Automotive Industry: Used in steering column return, center console latches, electric tailgate hinges, etc., requiring high cycle life and resistance to environmental changes.
Consumer Electronics: Applied in laptop screen hinges, camera flip-screen mechanisms, game controller triggers, pursuing smooth torque feel and compact spatial design.
Medical Devices: Such as adjustable bed handles, surgical instrument joints, insulin pump drive mechanisms, with stringent standards for cleanliness, reliability, and precision.
Industrial Automation: As core components in robotic arm rotation joint limiters, valve actuator returns, and safety door latches, ensuring long-term stable operation of equipment.
6. Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
