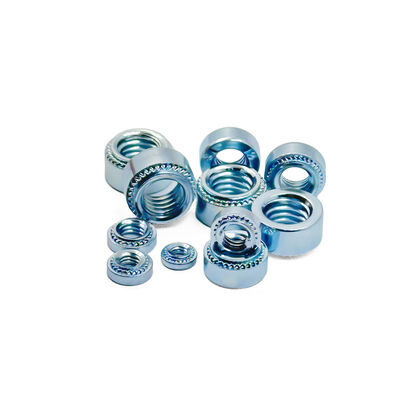

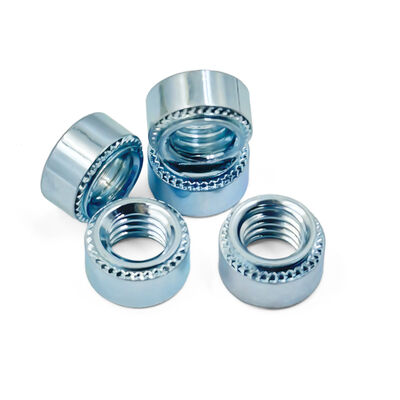

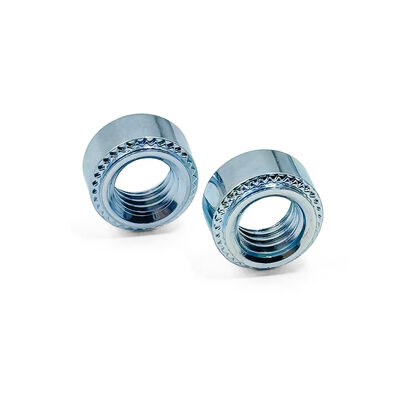

Automotive Grade Press Fit Nut IATF 16949 For Battery Pack Or Lightweight Body Applications
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-003 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.28 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Industry Focus | Automotive Manufacturing & New Energy | System Certification | IATF 16949 Quality Management System |
|---|---|---|---|
| Core Requirement | High Reliability, Lightweight, Vibration Resistance, Corrosion Resistance | Key Control | Process Capability Index (Cpk), Full Dimension Inspection, Batch Traceability |
| Special Performance | Anti-Fretting Wear, Resistance To Thermal Cycling, Low Risk Of Galvanic Corrosion | Common Materials | High-Strength Steel, Aluminum Alloy, Stainless Steel A2/A4 |
| Surface Finish | Dacromet, Zinc-Nickel Alloy Plating, Passivation | Documentation Support | PPAP, IMDS, Material Reports |
| Highlight | Automotive Grade Press Fit Nut,Battery Pack Press Fit Nut,Battery Pack press fit fastener |
||
Product Description
Automotive Grade Press-Fit Nut Solution | IATF 16949 for Battery Pack & Lightweight Body Applications
1.Press-fit nuts Quick Detail
We deeply understand the stringent requirements of the automotive and new energy industries for fasteners. Our press-fit nut solutions are built around the goals of "zero defects, high reliability, and long lifespan," from material selection and structural design to manufacturing processes. We implement full-process control according to the IATF 16949 standard to ensure that our products have excellent vibration fatigue resistance, corrosion resistance, and compatibility with lightweight materials, making them the ideal choice for your battery packs, electric drive systems, body and interior components, and other applications.
2.Press-fit nuts tProduct Description
In the automotive and new energy vehicle sectors, every connection point is crucial to safety, performance, and durability. We not only provide press-fit nuts that conform to drawings, but also complete, industry-proven connection solutions. For the high vibration resistance requirements of battery pack module mounting, we have developed press-fit nuts with a special locking structure; for the trend towards lightweight aluminum car bodies, we have optimized press-fit process parameters to prevent sheet metal cracking and ensure connection strength; for the weather resistance requirements of outdoor charging stations, we have matched high-performance anti-corrosion coatings. Our engineering team is familiar with industry standards and testing specifications, enabling us to work with you to address challenges such as NVH (noise, vibration, and harshness), salt spray, and thermal cycling, ensuring stable and reliable connection points throughout the entire product lifecycle.
3.Press-fit nuts Features & Advantage
|
Feature |
Advantage to You |
|
Compliance with Automotive Quality Management System |
Factory is IATF 16949 certified, establishing a complete traceability system from raw materials to finished products, implementing strict change management and batch control, providing you with products and documentation support (e.g., PPAP) that meet automotive industry access standards. |
|
Dedicated Solutions for New Energy Vehicles |
Provides low-profile, high-torque press nuts for battery packs (especially CTP/CTC structures); provides high-temperature resistant and lock-proof press solutions for e-drive systems; provides high-durability, wear-resistant connection points for charging interfaces, accelerating your product development and mass production. |
|
Expert in Lightweight Material Connections |
Has rich experience in press-fit connections on lightweight sheets such as aluminum alloy, high-strength steel, and composites, effectively controlling pressing force to avoid sheet damage, and providing bonding force data support to help you achieve weight reduction goals. |
|
Excellent Environmental Durability & Reliability |
Optimizes product performance under vibration, shock, thermal cycling, salt spray, etc., through simulation and physical testing, providing relevant test reports as empirical evidence for your product reliability. |
|
Rapid Response & Simultaneous Development Capability |
We have extensive experience in developing in sync with OEMs or Tier 1 suppliers, enabling us to respond quickly to design changes, provide technical advice, and deliver qualified samples and products according to project milestones, meeting the agile development needs of the automotive industry. |
4.Press-fit nuts Product Specification
|
Specification Item |
Detail / Capability |
Notes / Description |
|
Common Automotive Specifications |
M5, M6, M8, M10 threads, compliant with DIN, IFS, and customer-specific standards |
|
|
Recommended Applicable Sheet Thickness |
Suitable for steel sheets 0.8mm - 3.0mm, aluminum sheets 1.0mm - 4.0mm |
Specific evaluation required based on nut model and sheet material |
|
Performance Test Standards |
Push-out and torque-out tests comply with ISO 898-1, DIN 6930, or customer-defined standards |
Third-party test reports available |
|
Environmental Testing Capability |
Supports vibration tests (e.g., LV 124), salt spray tests (e.g., DIN 50021), thermal cycling tests, etc. |
Can be performed per industry or customer standards |
|
Corrosion Resistance of Surface Finish |
Zinc-nickel alloy plating can achieve >720 hours neutral salt spray without red rust, Dacromet >1000 hours |
Meeting different corrosion protection requirements |
|
Material Reports & Compliance |
Provides complete IMDS reports, compliant with ELV, REACH, etc. |
Assists your vehicle compliance |
|
Production Part Approval Process |
Can provide complete PPAP package, including PSW, MSA, CPK, PFMEA, etc. |
Supports submission of Level 3 and above |
5.Press-fit nuts tProduct Application
Our press-fit nuts are widely used in key components across the automotive and new energy vehicle industries:
Power Battery Systems:Serving as connection points between battery pack modules and end plates, and between the housing and cover, requiring high shock resistance, reliable current Electric Drive Systems: Used for securing motor end covers and controller housings, requiring tolerance to high temperatures, high-frequency vibrations, and electromagnetic interference to ensure durable sealing and stability.
Body and Chassis Structures: Providing high-strength, lightweight threaded connection solutions for aluminum alloy bodies, subframes, and suspension connectors, meeting collision safety and durability requirements.
Interior and Electrical Systems: Serving as fastening points for dashboard frames, seat supports, and wiring harness mounting plates, ensuring safety while prioritizing installation efficiency and aesthetics.
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
