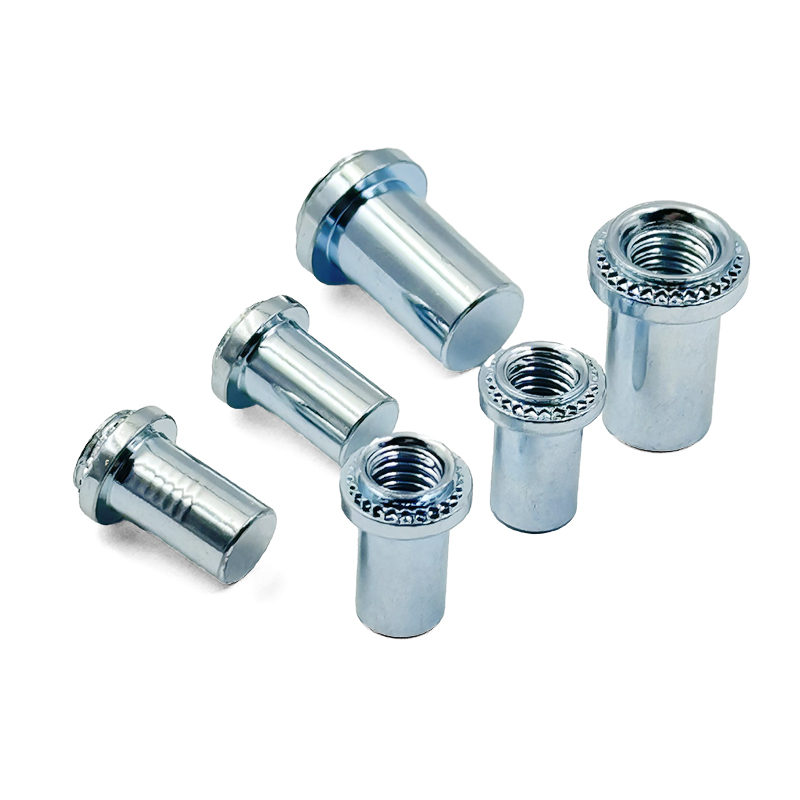

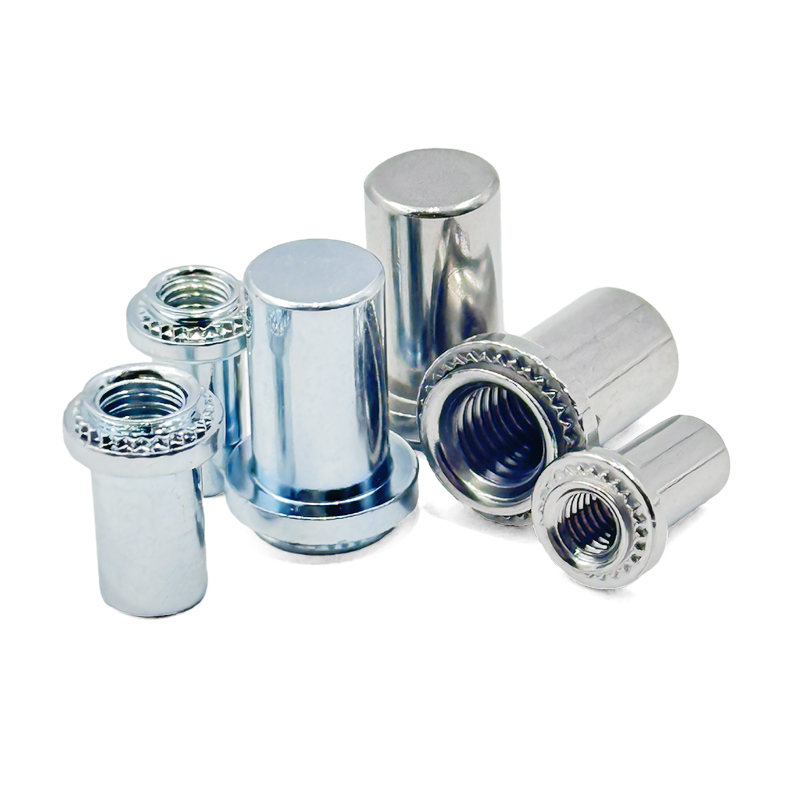

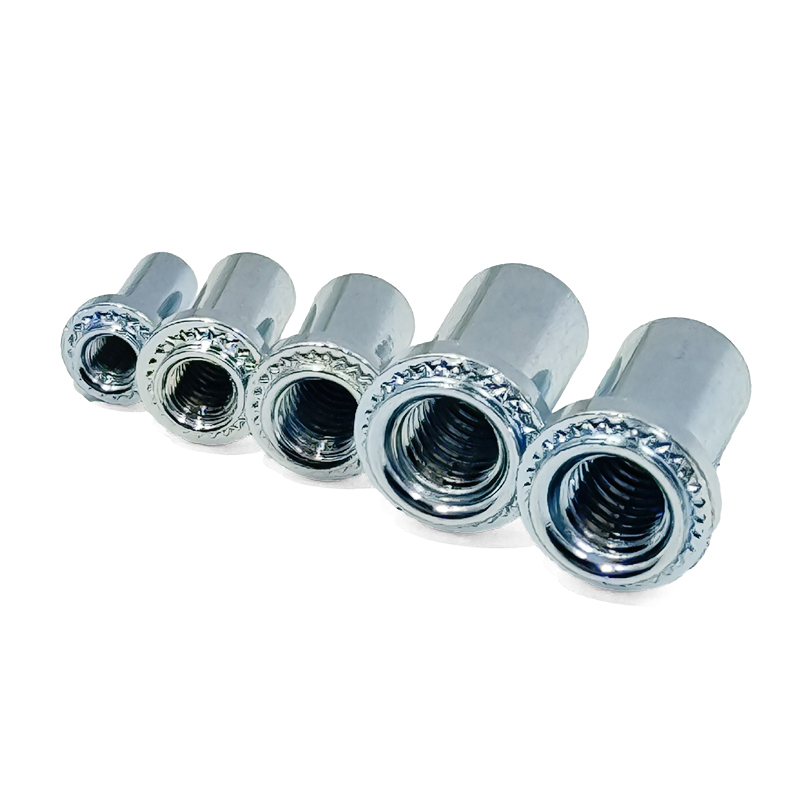

Waterproof Self Clinching Fasteners Sealing Material Silicone FKM Self Clinching Screw
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-003 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.28 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Technical Core | Elastomer Sealing Mechanics & Interface Science | Seal Key Factors | Material Compound, Hardness (Shore A), Compression Ratio |
|---|---|---|---|
| Performance Focus | Long-Term Compression Set, Chemical Resistance | Material Library | EPDM, Silicone, FKM/Viton, NBR |
| Design Key | Precise Groove Design For Uniform Compression | Validation Metric | Leak Rate < 1×10⁻³ Mbar·l/s (Optional) |
| Application-Driven | Selection Based On Medium(Water/Oil/Chemical), Temp, Pressure | Collaboration Value | Free Seal Material Selection Guide Provided |
| Highlight | Waterproof Self Clinching Fasteners,Silicone Self Clinching Fasteners,FKM self clinching screw |
||
Product Description
Waterproof Nut Sealing Material Consultant | Multi-Material Selection (Silicone/FKM) & Compression Ratio Design
1.Waterproof nuts Quick Detail
The core performance of waterproof nuts lies in the material science and precision mechanical design of the sealing ring. We not only offer standard EPDM solutions, but also possess a material library covering silicone (resistant to high and low temperatures), fluororubber (resistant to oil and chemicals), and nitrile rubber (resistant to petroleum-based oils). By precisely calculating the compression ratio (typically 20-30%) and designing a matching sealing groove, we ensure that the sealing ring generates a stable and durable sealing force after installation, rather than simply "tightening." This solves the industry problem of premature failure of seals due to stress relaxation, aging, or media corrosion.
2.Waterproof nuts tProduct Description
Truly reliable sealing requires understanding the mechanical behavior of the seal in a confined space. We analyze compressive stress distribution, contact pressure, and modulus changes at different temperatures. For example, for automotive engine bay applications, we recommend Fluorocarbon Rubber (FKM) for its excellent elasticity and sealing performance in 150°C high temperatures and engine oil environments. For outdoor equipment with frequent thermal cycling, Silicone with low compression set is a better choice. We act as your “Sealing Consultant,” helping you avoid material selection pitfalls and make decisions based on scientific data.
3.Waterproof nutsroduct Features & Advantage
|
Feature |
Advantage to You |
|
Application-Based Material Science Selection |
We offer a clear material comparison matrix (temperature range, media type, hardness options) to help you select the best sealing material based on the actual liquid, temperature, and pressure you will be in contact with, thus avoiding seal failures and after-sales issues caused by incorrect selection. |
|
Precision Groove Design & Controlled Compression Ratio |
Our nut seal grooves are optimized via FEA to ensure the seal material flows uniformly under compression, forming an optimal sealing interface. The standard 20-30% compression ratio ensures sufficient sealing force while preventing excessive compression that leads to premature aging or tearing of the rubber. |
|
Focus on Long-Term Performance: Compression Set |
We select high-quality rubber compounds with low compression set (such as EPDM ≤ 20% @ 70h/100°C). This means that the sealing ring can maintain good resilience after long-term pressure, ensuring that the sealing performance of the product does not degrade after several years of use, meeting the requirements of long service life design. |
|
Quantifiable Sealing Performance Testing |
In addition to standard IP testing, we can perform more sophisticated helium mass spectrometry leak detection or pressure decay testing, providing specific leakage rate values. This provides crucial quantitative input and verification basis for your high-reliability designs, such as battery pack sealing. |
|
Co-Development for Special Media |
If your application involves special chemicals, fuels, or extreme temperatures, our materials engineers can collaborate with you to develop or match the most suitable sealing solution through sample testing and compound adjustment. |
4.Waterproof nuts Product Specification
|
Specification Item |
Seal Material Options & Key Properties |
Typical Application Scenarios |
|
EPDM |
Temp Range: -40°C ~ +120°C; Excellent Weathering; Resists Hot Water/Steam; Resists Polar Chemicals |
Outdoor Electronics, PV, Charging Piles, Appliances – Contact with rainwater, condensation, detergents. |
|
Silicone |
Temp Range: -60°C ~ +200°C; Resists Thermal Cycling; Physiologically Inert; Ozone Resistant |
Automotive Engine Bay (non-direct oil immersion), Food/Medical Equipment, High-Temp Lighting – Wide temperature range, requires good elasticity retention. |
|
FKM/Viton |
Temp Range: -20°C ~ +200°C; Resists Fuel, Lubricants, Many Chemicals; Heat Resistant |
Automotive Engine/Transmission Areas, Chemical Equipment – Direct contact with fuel, engine oil, or chemical solvents. |
|
NBR |
Temp Range: -30°C ~ +100°C; Resists Petroleum-Based Oils/Greases; Cost-Effective |
General Industrial Equipment, Hydraulic System Areas, Fuel Systems (low pressure) – Contact with mineral oils, greases. |
|
Standard Hardness Range |
Shore A 50° ~ 70° |
Softer (50°) is used for rough surface compensation; harder (70°) is used for high sealing pressure requirements. |
|
Key Material Certs |
Options and certificates available for compliance with USP Class VI, FDA, ROHS, REACH, etc. |
Suitable for products with food contact, medical, or environmental compliance requirements. |
5.Waterproof nuts tProduct Application
New Energy Vehicle Powertrain Systems: Battery pack high and low voltage interface cover sealing (FKM/silicone recommended), motor controller housing (EPDM/silicone recommended) to prevent water and dust ingress leading to short circuits or insulation failure.
Outdoor High and Low Temperature Cycling Equipment: Communication base station equipment and solar tracker electrical boxes used in cold or desert regions require sealing materials that do not crack and maintain elasticity under repeated cycling from -40°C to +85°C (silicone recommended).
Industrial Cleaning and Corrosive Environments: Food processing equipment and chemical sensor housings require sealing rings that can withstand high-pressure water washing, steam, or specific chemical sprays (EPDM or FKM should be selected based on the specific medium).
Long-Term Buried or Underwater Equipment: Pipeline monitoring instruments and underwater connector housings require sealing materials with extremely low water absorption and long-term compression relaxation rates to ensure decades of sealing reliability (special formulation development required).
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
