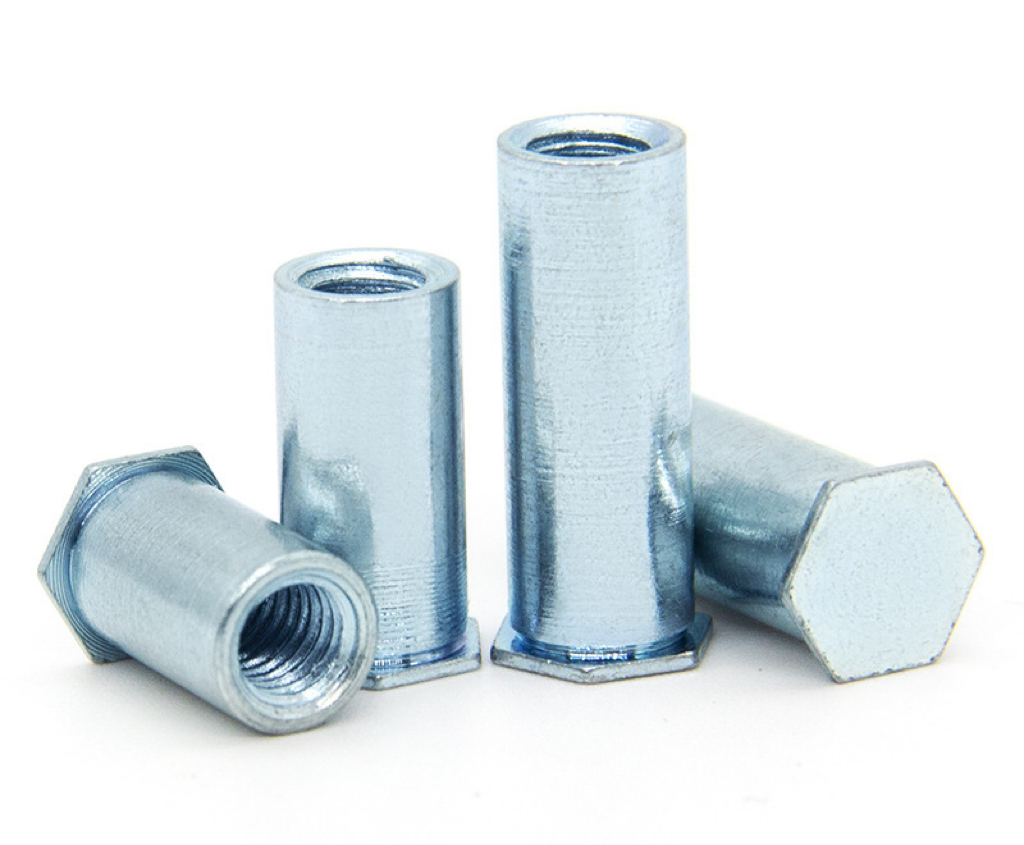

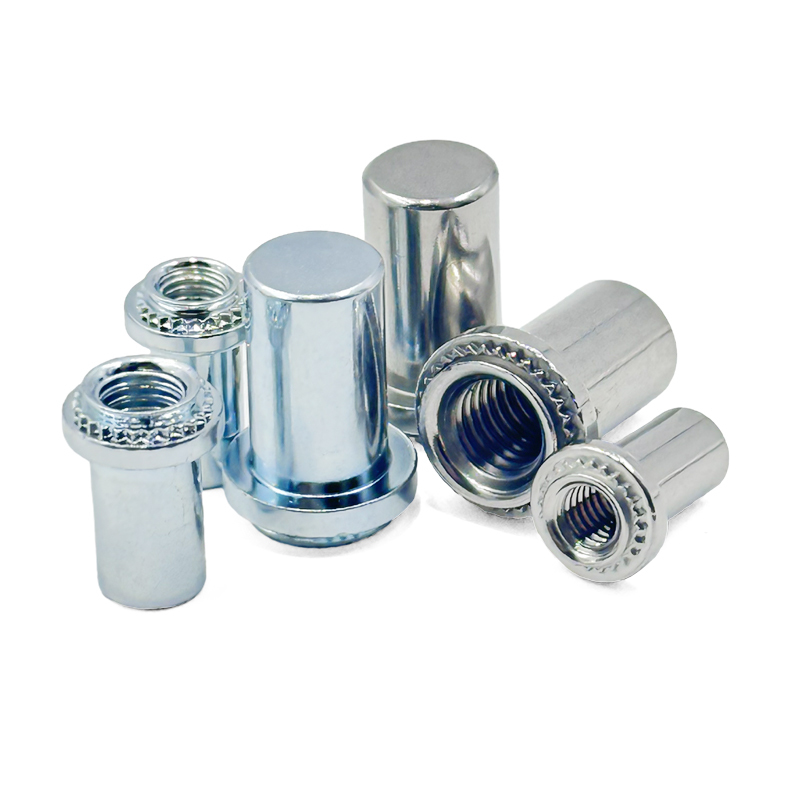

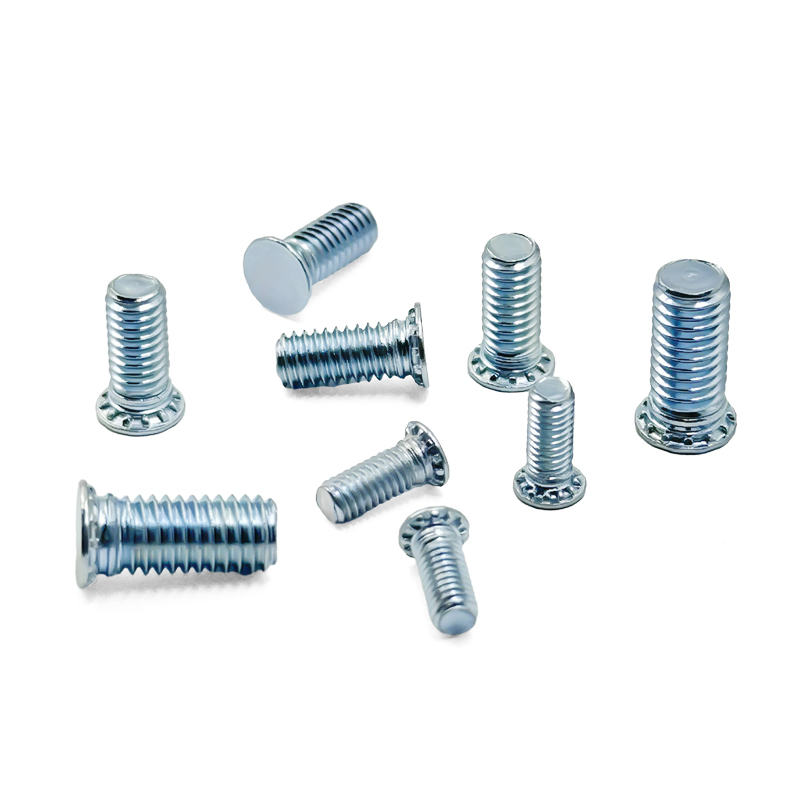

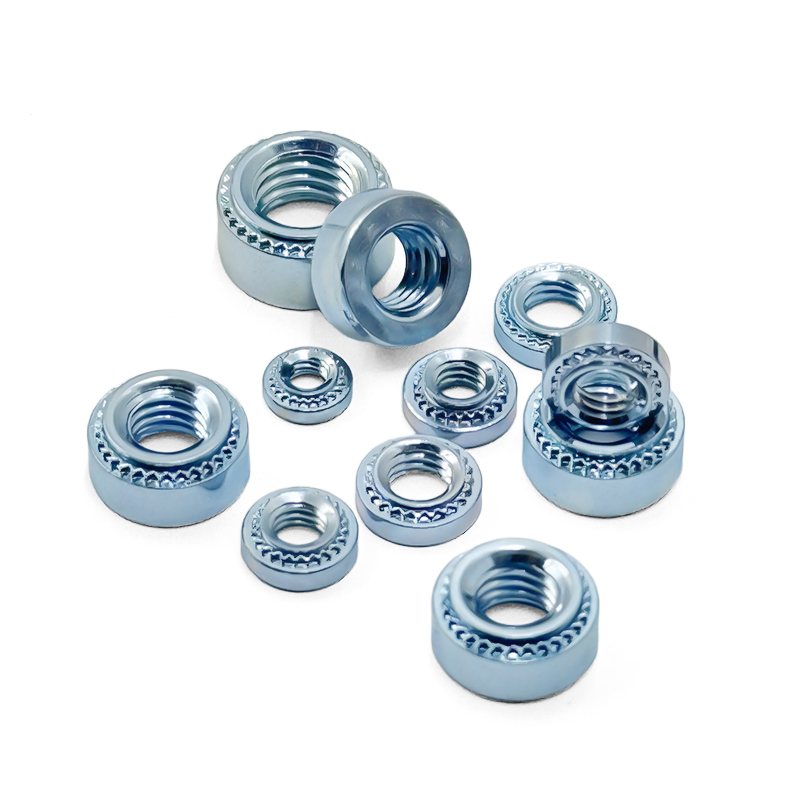

Zinc Plated Self Clinching Fasteners For Sheet Metal Simplifies Assembly
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-003 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.28 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Self Clinching Fasteners / Clinch Nuts/Studs / Non-Standard Fasteners | Main Material | Low Carbon Steel / Stainless Steel / Aluminum |
|---|---|---|---|
| Strength Grade | Low Carbon Steel / Stainless Steel (e.g., A2-70) / Custom | Thread Type | Metric (M2-M12) / Imperial (#2-1/2") / Through-Hole |
| Surface Finish | Zinc Plated / Nickel Plated / Passivated / Dacromet | Application Industry | Enclosures & Cabinets / Automotive Sheet Metal / Electronics & Appliances / Elevators |
| Precision Grade | Standard / Precision (±0.05mm) | Certification | ISO 9001 / IATF 16949 / ROHS |
| Highlight | Zinc Plated Self Clinching Fasteners,Sheet Metal Self Clinching Fasteners,Sheet Metal Non Standard Fasteners |
||
Product Description
Self-Clinching Fasteners Solution | Strong Threaded Points for Sheet Metal, Simplifies Assembly & Automation
1.Self Clinching Fasteners Quick Detail
Tingfeng Hardware provides high-quality self-clinching fasteners (clinch nuts, clinch studs, etc.), specifically designed to create strong, reusable threaded connection points in thin sheet metal. Through a simple clinching process, these fasteners are permanently embedded into the sheet metal, forming a reliable locking ring on the reverse side, providing extremely high push-out and torque resistance. This eliminates the need for welding, spot welding, or using backing nuts, significantly simplifying the assembly process, reducing overall costs, and making them suitable for automated production. We are your ideal partner for improving the efficiency and reliability of your sheet metal structure designs.
2.Self Clinching Fasteners tProduct Description
The core value of self-clinching fasteners lies in directly integrating threaded connection functionality into thin sheet metal structures. We deeply understand the relationship between the yield characteristics of different sheet materials (such as low-carbon steel, stainless steel, and aluminum) and the design of the fastener's locking ring. Our product range covers various types, including floating, fixed, blind hole, and through-hole fasteners, to compensate for assembly tolerances, prevent thread damage, or achieve sealing. Our technical support includes recommendations for the most suitable installation pressure, mold dimensions, and sheet metal pretreatment suggestions, ensuring optimal connection strength and a smooth appearance with every clinch, helping you achieve robust, aesthetically pleasing, and efficient sheet metal product manufacturing.
3.Self Clinching Fasteners Product Features & Advantage
| High Connection Strength & Reliability | After riveting, the fastener and the sheet metal undergo plastic deformation and interlock. The resulting push-out and torque resistance are far superior to those of welded or bonded joints, providing a durable and stable threaded base for your sheet metal structure with excellent vibration resistance. |
| Simplified Assembly & Cost Reduction | Single-sided installation requires no access to the inside of the enclosure or auxiliary tools. Eliminates steps like welding, tapping, and placing loose nuts, significantly increasing assembly speed and reducing labor costs and process complexity. |
| Excellent Appearance & Flushness | After installation, the fastener heads are essentially flush with the surface of the panel, with no protrusions on the back. This provides a clean appearance, facilitates subsequent painting, and does not interfere with the arrangement of internal components or wiring harnesses. |
| Wide Panel Compatibility & Automation-Friendly | Suitable for various metal sheets (steel, aluminum, stainless steel) and a certain range of thicknesses. The standardized riveting process is easily integrated into automated production lines or used with |
4.Self Clinching Fasteners Product Specification
| Specification Item | Detail / Range | Standard / Notes |
| Thread Specification | M2 — M12 (Metric), #2-1/2" (Imperial) | Common range |
| Compatible Panel Thickness | 0.5 mm — 6.0 mm (Steel, model dependent) | Refer to selection guide |
| Installation Hole Diameter | Tight tolerance, typically H12 or H13 | Ensures clinch quality |
| Push-Out Force (Min.) | 200 N — 15,000 N | Spec & panel dependent |
| Torque-Out Force (Min.) | 1 N·m — 30 N·m | Spec & panel dependent |
| Head Style | Flat, Countersunk, Low-Profile, Hex Washer | Meets different appearance needs |
| Installation Pressure | Approx. 10 kN — 80 kN | Must match press tonnage |
| Surface Finish Standard | Zinc Plating (Typically 5-8μm, 72h salt spray) | Thicker coatings available |
5.Self Clinching Fasteners tProduct Application
Our self-clinching fasteners are the preferred solution for joining thin-walled metal structures:
Chassis and Electrical Control Boxes: For quick and clean assembly of PCB brackets, fans, door hinges, and grounding terminals on server racks, network enclosures, and distribution panel boards.
Automotive Body and Interior Sheet Metal: Used for wiring harness fixing points, ECU mounting points, and interior panel clip bases, providing reliable threads without damaging paint or plating.
Household and Commercial Appliances: Washing machine control panels, air conditioner casings, and commercial kitchen equipment, creating robust mounting points on thin sheet metal enclosures to withstand vibrations during daily use.
Elevator Cabs and Escalator Structures: For installing decorative strips, handrail brackets, etc., on elevator wall panels and escalator skirt panels, requiring high safety and aesthetically pleasing installation.
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
