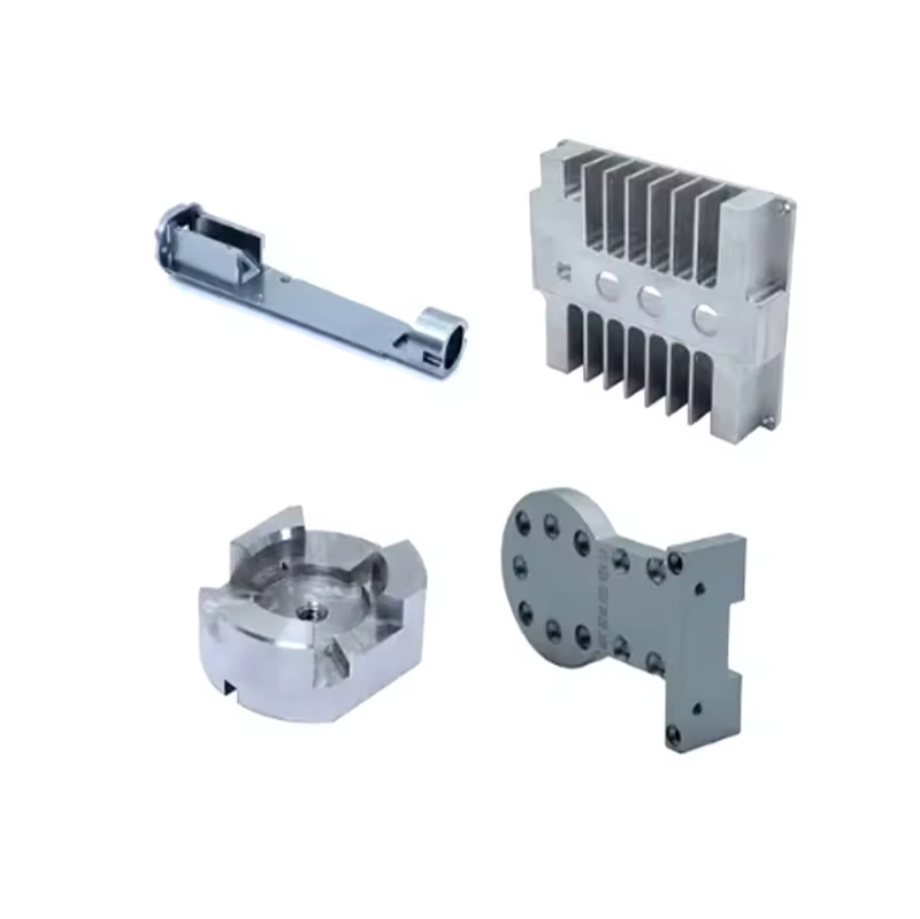

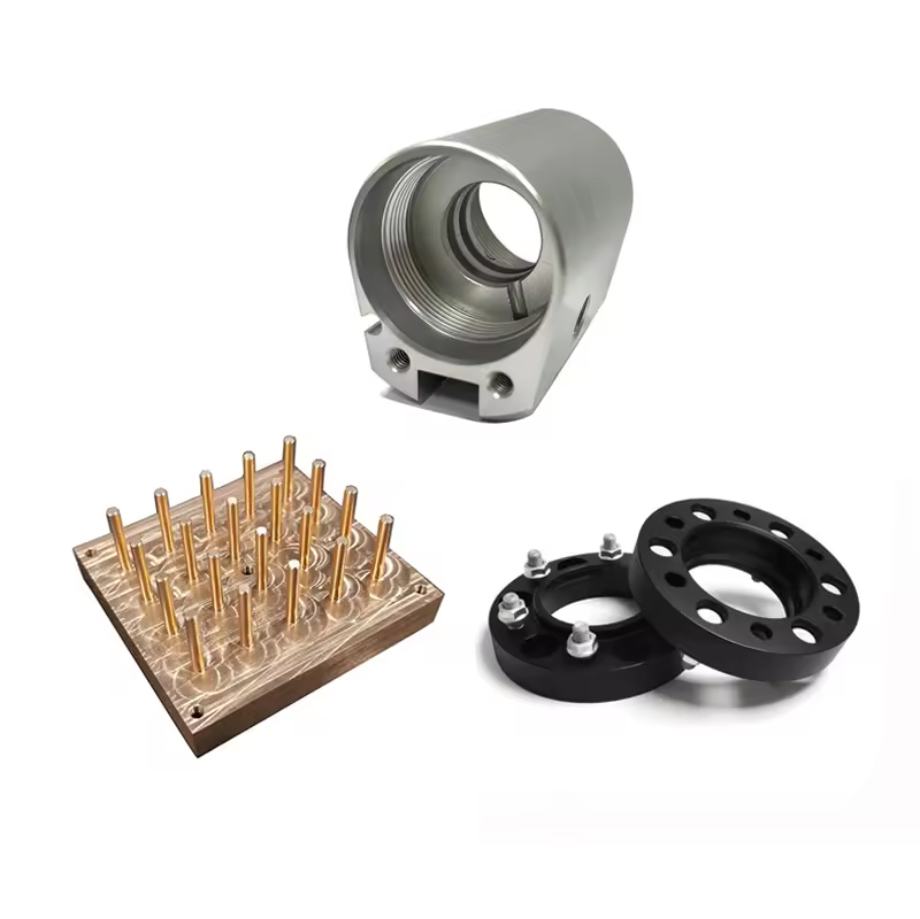

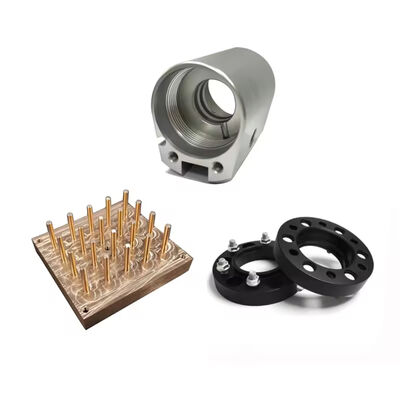

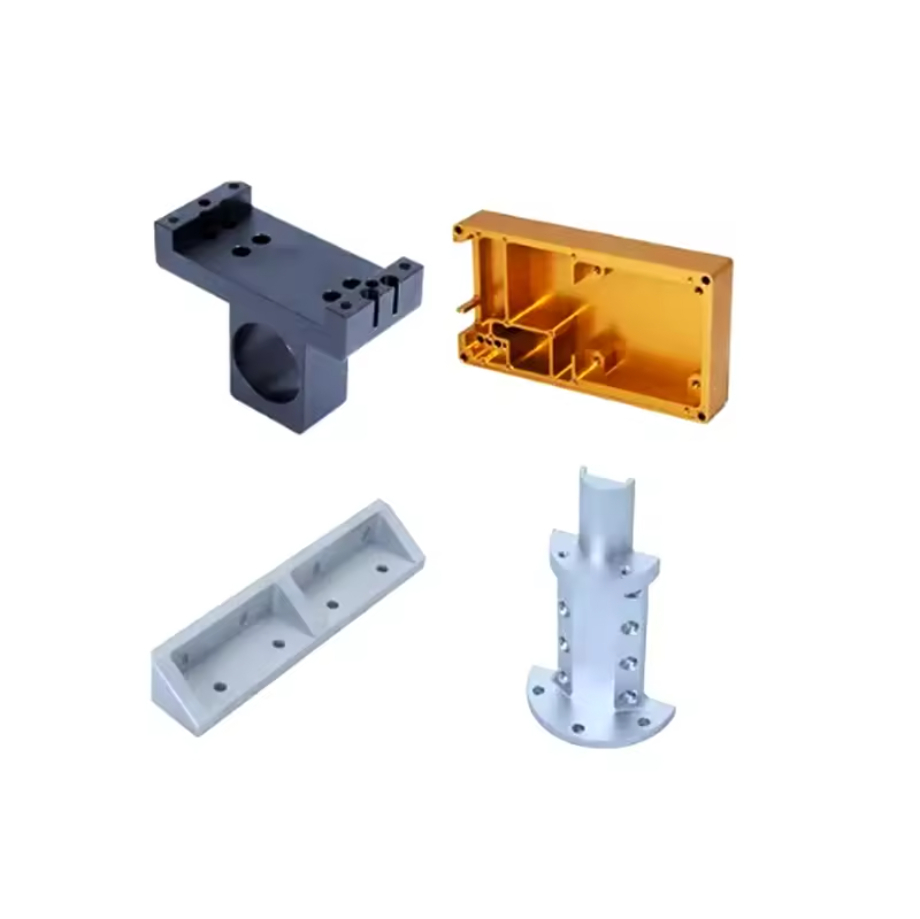

Multi Axis CNC Machining Prototyping High Stability For Automotive Industry
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-004 |
| Minimum Order Quantity | 1 |
| Price | 0.10-0.48USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Advantage | Multi-Part Assembly Prototype / Dynamic Mechanism Verification | Main Material | Aluminum Alloy / Stainless Steel / POM (Acetal) / PEEK |
|---|---|---|---|
| Process | Multi-Axis CNC Milling / Precision CNC Turning / Turn-Mill Compound Machining | Typical Features | Moving Hinges/Gears / Sealed Cavities / Precision Fit Surfaces |
| Surface Finish | Anodizing / Sandblasting / PTFE Coating / Assembly-Grade Lubrication | Verification Purpose | Motion Test / Sealing Test / Life Test / Assembly Test |
| Highlight | Multi Axis cnc machining prototyping,High Stability cnc machining prototyping,Automotive Industry rapid machining services |
||
Product Description
Functional Testing Prototypes with Near-Production Precision & Multi-Axis CNC
1.Rapid Prototype Machining Quick Detail
Beyond appearance, we validate core functionality. We specialize in manufacturing high-fidelity prototypes for rigorous functional testing. Whether it's a mechanical device with kinematic pairs, a fluid component requiring sealing, or a structural component that needs to withstand loads, we utilize multi-axis CNC and mill-turning technologies to create functional prototypes with near-production-ready precision and materials, ready for performance testing.
2.Rapid Prototype Machining Product Description
True innovation often lies in complex mechanisms and interactions. We are dedicated to solving the unique challenges of functional prototype manufacturing: How to ensure the clearance and tolerance fit of moving parts? How to achieve the machining and surface treatment of micro-flow channels? How to simulate the material properties of the final product? By applying mass production-level manufacturing thinking to the prototyping stage, we manufacture not just models, but "pre-production parts" with testing value. This helps you obtain real performance data early in product development, significantly reducing the cost and risk of later engineering changes.
3.Rapid Prototype Machining Product Features & Advantage
|
Feature |
Advantage to You |
|
Dynamic Mechanism & Assembly Prototyping |
We are skilled in machining moving parts such as gears, cams, connecting rods, and hinges that work together, and we can complete the prototype production and pre-assembly of the entire assembly to verify the smoothness of the mechanism's motion and the realization of its functions. |
|
Test-Oriented Process Design |
Considers testing needs during prototype machining, e.g., designing sealing surfaces for pressure test parts, optimizing fillets for fatigue test parts, ensuring contact flatness for thermal test parts, making the prototype inherently suitable for testing. |
|
Functional Application of Special Materials |
Can select materials like PEEK (high-temp, wear-resistant), stainless steel (corrosion-resistant), aluminum (lightweight, conductive) based on test requirements, making prototype test results under specific conditions more meaningful. |
|
Measurable & Adjustable Design |
The prototype is equipped with sensor mounting interfaces, debugging observation windows, or replaceable modules to facilitate connection to testing equipment and parameter debugging, maximizing the value of the prototype in R&D. |
4.Rapid Prototype Machining Product Specification
|
Specification Item |
Detail / Range |
Standard / Notes |
|
Functional Prototype Fit Tolerance |
IT8-IT10 Grade |
Depending on specific fit requirements |
|
Moving Part Clearance Control |
0.02mm – 0.1mm per side |
|
|
Sealing Surface Flatness/Roughness |
≤ 0.01mm / Ra ≤ 1.6μm |
For static sealing |
|
Multi-Part Assembly Prototype Delivery |
Pre-assembly service available |
Optional |
|
Material Performance Simulation Range |
Strength, Stiffness, Thermal Conductivity, Corrosion Resistance |
Achieved through material selection |
|
Prototype with Test Report Option |
Key Dimensional Report / Assembly Report |
|
5.Rapid Prototype Machining Product Application
Robotic Joints & Actuators: Functional and life test prototypes for robot arm links, dexterous hand finger joints, linear module sliders.
Medical Device Drive Mechanisms: Prototypes for core moving parts like surgical instrument transmission boxes, micro-pump rotors/stators, auto-injection device mechanisms.
Novel Automotive Mechanisms: Functional verification samples for electric tailgate hinges, active suspension links, gearshift actuators.
Precision Valves & Pumps: Sealing and flow rate test prototypes for micro-flow valve spools/seats, small diaphragm pump chambers, dispenser rotors.
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
