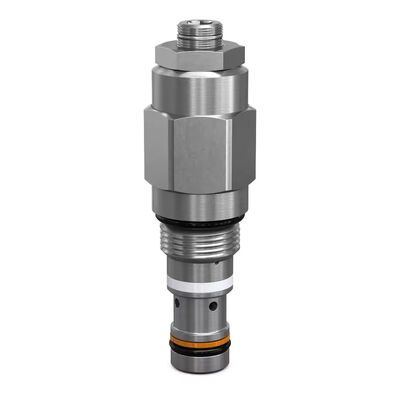

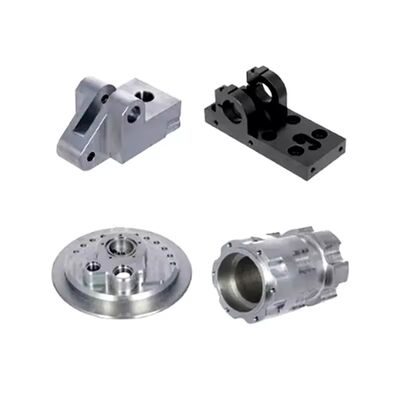

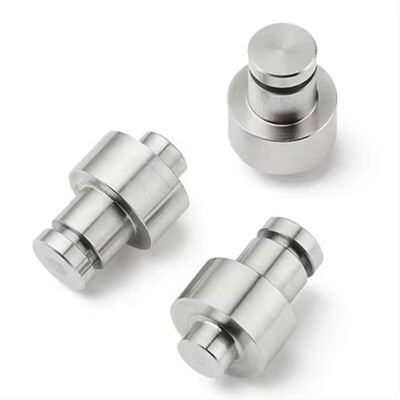

Engineering Collaboration CNC Turned Parts Cnc Prototype Parts For Complex Components
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-002 |
| Minimum Order Quantity | 1 |
| Price | 0.10-0.60USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | CNC Turned Parts | Core Service | Free DFM Analysis / Process Optimization / Cost Assessment |
|---|---|---|---|
| Main Material | Aluminum Alloy / Stainless Steel / Titanium Alloy / Brass / Engineering Plastics (PEEK, UHMW-PE) | Process | CNC Turning / Swiss-Type Machining / Turn-Mill Compound |
| Typical Features | Complex Special Shapes / Precision Threads / Micro-Fluidic Channels / Thin Wall | Application Industry | Application Industry Medical Devices / Semiconductor Equipment / High-End Research Instruments / Automotive R&D |
| Highlight | Engineering Collaboration CNC Turned Parts,Complex Components CNC Turned Parts,Engineering Collaboration cnc prototype parts |
||
Product Description
Engineering-Collaboration CNC Turning Service for Complex & Tight-Tolerance Components
1.CNC Turned Parts Quick Detail
Tingfeng Hardware is committed to being your extended engineering and manufacturing department. For CNC turned parts, we offer far more than just manufacturing to print. Our engineering team proactively engages with your design at the early stages, providing professional analysis from perspectives of Design for Manufacturability (DFM), cost-effectiveness, and performance optimization. We excel at transforming complex design concepts into efficient, reliable, and economical turning process solutions, helping you avoid potential manufacturing pitfalls and enhance your product's overall competitiveness. Partnering with us means gaining a deeply collaborative technical ally.
2.CNC Turned Parts Product Description
When facing challenging turned part designs, an engineering partner well-versed in manufacturing processes is crucial. We specialize in solving manufacturing challenges for parts involving special materials, unconventional structures, tight tolerances, or specific functional requirements (e.g., fluid sealing, optical alignment, low friction). Through deep collaborative engineering, we can suggest more machinable alternative geometries, optimize tolerances to balance cost and performance, recommend more suitable materials or heat treatment states, and even assist in redesigning parts for better assembly and functionality. Our goal is, through upfront technical dialogue, to make your design not only “manufacturable” but “optimally manufacturable.”
3. CNC Turned Parts Product Features & Advantage
|
Feature |
Advantage to You |
|
Free In-Depth DFM Analysis Report |
Provides a detailed DFM report during the quotation phase, highlighting potential issues in the design that could increase cost, reduce yield, or delay delivery, along with specific optimization suggestions, controlling project risk and cost at the source. |
|
Function-Oriented Process Innovation |
For specific functional needs (e.g., a particular surface texture for enhanced grip, or internal channels to reduce pressure loss), we can develop customized tool paths, special tooling, or compound machining processes to achieve them. |
|
Cost-Driven Design Optimization |
Our engineers excel at analyzing drawings to identify and propose simplifications for non-critical features with overly tight tolerances or unnecessary complexity, potentially reducing your manufacturing cost by 15-30% while fully meeting functional requirements. |
|
Full-Cycle Support from Prototype to Volume |
We are involved throughout the entire process—from initial prototype validation (solving trial production issues), to process stabilization for small batches, and finally to efficiency improvement for mass production—ensuring continuous transfer of knowledge and accelerating project maturity. |
|
Joint Problem-Solving Capability |
When encountering persistent process issues like chatter marks, deformation, or subpar surface quality, our engineering team collaborates with you to analyze the root cause and implement solutions through parameter adjustment, custom fixture design, or process sequence improvement. |
4.CNC Turned Parts Product Specification
|
Specification Item |
Detail / Capability |
Notes |
|
DFM Analysis Response Time |
24-48 Hours (For complex parts) |
Based on received 3D data |
|
Typical Cost Optimization Potential |
10% - 30% |
Achieved through design optimization |
|
Complex Profile Turning Capability |
Supports 4-Axis Simultaneous Turn-Mill Machining |
For eccentric, contoured features |
|
Micro-Feature Machining |
Min. Turning Bore Φ0.5mm, Min. Milling Slot Width 0.3mm |
Swiss-Type Lathe |
|
Material & Process Database |
Covers 200+ Material-Tool-Parameter Combinations |
For rapid process planning & simulation |
|
Engineering Collaboration Platform |
Supports Online Drawing Markup & Video Conference Review |
Facilitates real-time communication |
|
Prototype Iteration Support |
Provides Process Improvement Records & Version Comparison Analysis |
Accelerates design finalization |
|
Technical Documentation Delivery |
Includes Optimized Process Drawings & Machining Key Points |
As knowledge deliverables |
5.CNC Turned Parts Product Application
Our collaborative engineering value is particularly highlighted in the following complex scenarios:
Innovative Medical Devices: Assisting in optimizing the design of integrated turned parts with multi-lumens and threaded interfaces for minimally invasive surgical instruments, simplifying structures and reducing part count while ensuring biocompatibility and sealing.
Precision Fluid Control Systems: Providing DFM analysis for valve spools and fittings in chromatographs and mass spectrometers, optimizing the geometry and surface roughness of internal micro-channels to improve fluid dynamic performance and reduce dead volume.
Customized Research Instruments: Collaborating with research teams to translate unique concepts for experimental setups (e.g., special sample holders, optical mounts) into precision-turnable parts, solving manufacturability issues for "one-off or very low volume" production.
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
