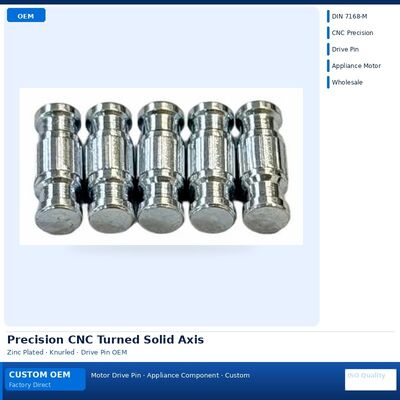

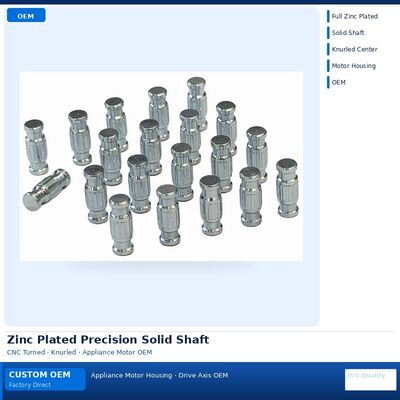

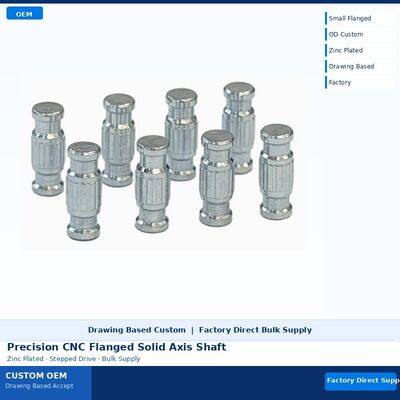

Precision Shoulder Shaft CNC Machined Zinc Plated Carbon Steel Flanged Custom OEM Bulk For Agricultural Equipment Motor
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.01-9.99 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Product Type | Shoulder Shaft / Flanged Shoulder Shaft / Transmission Shaft / Agricultural Shaft | Main Material | Carbon Steel / Alloy Steel / Stainless Steel / Quenched And Tempered Steel |
|---|---|---|---|
| Surface Finish | Zinc Plated / Eco-Friendly Zinc Plated / Chrome Plated / Black Oxide / Phosphating | Process Type | CNC Turning / Step Forming / Flange Forming / Keyway Machining / Drilling / Tapping |
| Diameter Range | 10mm - 50mm / 50mm - 80mm | Length Range | 50mm - 150mm / 150mm - 300mm |
| Number Of Steps | 2 Steps / 3 Steps / 4+ Steps | Tolerance Grade | Precision (±0.025mm) / High-Precision (±0.015mm) |
| Highlight | Precision Shoulder Shaft CNC Machined,Flanged Carbon Steel Shaft,OEM Agricultural Equipment Shaft |
||
Product Description
Precision Shoulder Shaft for Agricultural Equipment Motors
Tingfeng Hardware specializes in precision shoulder shafts manufactured with CNC machining and zinc plated carbon steel material, specifically designed for agricultural equipment motors. Our shoulder shafts feature precise multi-step structures and flange designs, meeting complex transmission and positioning requirements of agricultural machinery.
Product Overview
Precision shoulder shafts are critical transmission and positioning components in agricultural equipment motors and agricultural machinery. Our products achieve multi-step one-pass forming through precision CNC turning, ensuring accurate control of each step diameter and coaxiality. Flange structure provides precise axial positioning reference, simplifying assembly with gears, pulleys, or couplings.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| Multi-step one-pass forming | Step coaxiality ≤0.02mm, ensuring transmission system rotational accuracy |
| Flange axial positioning | Provides accurate axial positioning reference, simplifying assembly process |
| Zinc plating corrosion protection | Salt spray test 48 hours, suitable for agricultural machinery outdoor operation environments |
| High-strength carbon steel | Tensile strength ≥600MPa, meeting agricultural machinery power transmission needs |
| OEM bulk supply | Stable monthly capacity, supporting seasonal bulk purchasing needs of agricultural industry |
Product Specifications
| Specification Item | Detail / Range | Tolerance / Standard |
|---|---|---|
| Material | Carbon Steel / Alloy Steel / Quenched and Tempered Steel | Tensile ≥600MPa |
| Surface Finish | Zinc Plated / Chrome Plated / Black Oxide | Salt spray ≥48 hours |
| Step Diameter Tolerance | ±0.015mm -- ±0.03mm | Per drawing |
| Step Length Tolerance | ±0.05mm -- ±0.15mm | Per drawing |
| Coaxiality | ≤ 0.02mm | Geometric tolerance |
| Flange Perpendicularity | ≤ 0.025mm | Face runout guaranteed |
| Surface Roughness | Ra 0.8μm -- 3.2μm | Process dependent |
| Hardness | HRC 20 -- HRC 50 | Material and heat treatment dependent |
Applications
Agricultural Equipment Applications:
- Tractor motor transmission shoulder shafts
- Harvester drive shoulder shafts
- Seeder transmission shafts
- Rotary tiller power take-off shafts
- Agricultural pump drive shafts
- Sprayer transmission shafts
- Agricultural motor output shoulder shafts
- Generator transmission shoulder shafts
- Fan motor shoulder shafts
- Compressor transmission shafts
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
