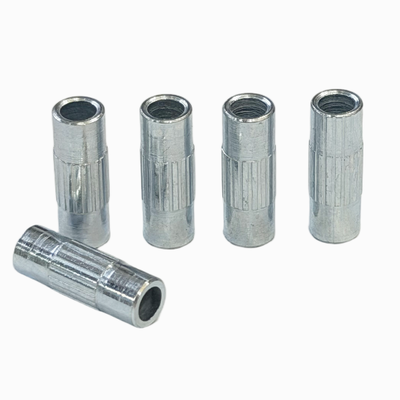

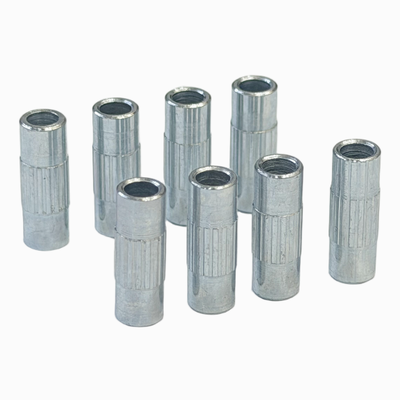

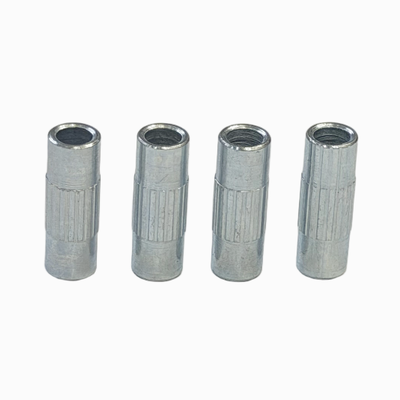

Custom Shoulder Pin CNC Machined Zinc Coated Steel Stepped Flanged Drawing Based Bulk For Gearbox Consumer Electronics
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.01-9.99 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Product Type | Shoulder Pin / Flanged Shoulder Pin / Locating Shoulder Pin / Stop Pin | Main Material | Carbon Steel / Alloy Steel / Stainless Steel / Free-Cutting Steel |
|---|---|---|---|
| Surface Finish | Zinc Plated / Eco-Friendly Zinc Plated / Chrome Plated / Black Oxide / Phosphating | Process Type | CNC Turning / Step Forming / Flange Forming / Drilling / Tapping / Chamfering |
| Diameter Range | 5mm - 40mm / 40mm - 60mm | Length Range | 20mm - 80mm / 80mm - 150mm |
| Number Of Steps | 2 Steps / 3 Steps / 4+ Steps | Drawing Format | PDF / STEP / DWG/DXF / IGES |
| Highlight | Custom CNC machined shoulder pin,Zinc coated steel flanged pin,Precision stepped pin for gearbox |
||
Product Description
Custom Shoulder Pin CNC Machined Zinc Coated Steel Stepped Flanged Drawing Based Bulk
Tingfeng Hardware specializes in custom shoulder pins, manufactured with CNC machining and zinc coated steel material, specifically designed for gearbox and consumer electronics industries. Our shoulder pins feature precise multi-step structures and flange designs, meeting complex axial positioning and stop requirements. Zinc plating surface treatment provides good corrosion protection. Custom per drawing supported, one-stop service from sample validation to mass production, 15 years of precision manufacturing experience ensures product quality.
Product Features & Advantages
| Feature | Advantage to You |
|---|---|
| Multi-step one-pass forming | Coaxiality ≤0.015mm, consistent step coaxiality, reducing cumulative error |
| Flange axial positioning | Provides accurate axial positioning reference, simplifying assembly process |
| Precision dimension control | Critical dimension tolerance ±0.01-0.02mm, ensuring precise assembly with mating parts |
| Zinc plating corrosion protection | Salt spray test 48 hours, suitable for consumer electronics and automotive electronics environments |
| Custom per drawing | Supports 2-step, 3-step, and multi-step structure designs, meeting complex application needs |
Product Specifications
| Specification Item | Detail / Range | Tolerance / Standard |
|---|---|---|
| Material | Carbon Steel / Alloy Steel / Stainless Steel | Per drawing |
| Surface Finish | Zinc Plated / Chrome Plated / Black Oxide | Salt spray ≥48 hours |
| Step Diameter Tolerance | ±0.01mm -- ±0.03mm | Per drawing |
| Step Length Tolerance | ±0.05mm -- ±0.10mm | Per drawing |
| Coaxiality | ≤ 0.015mm | Geometric tolerance |
| Flange Perpendicularity | ≤ 0.02mm | Face runout guaranteed |
| Surface Roughness | Ra 0.8μm -- 3.2μm | Process dependent |
| Hardness | HRC 20 -- HRC 50 | Material and heat treatment dependent |
Product Applications
Gearbox & Transmission Applications:
- Automotive transmission locating shoulder pins
- Industrial gearbox stop shoulder pins
- Reducer locating pins
- Transmission box connecting shoulder pins
- Precision transmission module shoulder pins
- Micro gearbox locating pins
- Camera focusing mechanism shoulder pins
- Precision instrument stop pins
- Automotive electronic actuator step locating pins
