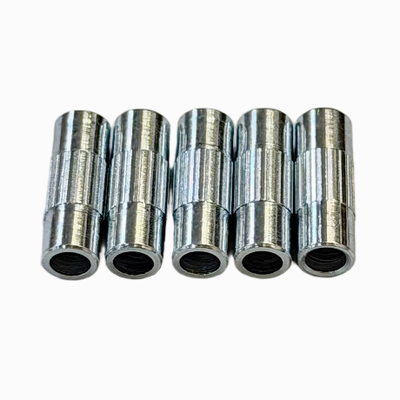

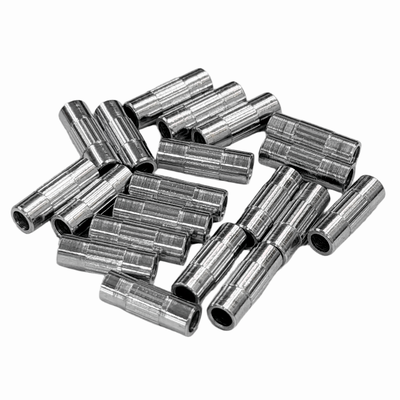

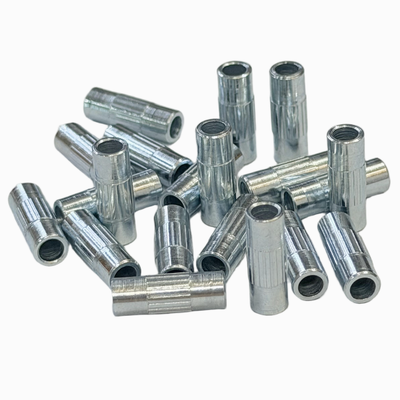

Custom Drawing CNC Turned Zinc Plated Solid Shaft Flanged Knurled Steel Small Diameter OEM Bulk For Home Appliance Motor
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.01-9.99 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Product Type | Solid Drive Shaft / Flanged Shaft / Knurled Shaft / Motor Shaft / Transmission Shaft | Main Material | Carbon Steel / Alloy Steel / Stainless Steel / Free-Cutting Steel |
|---|---|---|---|
| Surface Finish | Zinc Plated / Eco-Friendly Zinc Plated / Nickel Plated / Black Oxide / Natural | Process Type | CNC Turning / Knurling / Flange Forming / Facing / Chamfering / Drilling |
| Diameter Range | 3mm - 20mm / 20mm - 40mm / 40mm - 60mm | Length Range | 10mm - 100mm / 100mm - 200mm / 200mm - 500mm |
| Tolerance Grade | Economical (±0.05mm) / Precision (±0.02mm) / High-Precision (±0.01mm) | Application Industry | Home Appliance Motors / Power Tools / Office Equipment / Smart Home / Automotive Electronics |
| Highlight | CNC turned zinc plated solid shaft,flanged knurled steel motor shaft,small diameter OEM bulk shaft |
||
Product Description
Custom CNC Turned Zinc Plated Solid Shafts
Tingfeng Hardware specializes in custom drawing CNC turned zinc plated solid shafts for home appliance motors and various transmission systems. Using high-quality carbon steel or alloy steel, we manufacture high-precision, high-reliability shaft components through precision CNC turning, knurling, and flange forming processes.
Product Overview
Solid transmission shafts are core components for home appliance motors and rotating equipment. Our products achieve strict dimensional tolerance control through precision CNC turning; knurling process provides reliable press-fit or gripping surfaces; flange structure design ensures axial positioning and torque transmission stability.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| Precision CNC turning | Diameter tolerance controlled within ±0.01mm, ensuring precise assembly with bearings and gears |
| Knurling process | Provides reliable gripping surface or press-fit surface, easy installation and removal |
| One-piece flange forming | Accurate axial positioning, stable torque transmission, no additional locating parts needed |
| Zinc plating surface treatment | Salt spray test over 48 hours, suitable for humid working environments |
| High-volume production capacity | Stable monthly capacity, supports continuous bulk supply for home appliance industry |
Product Specifications
| Specification Item | Detail / Range | Tolerance / Standard |
|---|---|---|
| Material | Carbon Steel / Alloy Steel / Stainless Steel | Per customer requirement |
| Surface Finish | Zinc Plated / Nickel Plated / Black Oxide | Salt spray ≥48 hours |
| Diameter Tolerance | ±0.01mm -- ±0.05mm | Per drawing |
| Length Tolerance | ±0.05mm -- ±0.15mm | Per drawing |
| Knurling Specification | Straight / Diamond / Custom | DIN 82 |
| Flange Perpendicularity | ≤ 0.02mm | Face runout guaranteed |
| Surface Roughness | Ra 0.8μm -- 3.2μm | Process dependent |
| Hardness Range | HRC 20 -- HRC 55 | Material and heat treatment dependent |
Applications
Home Appliance Motor Applications:
- Washing machine motor transmission shafts
- Refrigerator compressor shafts
- Vacuum cleaner motor shafts
- Air conditioning fan motor shafts
- Kitchen appliance motor shafts (mixers, juicers, blenders)
- Smart home motor shafts (robot vacuum drive shafts, smart curtain motor shafts)
Other Applications:
- Power tool transmission shafts
- Office equipment spindles
- Automotive electronic actuator shafts
Frequently Asked Questions
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
