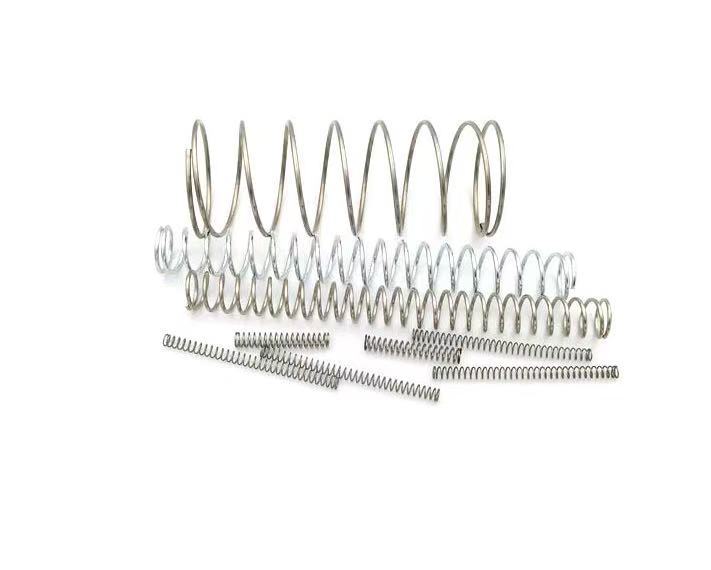

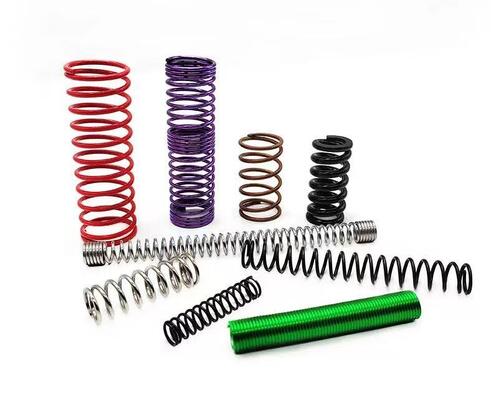

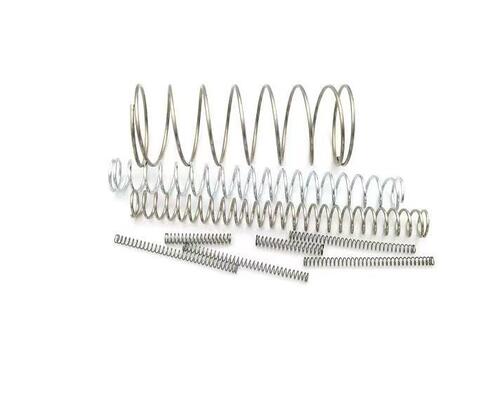

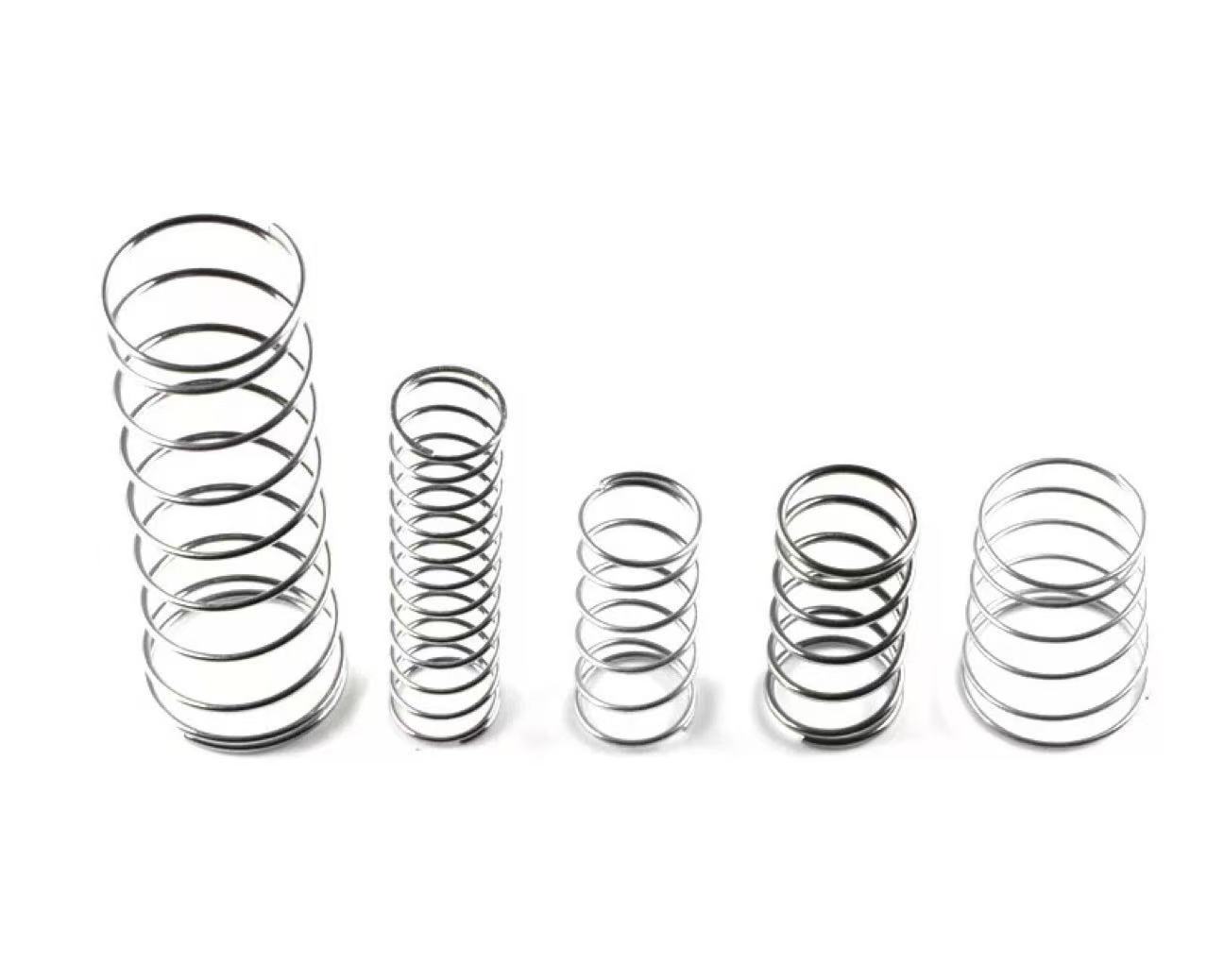

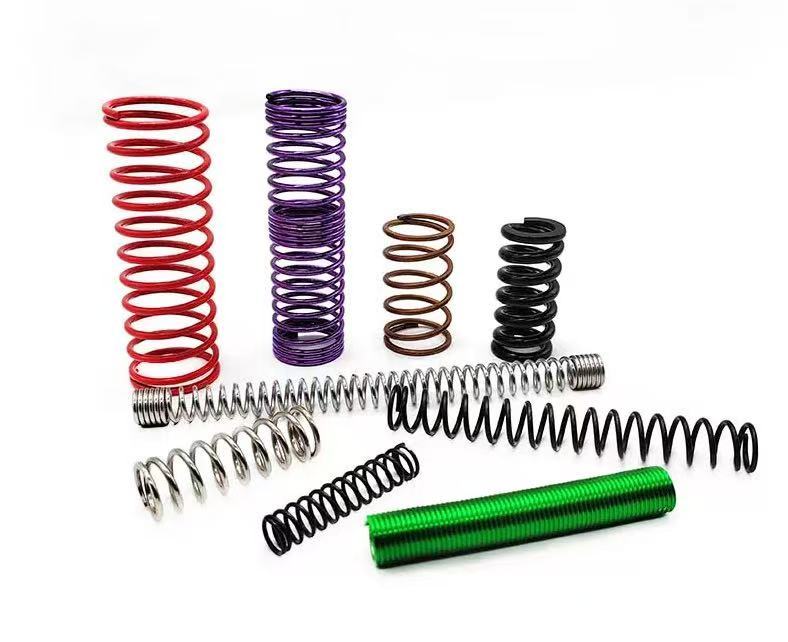

Micro Miniature Compression Spring 2mm OD for PCB Switches Custom Rate
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-0015 |
| Minimum Order Quantity | 1 |
| Price | 0.2-0.52/pcs |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Min Wire Diameter | 0.08mm | Min Outer Diameter | 1.2mm |
|---|---|---|---|
| Min Free Length | 1.5mm | Material | Music Wire / SUS304 |
| Spring Rate | 0.01 – 5 N/mm | End Type | Closed Not Ground (recommended For Micro) |
| Inspection | 100% CCD Optical Sorting | Packaging | Tape & Reel (SMT Compatible) / Anti-static Tube |
| Highlight | Micro Miniature Compression Spring,2mm OD PCB Switch Spring,Custom Rate Compression Spring |
||
Product Description
Micro Miniature Compression Spring 2mm OD for PCB Switches Custom Rate
We specialize in manufacturing ultra-precise miniature compression springs with outer diameters from 1.2-4mm and wire diameters from 0.08-0.3mm. Our custom spring solutions are ideal for PCB switches, tactile feedback mechanisms, battery contacts, and micro valves in compact electronic devices.
Compression Spring Overview
For compact devices like smartphones, TWS earbuds, and smartwatches, dimensional tolerance and force consistency of micro springs directly determine button feel and electrical contact reliability. Our Japanese high-precision computer-controlled spring formers with fine wire tension control achieve ±0.01mm OD repeatability for exceptional consistency.
We employ 100% CCD vision inspection specifically for micro springs, automatically measuring OD, free length, and coil count while rejecting any tangled or deformed springs. For automated placement, we offer tape-and-reel packaging directly compatible with SMT lines. Our engineering team provides design optimization to achieve target force within limited space constraints.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| Ultra-fine wire capability (0.08mm) | Manufacture springs as small as 1.2mm OD for the tightest spaces |
| 100% CCD Optical Sorting | Ensures every spring is dimensionally correct and tangle-free, preventing assembly line jams |
| Tape & Reel Packaging (SMT Compatible) | Directly feed into pick-and-place machines, boosting production efficiency |
| Custom Spring Rate | Precisely calculate wire diameter and coil count per your button force or contact pressure requirement |
| 48hr Rapid Sampling | Micro springs also benefit from fast sampling to accelerate prototype validation |
Technical Specifications
| Specification Item | Detail / Capability | Notes / Description |
|---|---|---|
| Min Wire Diameter | 0.08mm (±0.003mm) | Music wire or SUS304 |
| Min Outer Diameter | 1.2mm (±0.02mm) | 1.5mm+ recommended for stable production |
| Min Free Length | 1.5mm (±0.1mm) | Very short springs require evaluation |
| Spring Rate | 0.01 - 5 N/mm | Calculated per load |
| Recommended Coils | 3 - 15 | Fewer coils may cause unstable rate |
| End Type | Closed not ground (std) / Closed & ground (opt) | Micro springs generally not ground |
| Packaging | Tape & reel / Anti-static tube / Bulk | Reel orientation customizable |
| Sample Lead Time | 48-72 hours | Depending on complexity |
Applications
- Smartphones & Wearables: Tactile feedback springs for side keys and power buttons; battery contact springs for earbud charging cases
- Micro Switches & Relays: Return springs for tactile switches, toggle switches, and micro signal relays
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
