SUS316 Stainless Steel Compression Spring High Corrosion Resistance Custom
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-0014 |
| Minimum Order Quantity | 1 |
| Price | 0.2-0.52/pcs |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Material | SUS316 (A4) Stainless Steel | Corrosion Resistance | Chloride-resistant, Acid/alkali Resistant, Seawater Resistant |
|---|---|---|---|
| Wire Diameter | 0.2mm – 2.5mm | Outer Diameter | 2mm – 25mm |
| Spring Rate | 0.1 – 350 N/mm Custom | End Type | Closed & Ground / Closed Not Ground |
| Surface Finish | Passivated / Electropolished | Application | Marine Equipment, Chemical Instruments, Long-term Outdoor Exposure |
| Highlight | SUS316 stainless steel compression spring,high corrosion resistance compression spring,custom stainless steel compression spring |
||
Product Description

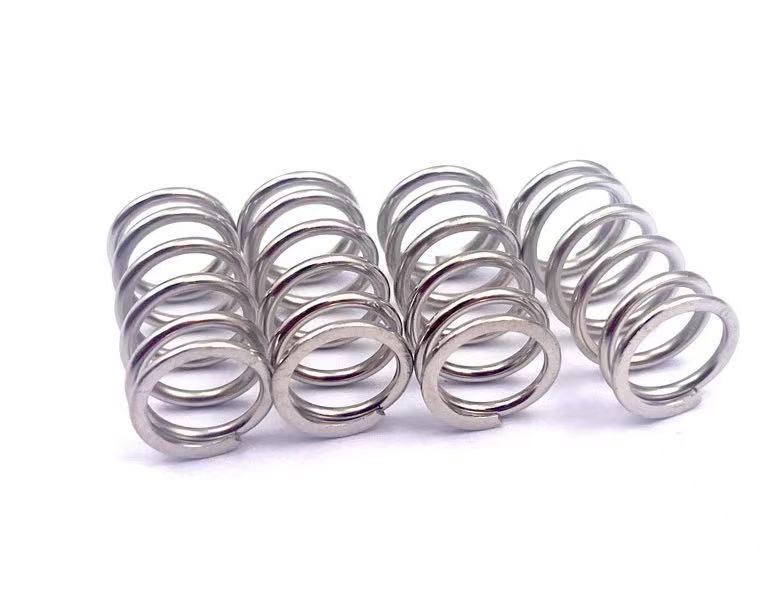

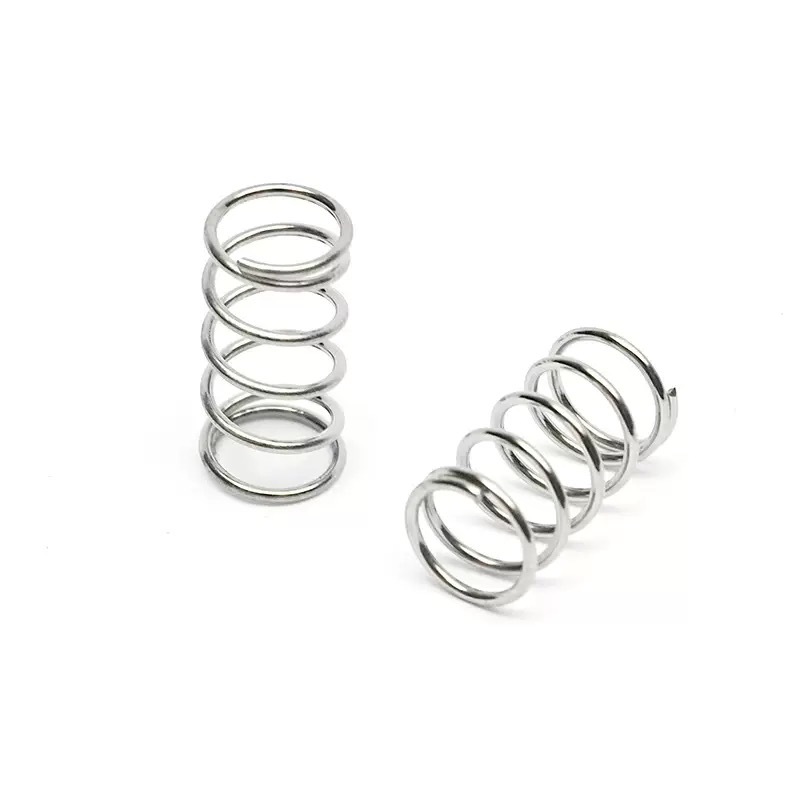

SUS316 Stainless Steel Compression Spring
High corrosion resistance custom compression springs designed for demanding marine, chemical, and industrial applications.
Product Overview
Marine or chemical environments demand exceptional corrosion resistance where 304 stainless steel may be insufficient. Our SUS316 stainless steel compression springs incorporate molybdenum, significantly enhancing chloride corrosion resistance. Custom wire diameter, OD, spring rate with 48-hour sampling. Ideal for marine equipment, seawater pumps, chemical analyzers, and long-term outdoor exposed components.
Technical Description
In coastal areas, chemical plants, or medical sterilization equipment, spring corrosion is a critical problem. SUS316 stainless steel, with 2-3% molybdenum addition, offers far superior resistance to pitting and crevice corrosion in chloride environments compared to 304. We provide custom SUS316 compression springs in full specifications, particularly suitable for seawater-contacted components, equipment cleaned with chlorinated disinfectants, and acidic gas environments.
We tightly control post-coiling heat treatment and passivation to ensure material corrosion resistance is preserved. For applications requiring ultra-high cleanliness (e.g., bioreactors, pharmaceutical equipment), we offer electropolished surfaces achieving Ra≤0.2µm, greatly reducing bacterial colonization sites. All 316 springs come with material certificates, chemical composition reports, and salt spray test data (available upon request). With 15 years of export experience serving 30+ countries, our quality withstands the harshest environments.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| SUS316 (Molybdenum-bearing) | 2-3x better chloride corrosion resistance than 304; ideal for marine, chemical, and disinfection environments. |
| Electropolished Surface (Optional) | Ultra-smooth finish reduces biofilm adhesion; meets pharmaceutical and food aseptic requirements. |
| Custom Size & Rate | Designed precisely to your requirements—no standard part limitations. |
| Small Batch & Rapid Sample | 48hr sampling, small batch from 100 pieces, no tooling fee. |
| Full Traceable Documentation | Material certs, heat treatment records, salt spray reports—meet stringent audits. |
Product Specifications
| Specification Item | Detail / Capability | Notes / Description |
|---|---|---|
| Material Grade | SUS316 (A4) | ASTM A313 compliant |
| Wire Diameter | 0.2mm - 2.5mm | ±0.005mm |
| Outer Diameter | 2mm - 25mm | ±0.02mm |
| Free Length | 3mm - 100mm | Custom per drawing |
| Spring Rate | 0.1 - 350 N/mm | Calculated per load |
| Surface Finish | Passivated / Electropolished | Electropolish Ra≤0.2µm |
| Salt Spray Test | ≥200hr NSS | ASTM B117 |
| Operating Temp | -40°C - 300°C | Intermittent |
Applications
- Marine & Shipboard Equipment: Springs for marine valves, seawater pumps, deck hardware, and underwater sensors requiring long-term seawater corrosion resistance.
- Chemical & Pharmaceutical Equipment: Seals for reactors, injection valves for analyzers, and autoclave door seals—resisting chemicals and high-temperature steam.
- Outdoor Renewable Energy Facilities: Tracking system springs for solar PV, pitch control springs for wind turbines, and locking springs for charging stations located in coastal or high-humidity areas.
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
