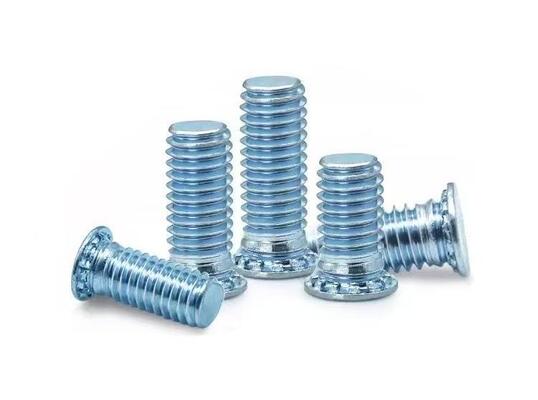

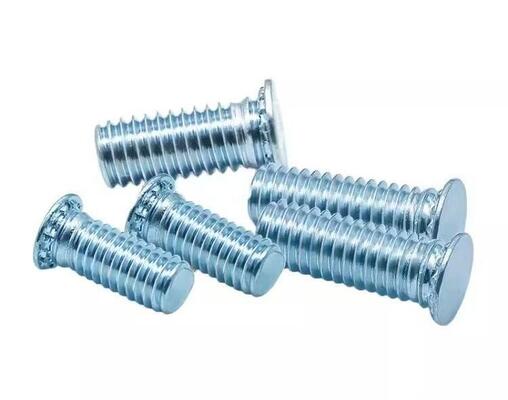

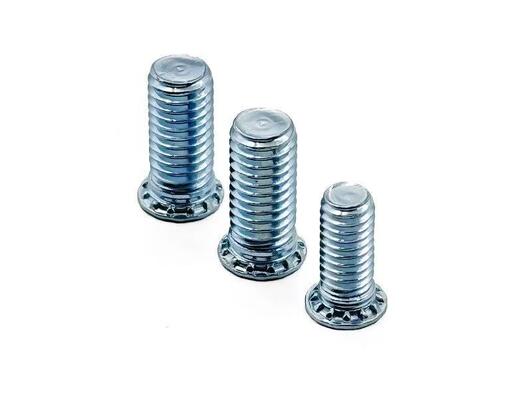

High-Difficulty Custom Engineered Clinch Screws | Joint Design, CAE Simulation & Prototype Validation for Extreme Challenges
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-003 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.28 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Positioning | High-Difficulty / High-Performance Press Screws | Core Competency | Co-Design To Solve Extreme Connection Challenges |
|---|---|---|---|
| Technical Expertise | Miniaturization, Composite Locking Structures, Multi-Function Integration | Performance Goals | Ultra-High Vibration Resistance, Airtight/Watertight Sealing, Electrical/Thermal Conduction |
| Development Process | From CAE Simulation To Prototype Testing & Validation | Collaboration Depth | Co-Development With Customer Structural/CAE Engineers |
| Typical Challenges | Ultra-Thin Sheet Applications, Highly Corrosive Environments, Dissimilar Material Joining | Value Delivery | Optimized Custom Connection Engineering Solutions |
| Highlight | Customizable self clinching fasteners,sheet metal self clinching fasteners,corrosion resistance non standard fasteners |
||
Product Description
High-Difficulty Custom Engineered Clinch Screws | Joint Design, CAE Simulation & Prototype Validation for Extreme Challenges
1.Press-fit screws Quick Detail
When standard press-fit screws fail to meet your stringent requirements for space, strength, sealing, or special functions, our custom engineering services for complex structures offer solutions that go beyond the norm. We specialize in addressing industry challenges such as miniaturized precision assembly, absolute anti-loosening in high-vibration environments, and the need for integrated sealing or conductivity. By combining advanced simulation analysis, materials science, and multi-axis precision machining technologies, we can design and manufacture micro-screws for microelectromechanical systems (MEMS), special screws with both self-locking and sealing functions, or smart screws with integrated heat dissipation paths, providing a robust and intelligent connection core for your cutting-edge products.
2.Press-fit screws tProduct Description
We faced the toughest challenges in engineering connections: how to achieve reusable, non-stripping threads on a 0.6mm thick aluminum plate? How to maintain preload on screws under long-term high-frequency vibration? How to make a screw hole both waterproof and conductive? Answering these questions required deep interdisciplinary collaboration and pushing the limits of manufacturing. Our engineering team acted as "connection problem-solving experts." We started with load analysis, material interface behavior, and failure mechanisms, using finite element analysis (FEA) to optimize stress distribution and predict fatigue life. In manufacturing, we employed special forming, composite machining, and precision heat treatment technologies to transform complex designs into highly reliable physical products. What we delivered was a "performance contract" validated both digitally and physically.
3.Press-fit screws Features & Advantage
|
Feature |
Advantage to You |
|
Simulation-Driven Co-Design & Performance Prediction |
Our engineers use CAE tools to jointly iterate and optimize designs with your team in a virtual environment. We can simulate the pressing process, analyze pull-out and torque-out performance, and evaluate sealing effectiveness, thereby mitigating risks at the design stage and significantly saving time and money on physical trial-and-error. |
|
Precision Manufacturing Expertise for Micro & Special Composite Structures |
We specialize in machining miniature press-fit screws with diameters less than M2 and complex ring grooves or tooth profiles, as well as composite structural parts that integrate non-standard heads, special drives, sealing ring grooves, and other features. Our precision control can reach ±0.02mm, meeting the most demanding assembly and functional requirements. |
|
Active Anti-Vibration & Sealing Design for Extreme Conditions |
Beyond standard ring grooves, we can design screw structures with multiple deformation locking zones, built-in elastic elements, or pre-applied high-performance sealant to proactively address vibration loosening and media leakage issues, providing environmental adaptability and long-term reliability far exceeding that of general-purpose products. |
|
Integrated Function Innovation Solutions |
We can design screws as "multi-functional interfaces," such as integrating conductive rings for low-resistance grounding or designing special heads for enhanced heat dissipation. This integrated design simplifies your system architecture, reduces the number of parts, and improves overall performance and reliability. |
|
Full-Process Rigorous Project Management from Concept to Mass Production |
For high-complexity custom projects, we implement a phase-gate review system, defining deliverables at each stage (e.g., design review reports, simulation data, prototype test reports), ensuring clear technical paths, controlled quality, and on-schedule progression to stable mass production. |
4.Press-fit screws Product Specification
|
Specification Item |
Detail / Capability |
Notes / Description |
|
Achievable Micro Specifications |
Threads from M1.2, minimum shank diameter Φ1.0mm, overall length from 4mm |
Suitable for precision electronics, micro sensors, etc. |
|
Complex Composite Structure Capability |
Can achieve three-stage locking serrations, eccentric clinching rings, heads integrating sealing/conductive elements, blind hole designs, etc. |
Requires detailed application context for feasibility assessment |
|
Advanced Materials & Special Treatments |
Optional high-strength alloy steel, precipitation-hardening stainless steel (17-4PH), titanium alloy, corrosion-resistant special alloys, etc., with corresponding heat treatments and surface engineering |
Used in high-end fields such as aerospace, military, and special equipment. |
|
Simulation Analysis & Validation Support |
Can provide FEA reports for pressing forming, structural strength analysis reports, sealing performance simulation reports, thermo-mechanical coupling analysis reports, etc. |
Serves as technical deliverables during co-development |
|
Performance Testing & Certification |
Can conduct vibration, salt spray, airtightness, conductivity, fatigue life tests, etc., per customer standards or international/industry standards |
Authoritative third-party test reports optional |
|
Intellectual Property (IP) Protection Agreement |
Strictly enforce confidentiality agreements (NDAs) and clearly define the ownership, usage rights, and subsequent development rights of the joint development results. |
Safeguarding the safety and rational use of innovative achievements |
|
Minimum Custom Order Quantity |
Comprehensive evaluation based on design complexity and development investment, typically supports orders starting from several thousand pieces |
To ensure a balance between project technical feasibility and economics |
5.Press-fit screws tProduct Application
Our high-performance engineering customization solutions are key enablers for cutting-edge equipment and highly reliable systems:
Aerospace and Satellite Payloads: Custom-designed lightweight, high-tightness, and extreme-temperature-resistant screws for satellite solar panel hinges and airborne black box mounting brackets, meeting aerospace-grade reliability and lightweight requirements.
High-End Medical Implantable Devices and Equipment: Custom-designed biocompatible, dimensionally precise, and repeatedly sterilizable miniature screws for wearable medical monitoring devices and minimally invasive surgical tools, crucial for patient safety and equipment precision.
High Power Density Power Electronics: Custom-designed composite functional screws integrating efficient heat dissipation teeth and low inductance current paths for IGBT power modules and new energy vehicle motor controllers, solving thermal management and electromagnetic interference issues at high switching frequencies.
Precision Scientific Instruments and Vacuum Equipment: Custom-designed non-magnetic, low-outgas, and extremely high dimensional stability adjustment and fixing screws for mass spectrometer ion sources and semiconductor vacuum chamber internal components, key to maintaining the ultra-high precision and stability of instruments.
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
