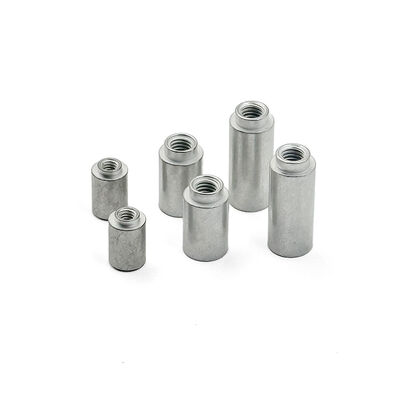

High Precision Surface Mount Nuts Polishing Corrosion Proof Anti Oxidation
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-002 |
| Minimum Order Quantity | 1 |
| Price | 0.08-0.12USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Process Optimization Focus | Solder Yield & Process Stability | Core Solution | Advanced Pad & Stencil Design Support |
|---|---|---|---|
| Material Science Application | Anti-Oxidation Solder Surface Treatment | Key Process Control | Precise Solder Paste Volume Control, Reflow Profile Optimization |
| Target Outcome | Achieving Zero Or Very Low Defect Soldering Rates | Auxiliary Tool | Provides DFM (Design For Manufacturability) Checklist |
| Application Scenario | High-Volume, High-Mix Production Lines | Quality Commitment | Solder First-Pass Yield Assurance |
| Highlight | High Precision surface mount nuts,Corrosion Proof surface mount nuts,Anti Oxidation non standard fasteners |
||
Product Description
SMT Nut Soldering Solutions | Process Support for Higher First-Pass Yield
1.SMT NutsQuick Detail
We understand that the value of a superior surface mount nut ultimately lies in a stable, high-quality soldering process. Therefore, we offer not only the product, but also comprehensive support for optimizing the soldering process. From providing proven pad patterns and stencil aperture suggestions for your designs, to recommending the most compatible solder paste types and reflow profiles, we are committed to helping your production teams minimize soldering defects such as cold solder joints, bridging, or misalignment, thereby ensuring high first-pass yields and production cycle times.
2.SMT NutsProduct Description
SMD nut soldering involves a complex interaction between metal, solder, PCB, and heat at the microscopic level. We focus on the scientific and engineering details of this interaction. Our products are specially designed with features such as a soldering surface with controllable wetting, a bottom geometry that facilitates venting and reduces solder balls, and a structure that optimizes thermal mass distribution. Furthermore, we have accumulated a wealth of process window data, which can provide you with specific process parameter guidance and even assist in production line process validation. Our goal is to make SMD nut soldering simple, reliable, and predictable, making it the least worrisome part of your SMT production line.
3.SMT NutsProduct Features & Advantage
|
Feature |
Advantage to You |
|
Verified Land Pattern Library |
We provide optimized pad designs (Gerber files) for each standard nut, validated through extensive production testing. You can use or refer to these designs directly, eliminating the risk and time cost of experimentation. |
|
Targeted Stencil Aperture Solutions |
Provide custom stencil thickness and aperture shape/size recommendations based on the nut's solder area and thermal mass, ensuring precise solder paste deposition and avoiding insufficient solder or paste bleeding. |
|
Surface Technology for Enhanced Solder Reliability |
Employ plating with stronger oxidation resistance or special flux compatibility treatments, extending shelf solderability and promoting good wetting during reflow to form bright, robust solder joints. |
|
Data-Based Reflow Profile Guidance |
We provide recommended reflow temperature profiles for solder pastes with different alloy compositions (such as SAC305 and SAC307) to help you quickly set process parameters and shorten production line commissioning time. |
|
Comprehensive DFM Analysis & Support |
During your design phase, we can conduct manufacturability analysis on the placement of nuts on the PCB, the spacing between nuts and surrounding components, and the thermal impact, to prevent potential soldering problems in advance. |
4.SMT Nuts.Product Specification
|
Specification Item |
Detail / Capability |
Notes / Description |
|
Land Pattern File Format |
Gerber, DXF, PDF |
Easy integration into your PCB design files |
|
Recommended Stencil Thickness Range |
Typically 0.1mm - 0.15mm (4-6 mils) |
Specific depends on nut size and pad design |
|
Solder Paste Type Compatibility |
Widely compatible with mainstream lead-free (SAC series) and leaded pastes |
Compatibility test reports available |
|
Solderability Test Standard |
Passes wetting balance test per J-STD-002 or equivalent |
Ensures solderability after长期 storage |
|
Reflow Peak Temperature Tolerance |
Withstands peak temperatures up to 265°C (per lead-free requirements) |
|
|
Process Window Evaluation Data |
Can provide recommended windows for key process parameters (e.g., ramp rate, time above liquidus) |
Helps you optimize process stability |
|
Rapid Response to Production Issues |
Establishes process support channel to assist in analyzing soldering anomalies in production |
Provides solution suggestions |
5.SMT NutsProduct Application
Process-optimized surface mount nut services are particularly suitable for fields with extreme demands for production efficiency and yield:
Consumer Electronics Mass Manufacturing: For mass-produced products such as smartphones and tablets, even a small improvement in soldering yield translates into significant cost savings and quality benefits.
Automotive Electronics Tier 1 Supplier Production Lines: Used in automotive controller production lines with extremely high requirements for process stability and zero defects, requiring suppliers to provide in-depth process support and data.
Contract Manufacturing Services (EMS): Serving multi-variety, small-batch EMS production lines, requiring component suppliers to provide rapid and accurate process implementation support to shorten changeover time and ensure the quality of products for different customers.
High-Reliability Aerospace Electronics Manufacturing: Even in small-batch production, stringent standards for soldering reliability are required, necessitating comprehensive process documentation, data support, and traceability assurance.
sked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
