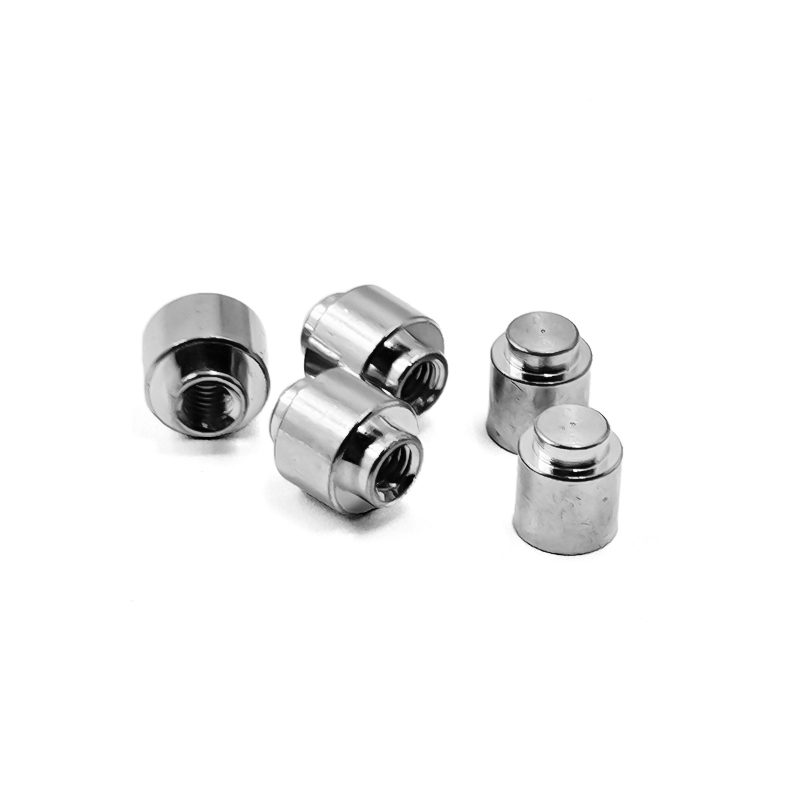

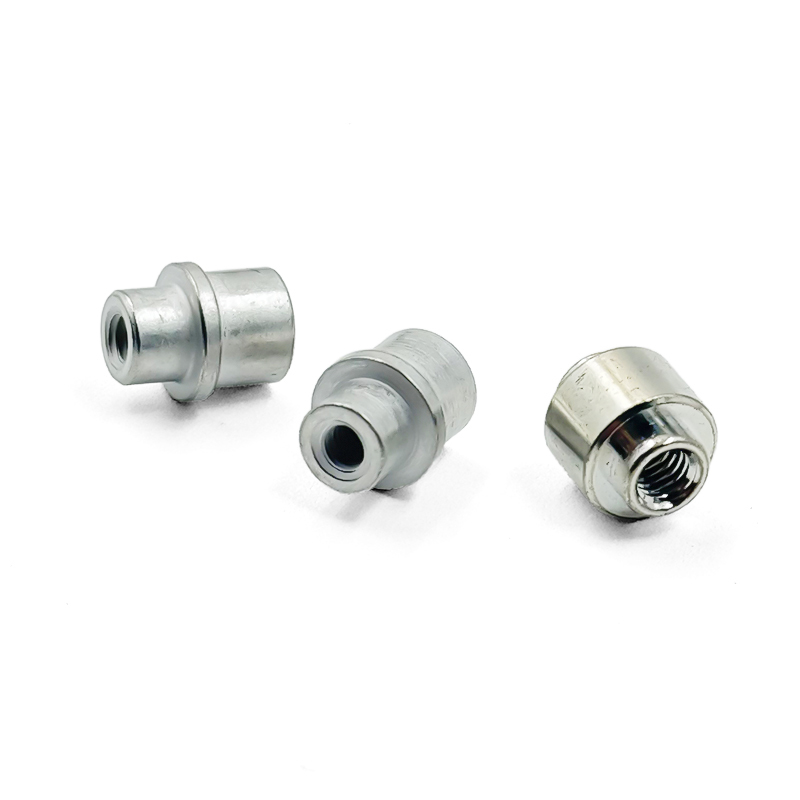

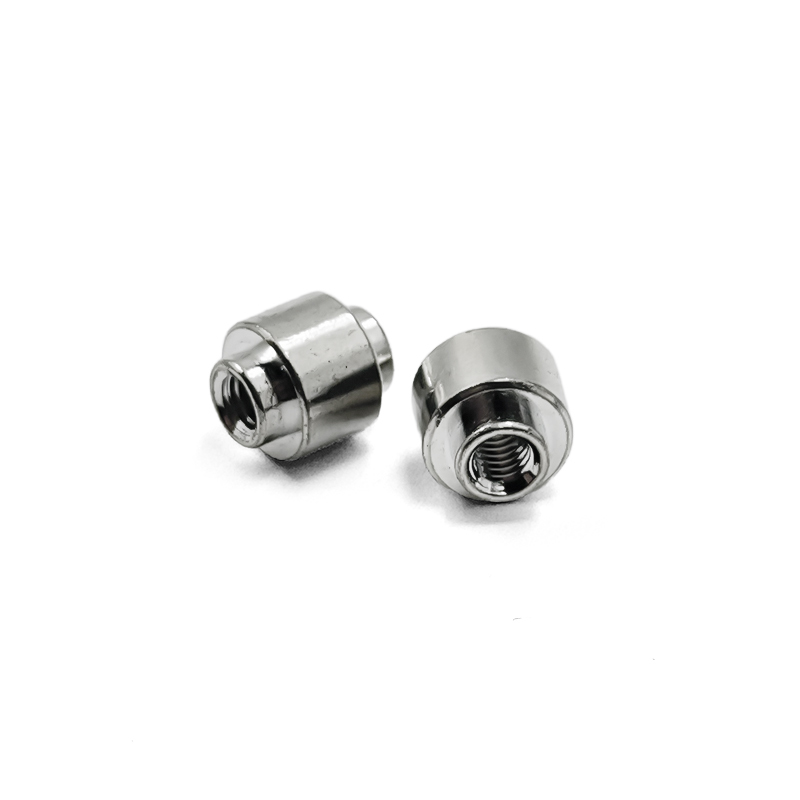

Customization SMT Fastener Integrated Electrical Thermal Bridge Solutions
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-002 |
| Minimum Order Quantity | 1 |
| Price | 0.08-0.12USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Series | High Current / High Thermal Conductivity SMT Nuts | Core Function | Efficient Electrical/Thermal Conduction Path |
|---|---|---|---|
| Preferred Material | High-Conductivity Copper Alloy (e.g., C11000), Aluminum Silicon Alloy | Key Plating | Heavy Silver Plating, Tin Plating, Selective Plating |
| Design Feature | Large Solder Area, Optimized Thermal Path | Primary Use | Power Module Heat Dissipation, PCB Grounding/Bussing |
| Performance Metric | Low Contact Resistance, High Thermal Conductivity | Special Requirement | Can Integrate Insulating Washer Design |
| Highlight | Customization SMT Fastener,Integrated SMT Fastener,Customization Sheet Metal Nut |
||
Product Description
Power & Thermal SMT Nuts | Integrated Electrical-Thermal Bridge Solutions
1.SMT NutsQuick Detail
When your application requires not just mechanical connection but also involves high current transmission or efficient heat dissipation, our functional SMT nuts provide an integrated solution. Manufactured from highly conductive/thermally conductive materials (e.g., copper, aluminum) and featuring large-area solder designs, they can establish a low-resistance, efficient electrical or thermal bridge on the PCB. This simplifies traditional designs that require extra bus bars or thermal pads, achieving a dual enhancement of performance and reliability within a compact space.
2.SMT NutsProduct Description
In modern high-power-density electronic devices, thermal management and power integrity are core challenges. Our high-current/high-thermal-conductivity patch nuts are designed to address these issues. They cleverly transform a standardized threaded connector into a multi-functional platform. Through its metal body, current can be distributed more evenly and with lower loss; heat can be conducted more directly from the heat-generating chip (via the connecting screw and nut) to the heatsink or underlying PCB copper foil. We work closely with our customers to optimize the nut's material, shape, and solder interface based on specific current requirements, thermal dissipation, and space constraints, making it an efficient "hub" in your power circuits or cooling systems.
3.SMT NutsProduct Features & Advantage
|
Feature |
Advantage to You |
|
Excellent Electrical & Thermal Conductivity |
Use of pure copper or high-conductivity aluminum alloys significantly reduces connection resistance and thermal resistance, improving system efficiency, helping cool power devices, and extending lifespan. |
|
Maximized Solder Interface & Current Path |
Designed with wide solder wings or large bottom areas, providing greater solder contact area, increasing current-carrying capacity, and reducing current density for higher reliability. |
|
Simplified System Structure & Assembly |
One nut simultaneously achieves mechanical fixation, electrical connection (grounding/power), and thermal conduction, reducing part count and simplifying BOM and assembly steps. |
|
Optimized CTE Matching & Stress Management |
Based on the CTE of the PCB and heat dissipation material, a suitable nut material (such as aluminum matching aluminum substrate) can be selected to reduce thermal cycling stress and improve long-term reliability. |
|
Flexible Integrated Design Options |
Can provide versions with insulating coating or integrated ceramic washers, enabling efficient heat conduction with electrical isolation, meeting insulation requirements of complex systems. |
4.SMT Nuts.Product Specification
|
Specification Item |
Detail / Capability |
Notes / Description |
|
Applicable Thread Sizes |
M3, M4, M5 and larger |
Suitable for higher current/power scenarios |
|
Body Material Conductivity |
Copper >58 MS/m, Aluminum alloys vary by grade |
Material conductivity data provided |
|
Thermal Conductivity Range |
Copper ~400 W/(m·K), Aluminum alloys ~120-220 W/(m·K) |
Material thermal conductivity data provided |
|
Current Carrying Capacity Assessment |
Can provide typical current rating (Amperes) evaluation based on design |
Influenced by soldering, PCB design, etc. |
|
Solder Thermal Mass Consideration |
Provides optimized reflow profile suggestions for large-area soldering |
Ensures proper soldering without damaging PCB/components |
|
Insulated Version Options |
Options like overall/local anodizing, insulating coating |
Breakdown voltage customizable per requirement |
|
Custom Design Support |
Supports non-standard form factor design based on heatsink shape or current path. |
Specific application scenarios and requirements needed |
5.SMT NutsProduct Application
Functional surface mount nuts are invaluable assets in power electronics and thermal management systems:
Electric Vehicle Control Systems: Used for connecting and conducting heat between the IGBT module heat sink and the PCB in the motor controller (MCU), enabling low-inductance, high-efficiency power circuits and heat dissipation.
Server and Data Center Power Supplies:Serving as a grounding and heat dissipation connection point for the DC-DC converter module in server power units (PSUs), facilitating high-current transfer and heat dissipation.
Renewable Energy Inverters: Used for heat sink mounting on photovoltaic/energy storage inverter power boards, while also providing a stable grounding path to handle current and heat at high switching frequencies.
High-Power LED Lighting:** Serving as a fastener for the heat sink substrate on LED driver boards, ensuring both secure mounting and efficient heat transfer from the LED chip to the heat sink.
sked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
