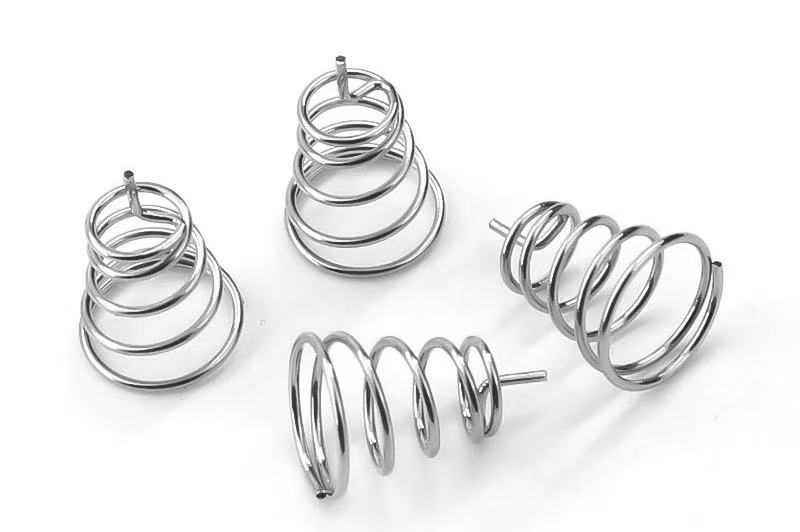

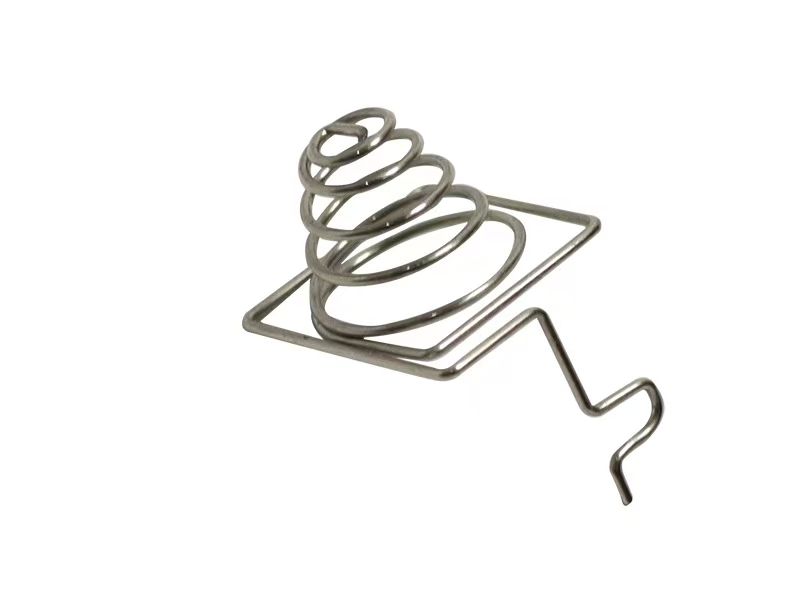

High Conductivity Battery Contact Spring With Plated Bronze For Stable Current Transmission
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-002 |
| Minimum Order Quantity | 1 |
| Price | 0.03-0.08USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | ,T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Battery Spring/Contact | Main Material | Stainless Steel / Piano Wire / Nickel-plated Steel / Phosphor Bronze / Beryllium Copper / Custom Alloys |
|---|---|---|---|
| Wire/Strip Thickness | 0.1-0.3mm / 0.3-0.5mm / 0.5-0.8mm / 0.8-1.2mm | Function Type | Positive Terminal Spring / Negative Terminal Spring / Side Contact / Custom Structure |
| Surface Finish | Bright Nickel / Matte Nickel / Gold Plating / Tin Plating / Passivation | Electrical Requirement | Low Contact Resistance / High Spring Force / Anti-Arcing |
| Application Industry | Consumer Electronics / Medical Electronics / Wearables / Power Tools | Certification | ROHS / REACH / Halogen-Free |
| Highlight | High Conductivity Battery Contact Spring,Plated Bronze Battery Contact Spring,High Conductivity battery spring contacts |
||
Product Description
Custom High-Conductivity Battery Springs with Plated Bronze for Low Resistance & Stable Current Transmission
1.Battery Spring Quick Detail
Tingfeng Hardware specializes in the precision manufacturing of high-reliability battery contact springs. We deeply understand the importance of battery connectors for stable power supply and device safety, offering full-range processing capabilities from Φ0.1mm ultra-fine wire to 1.2mm strip. We not only manufacture springs but also provide solutions to ensure excellent electrical contact performance, including material selection, plating optimization, and spring force design. With 15 years of experience, an IATF/ISO dual-certified system, and rapid mold response, we promise 48-hour functional sample delivery and 72-hour trial production start-up, serving as your reliable partner for battery connections in products like consumer electronics and wearables.
2.Battery Spring Product Description

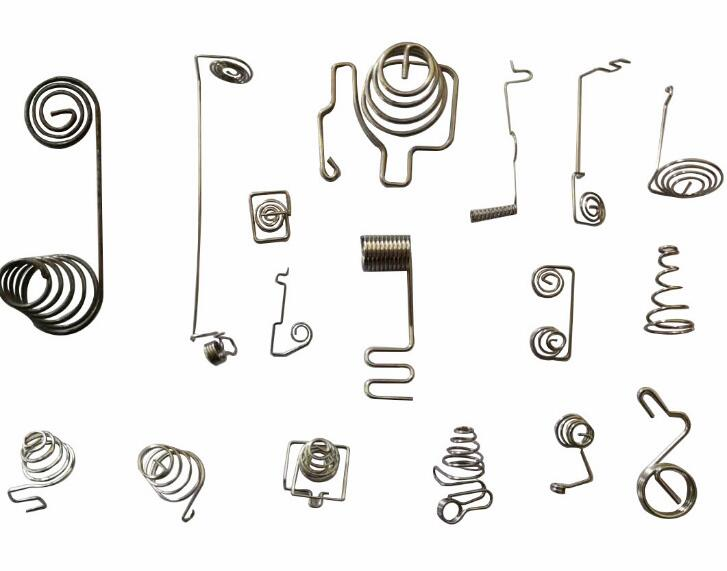

Battery springs are crucial miniature components that ensure stable and safe power supply for electronic devices. As your technology partner, we specialize in integrating electrical requirements (low resistance, corrosion resistance) with mechanical requirements (stable contact force, long cycle life). Our services cover everything from single-point contact coil springs to complex multi-finger contact springs, using materials such as highly conductive phosphor bronze and beryllium copper, or high-elasticity piano wire and stainless steel, complemented by high-performance plating (such as gold and nickel plating). Through the integration of computer-controlled spring machines, precision stamping, and fully automated riveting and assembly, we ensure that every battery spring contact has consistent contact force, extremely low contact resistance, and excellent corrosion resistance, thereby enhancing the reliability and user experience of your end products.
3.Battery Spring Product Features & Advantage
|
Feature |
Advantage to You |
|
Electro-Mechanical Integrated Design |
Engineers concurrently consider conductivity and elasticity, optimizing materials and structure to achieve the best balance between low resistance and high-reliability contact force within limited space. |
|
Precise & Consistent Forming Process |
Employs computerized spring machines and precision stamping to ensure high consistency in contact strip shape, bend angles, and contact point position, guaranteeing battery connection stability. |
|
Targeted Surface Finish Solutions |
Depending on the working environment (such as humidity and sweat), select the appropriate plating (high salt spray nickel, gold, or tin) to significantly improve corrosion resistance and solderability, extending the service life. |
|
Rapid Customization & Validation Cycle |
Supports very low-volume prototyping. Combined with rich experience in battery compartment design, we can quickly provide samples for assembly testing, accelerating your product development cycle. |
4.Battery Spring Product Specification
|
Specification Item |
Detail / Range |
Notes / Standard |
|
Base Material Thickness/Diameter |
0.10 mm — 1.20 mm |
±0.01mm Tolerance |
|
Contact Force (Initial/Working) |
0.1 N — 20 N |
Customizable, ±15% Tolerance |
|
Contact Resistance |
< 20 mΩ (Typical, design & plating dependent) |
Test Report Available |
|
Operating Travel |
0.5 mm — 5.0 mm |
Per Battery Compartment Design |
|
Life Cycles (Insertion/Extraction) |
5,000 — 50,000 cycles |
Depends on Material, Plating & Force |
|
Operating Temperature |
-40°C to +85°C (Extendable) |
Meets Most Electronic Device Requirements |
|
Plating Thickness |
Nickel: 2-10µm; Gold: 0.05-0.5µm (Optional) |
Based on Corrosion Resistance & Cost |
|
Primary Compliance |
ROHS, REACH |
Declaration/Report Available |
5.Battery Spring Product Application
Our precision battery springs and contacts are the "energy lifeline" for various portable and stationary electronic devices, and are widely used in:
Consumer electronics: Battery contacts in smartphones, TWS earphone charging cases, Bluetooth speakers, and remote controls, requiring small size, stable elasticity, and resistance to sweat corrosion.
Medical and health equipment: Hearing aids, blood glucose meters, handheld monitors, and thermometers, demanding high biocompatibility and long-term contact reliability.
Smart wearables and IoT devices: Smartwatches, fitness trackers, smart door locks, and GPS trackers, requiring stable connections under frequent vibration or temperature changes.
Power tools and energy storage equipment: Electric screwdrivers, measuring instruments, and outdoor power supplies, requiring resistance to higher currents and more severe mechanical shocks.
6. Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
