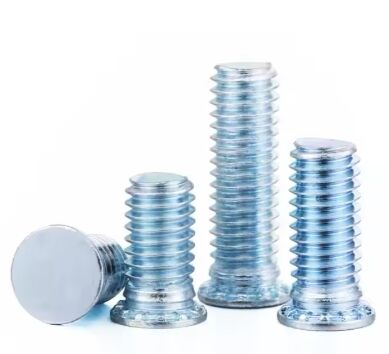

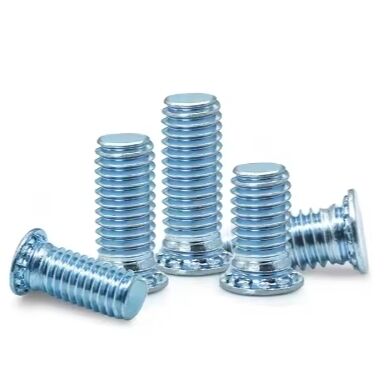

Customizable Self Clinching Fasteners Carbon Steel Stainless Steel Press Fit Screws
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-003 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.28 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Press Screw / Clinch Screw (Self-Clinching Screw) | Installation Process | Pressing / Self-Clinching Forming |
|---|---|---|---|
| Core Commitment | 100% Optically Sorted Before Shipment | Main Material | Carbon Steel, Stainless Steel (SUS304/316) |
| Key Advantage | Strength · Precision · Flexibility · Delivery | Surface Finish | Zinc Plated (Blue/White, Color), Nickel Plated, Dacromet |
| Typical Application | Removable Connection For Thin Sheet, Panel Fixing, Electrical Grounding | Machining Precision | Precision Grade (±0.05mm) |
| Highlight | Customizable press fit screws,Carbon Steel press fit screws,Customizable Self Clinching Fasteners |
||
Product Description
Press-Fit Screws One-Stop Custom Solution | Boundless Custom & Smart Process Match
1.Press-fit screws Quick Detail
We offer a professional one-stop solution for press-fit screws, creating efficient, reliable, and reusable connection points for your sheet metal assemblies. Our core value lies in: ensuring flawless thread and geometry for every screw through CCD optical inspection; supporting "boundless customization" from single prototypes to millions of units; and intelligently matching your order size with a hybrid cold heading and precision machining process to provide the most competitive cost-effectiveness. We are committed to becoming your trusted partner, simplifying your design and procurement processes, and ensuring repeatable and long-term reliable connections.
2.Press-fit screws tProduct Description
Press-fit screws ingeniously combine the locking function of a screw with the permanent fixing properties of press-fitting, providing an elegant solution for thin sheet applications that eliminates the need for welding and pre-installed nuts. We deeply understand the essence of this process—ensuring that the screw's specially designed grooves or teeth plastically deform with the sheet material during pressing, forming a strong mechanical interlock, while maintaining the integrity and cleanliness of the standard thread at the top for repeated assembly. We are not only product manufacturers but also solution providers. From the moment you provide your concept or drawings, our engineering team offers comprehensive support from material selection and process planning to testing standards, ensuring that every screw performs exceptionally well in your application.
3.Press-fit screws Features & Advantage
|
Feature |
Advantage to You |
|
Outstanding “One-Time Press, Lifetime Threads” Performance |
After riveting, the screw and the plate become one, providing extremely high resistance to push-out and torsional force. The standard thread at the top remains intact and can withstand dozens or even hundreds of repeated tightening and loosening, making it an ideal choice for panels, covers, and other maintenance-required components. |
|
Deep Customization Flexibility for Non-Standard Needs |
Whether it's special thread specifications (such as fine thread, left-hand thread), non-standard length, irregular head shape (pan head, countersunk head, head with washer) or special drive method (torch, hexagon, internal hexagon), we support customized development from 1 piece to help you with your unique design. |
|
Intelligent Optimal Process Matching Based on Order Scale |
We possess strong capabilities in cold heading and precision turning. For high-volume production, we employ a highly efficient cold heading process with high material utilization; for small-batch, multi-variety production, we utilize a moldless, quick changeover turning solution, ensuring you achieve optimal cost-effectiveness at every stage. |
|
Comprehensive Quality Assurance Guided by “Zero Defects” |
Uses CCD optical sorting machines for 100% full inspection of screw threads, heads, annular grooves, and dimensions, strictly eliminating defects like stripped threads, cracks, and dimensional out-of-spec, safeguarding your production line smoothness and final product reliability from the source, reducing your quality risk costs. |
|
Agile Supply Chain Response & Engineering Support |
We offer a 24-hour quote response for standard inquiries and a fast-track prototyping channel (3-7 days). Our engineers provide free initial technical consultation to help you optimize your design for best manufacturability and connectivity. |
4.Press-fit screws Product Specification
|
Specification Item |
Detail / Capability |
Notes / Description |
|
Common Thread Sizes |
M3, M4, M5, M6, M8; #6-32, #8-32, #10-24, etc. |
Metric & Imperial commonly available, non-standard threads supported |
|
Standard Length Range |
Overall Length 8mm - 50mm (includes clinching groove section) |
Supports ultra-short or ultra-long customization |
|
Main Material Options |
Carbon Steel (various finishes), Stainless Steel 304/316, Brass optional |
Material certificates available |
|
Head & Drive Types |
Pan Head, Countersunk Head, Button Head; Phillips, Slotted, Hex Socket, Torx |
Selected based on assembly tools and aesthetic requirements |
|
Key Performance Metrics |
Push-out & Torque-out strength after installation, number of repeated removals |
Standard test data available or testing per customer requirement |
|
Thread Precision |
Up to 6g (external threads) |
Ensures good engagement with nuts or threaded holes |
|
Dimensional Accuracy Control |
Key clinching dimension tolerance controlled within ±0.05mm |
Ensures installation consistency and reliability |
5.Press-fit screws tProduct Application
Our press-fit screws are a universal solution for achieving efficient and maintainable connections in thin-plate structures, widely used in:
Chassis and Sheet Metal Housings: For the removable fixing of server chassis side panels, network cabinet doors, and industrial control box covers, facilitating internal equipment maintenance and upgrades.
Automotive Interior and Body Accessories: As fasteners for door trim panels, dashboard side covers, and wheel arch liners, requiring vibration resistance and easy disassembly for maintenance.
Electrical and New Energy Equipment:Providing reliable grounding screws or panel mounting screws for distribution boxes, photovoltaic inverters, and charging pile housings, balancing electrical connections and mechanical fixation.
Communication and Outdoor Equipment:Used for fixing waterproof panels of 5G antenna covers and outdoor cabinets, requiring screws to have good sealing and corrosion resistance after press-fitting.
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
