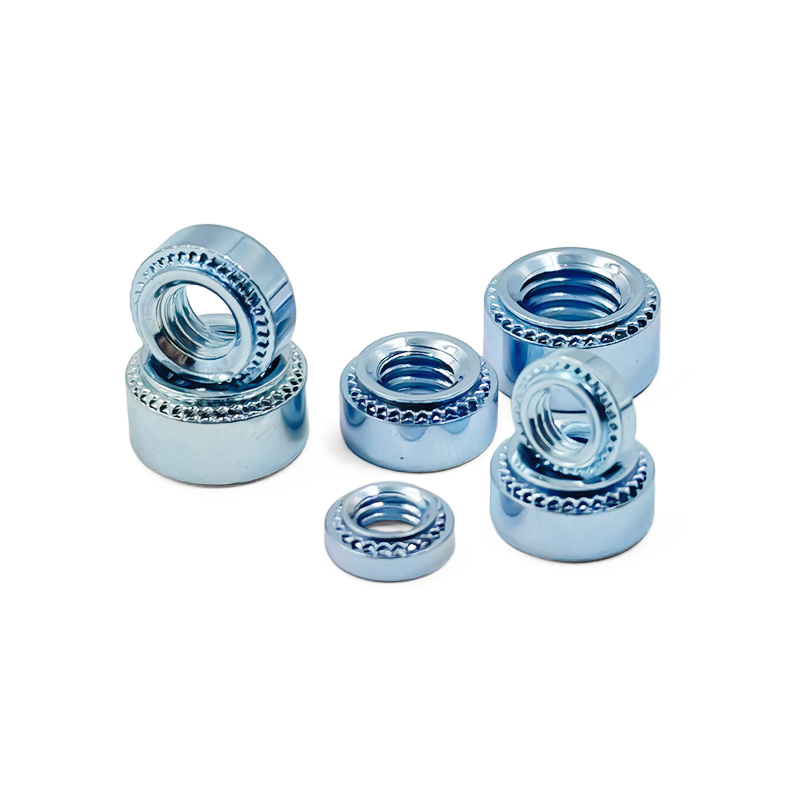

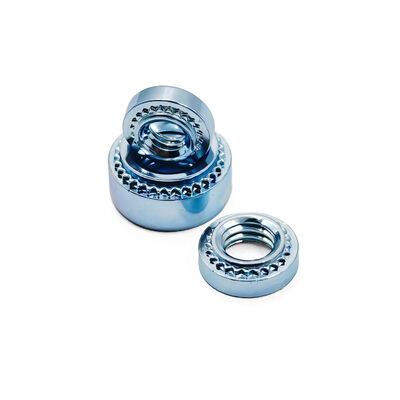

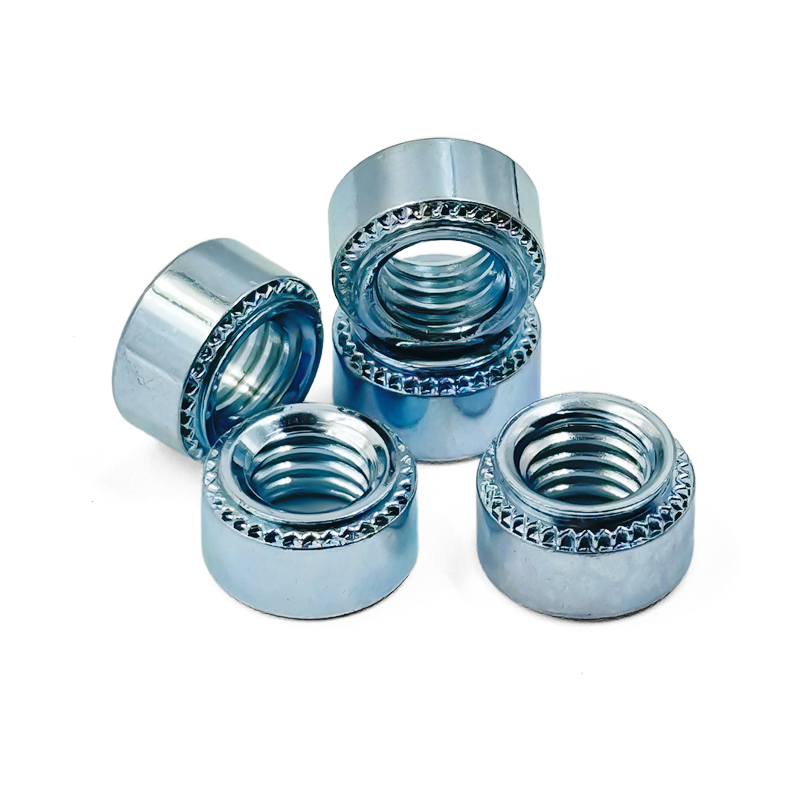

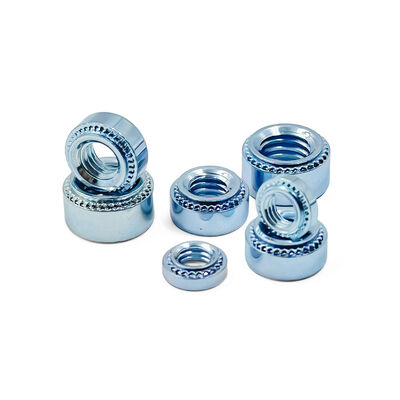

Non Standard Self Clinching Fasteners Space Saving Processing Press Fit Studs
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-003 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.28 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Positioning | Complex Special-Shaped Press Nuts | Core Competency | Co-Design & Engineering Development |
|---|---|---|---|
| Technical Challenge | Non-Standard Threads, Multi-Step Structures, Integrated Functions | Development Process | From Concept To Validation |
| Typical Features | Blind Hole With Lead-in, Special Flange, Combined Design | Performance Goal | Ultra-High Torque-Out, Special Sealing, Electrical/Thermal Conduction |
| Collaboration Mode | Deep Synergy With Customer R&D Department | Value Output | Provides Optimized Custom Connection Solutions |
| Highlight | Non Standard Press Fit Studs,Space Saving Press Fit Studs,Non Standard Press Fit Studs |
||
Product Description
Non-Standard Press-Fit Studs Deep Engineering Collaboration | Solving Space & Performance Limits from Design to Validation
1.Press-fit nuts Quick Detail
When standard press-fit nuts fail to meet your requirements for space constraints, special functions, or extreme performance, our custom complex construction service offers the ultimate solution. We don't just manufacture according to drawings; we excel at collaborating with your engineering team from the early stages of product design to jointly develop irregularly shaped press-fit nuts with special profiles, integrated locking features, or combined functions. Whether it's a hollow structure designed for weight reduction or a nut with a sealing ring groove designed to ensure airtightness, our goal is to transform your design challenges into reliable, manufacturable product advantages through creative engineering solutions.
2.Press-fit nuts tProduct Description
True customization begins with a deep understanding of the application scenario and continuous exploration of engineering boundaries. Our challenges often include: "How to achieve a torque of at least 10 N·m on an aluminum alloy plate only 2 mm thick?" or "How to integrate a crimping point that combines conductivity and fastening functions within a limited space?" To address these challenges, we have assembled an interdisciplinary engineering team that integrates materials mechanics, metal forming simulation, and precision machining technologies. We might suggest replacing traditional straight-knurled patterns with progressive interlocking serrations to improve anti-rotation capabilities, or designing a stop surface inside the nut to precisely control the crimping depth. We deliver not just a part, but a simulated and tested engineering solution, ensuring superior performance under your most demanding conditions.
3.Press-fit nuts Features & Advantage
|
Feature |
Advantage to You |
|
Application-Oriented Co-Design |
Our engineers engage early to jointly analyze load, space, and environmental factors with you, optimizing the nut’s structure and material from the design source, ensuring it is not just “manufacturable” but the “optimal solution.” |
|
Performance Simulation & Validation Beyond Standards |
For critical custom parts, we use Finite Element Analysis (FEA) to simulate the pressing process and stress state, predict potential risks, and validate metrics like push-out force and fatigue life through prototype testing, significantly reducing your development risk. |
|
Multi-Function Integration Capability |
Multiple functions can be integrated into a single press-fit nut, such as conductive paths, heat dissipation fins, self-locking threads, and sealing structures, simplifying your overall design, reducing the number of parts, and improving system reliability. |
|
Expertise in Solving Industry-Specific Challenges |
Has accumulated rich experience in solving issues like cracking during thin sheet pressing, loosening prevention in high-vibration environments, and galvanic corrosion in dissimilar material connections, providing proven solutions for your specific industry challenges. |
|
Seamless Transition from Rapid Prototyping to Mass Production |
Once the custom design is validated, we quickly lock in process parameters and establish mass production control plans, ensuring high consistency in performance between small-batch prototypes and large-volume products, guaranteeing smooth project scale-up. |
4.Press-fit nuts Product Specification
|
Specification Item |
Detail / Capability |
Notes / Description |
|
Achievable Complex Structure Types |
Blind hole depth-to-diameter ratio ≤3:1, multi-step (≥2 steps), asymmetric flange, internal/external combined threads |
Requires detailed feasibility assessment |
|
Optional Advanced Materials |
High-Strength Alloy Steel (e.g., SCM440), Precipitation-Hardening Stainless Steel (e.g., 17-4PH), High-Temperature Nickel Alloys |
For extreme environments |
|
Integrated Function Options |
Embedded O-ring groove, conductive/thermal surface treatment, pre-applied thread locker, laser marking area |
Designed per functional requirement |
|
Performance Validation Test Support |
Can provide data reports for custom parts: vibration test, salt spray test, thermal cycling test, conductivity test, etc. |
Based on customer standards or general standards |
|
Design & Development Standard Process |
Requirements input → Conceptual design (provide 2-3 solutions) → Solution review and optimization → Detailed design → Prototype creation → Testing and verification → Mass production transformation |
Ensures rigorous and transparent process |
|
Intellectual Property (IP) Protection |
A strict confidentiality agreement (NDA) is in place, and the intellectual property rights of the design results are clearly defined (as agreed). |
Protects rights of both parties |
|
Minimum Custom Order Quantity |
Evaluated based on complexity and development cost, typically supports orders starting from thousands |
Ensures project economic viability |
5.Press-fit nuts tProduct Application
Our complex engineering customization capabilities provide a solid foundation for the following high-end, specialized applications:
Aerospace and Military Equipment: We customize lightweight, high-locking press-fit nuts for radar radomes and airborne equipment brackets, meeting reliability requirements under extreme vibration and temperature variations, and complying with relevant material and process standards.
New Energy Battery Packs and Electric Drive Systems: We design composite nuts with both high conductivity and reliable press-fit connections for busbars and module endplates within battery packs, solving temperature rise and connection stability issues in high-current paths.
High-Speed Railways and Rail Transit: We customize fire-resistant, anti-loosening special press-fit nuts for vehicle interiors and control system cabinets, meeting stringent fire resistance ratings and safety requirements under long-term vibration.
High-End Semiconductor and Testing Equipment: We customize non-magnetic, low-pollution press-fit nuts for wafer transfer modules and precision testing fixtures, ensuring that equipment precision and process control are not affected in ultra-clean environments.
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
