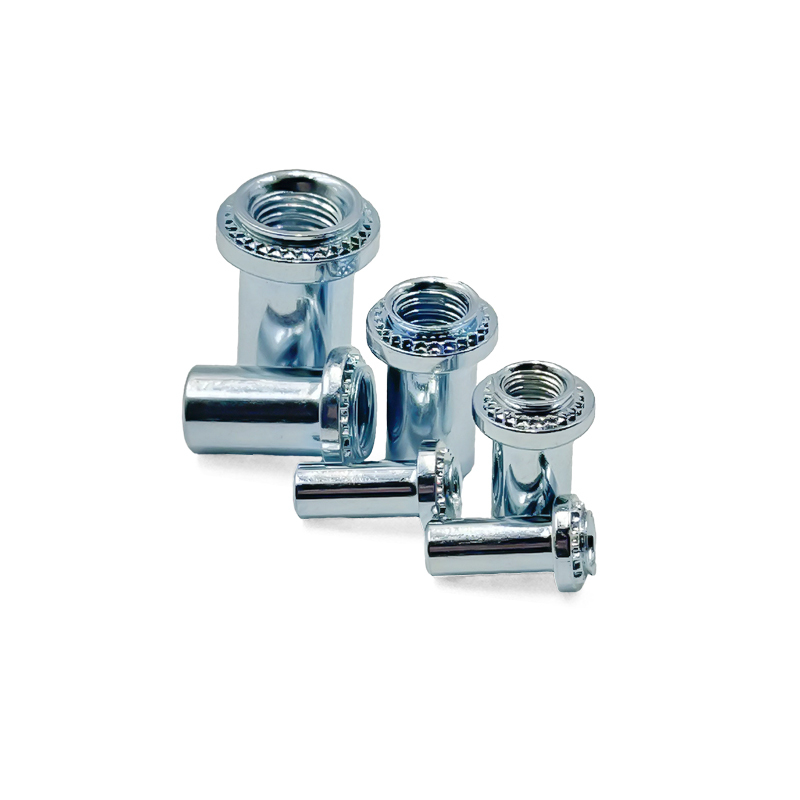

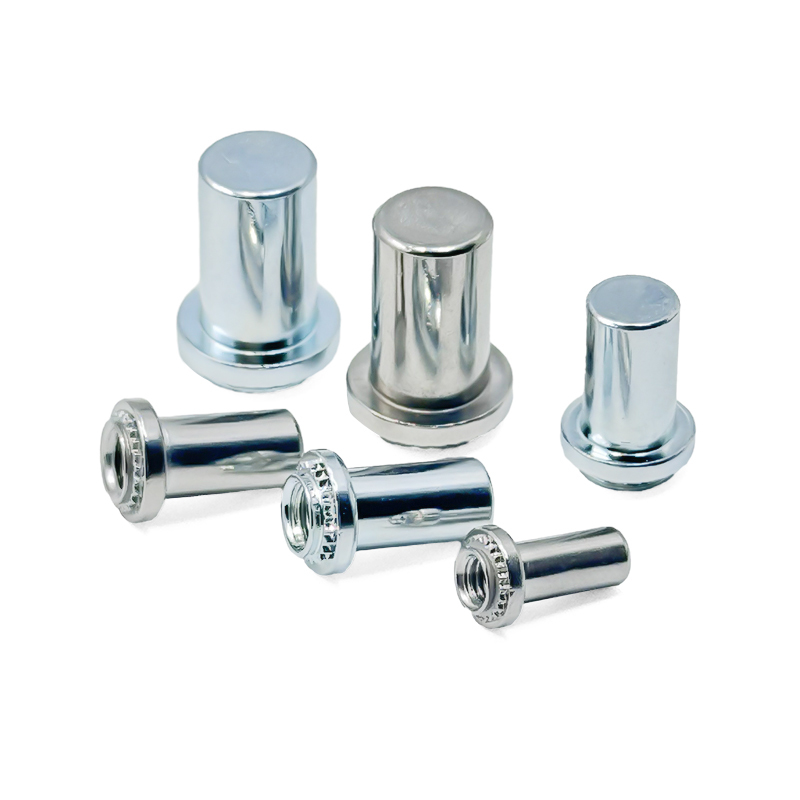

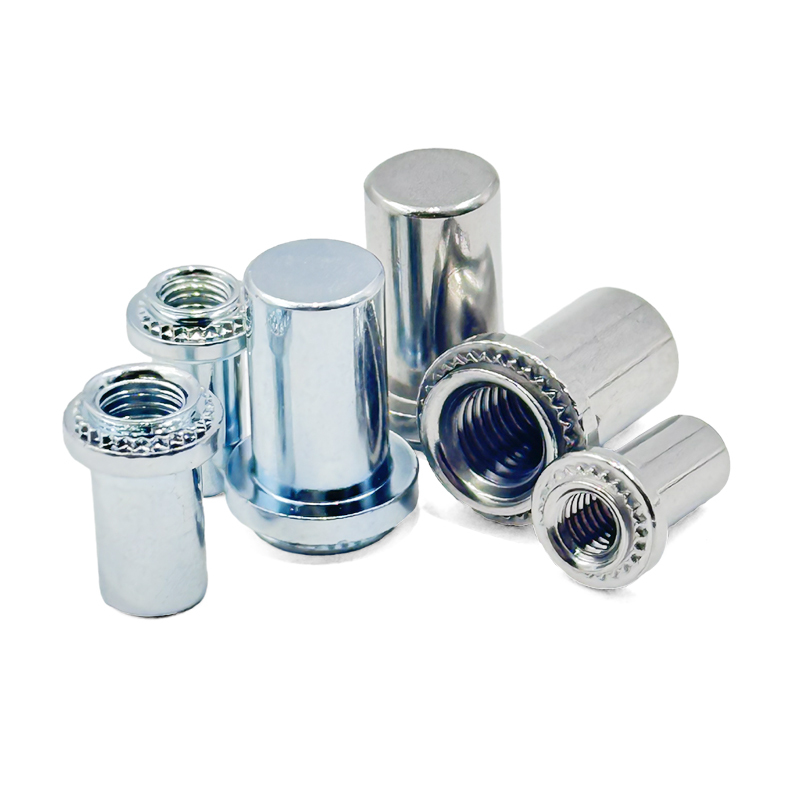

High Strength Self Clinching Fasteners Surface Finish Self Clinching Nut
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-003 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.28 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Service Core | 1-Piece MOQ, Rapid Validation Of Sealing Solution | Core Value | Accelerates R&D, Reduces Trial-and-Error Cost & Risk |
|---|---|---|---|
| Sample Lead Time | 3-7 Days For Functional Prototypes | Customization Flexibility | Supports Any Combination: Special Threads + Irregular Flanges + Special Sealing Rings |
| Collaboration Mode | One-on-One Engineer Support With DFM Advice | Sample Support | Provides Dimensional Report, Material Cert, Suggested Install Params |
| Seamless Transition | Post-Validation, Mass Production In 7-15 Days With Locked Process | Fee Policy | Prototype Cost Deductible From Future Orders |
| Highlight | High strength Self Clinching Fasteners,Surface Finish Self Clinching Fasteners,Surface Finish self clinching nut |
||
Product Description
Fast Waterproof Nuts Prototype in 3-7 Days | 1-Pc MOQ to Solve Specific IPX7/High-Temp Oil Seals
1.Waterproof nuts Quick Detail
Before mass production, it is crucial to quickly verify the feasibility of a sealing solution at the lowest cost. We offer a rapid prototyping service with orders starting from just one piece, helping you obtain waterproof nut samples suitable for real-world testing within 3-7 days. Whether you need to test the performance of a new sealing material in a specific medium or verify the sealing effect of irregularly shaped flanges on complex sheet metal, we can respond flexibly. Prototypes and mass-produced parts adhere to the same quality control system, ensuring the authenticity and validity of test results.
2.Waterproof nuts tProduct Description
Innovative sealing designs are often stalled at the drawing stage due to lack of fast, low-cost validation channels. We break this barrier. You might have a concept: achieving IPX7 waterproofing for an M5 threaded hole on 1.2mm aluminum sheet, or needing a double-ended stud seal resistant to 150°C hot oil. Our engineers will work with you to translate the concept into manufacturable drawings and recommend the most economical process path (e.g., modifying standard tooling or using precision machining). What’s delivered is not just a sample, but a technical package including a full dimensional inspection report and initial installation recommendations, providing solid ground for your decision-making.
3.Waterproof nutsroduct Features & Advantage
|
Feature |
Advantage to You |
|
True Zero-Barrier Prototyping |
Completely Liberates Design Freedom. Obtain real samples for rain spray, immersion, air tightness testing without batch commitment, minimizing the startup cost and risk of solution validation. |
|
Deep Collaboration for Sealing Needs |
Engineers provide professional advice on seal selection, groove optimization, and installation crushing force calculation to help you avoid common sealing design pitfalls and improve the first-time validation success rate. |
|
Identical Quality Standards for Prototypes & Production |
Even a single-piece prototype uses the same seal material, nut body precision, and surface finish as required for future mass production, ensuring the accuracy and continuity of performance testing. |
|
Flexible Composite Customization Capability |
Supports modes like “Standard Nut Body + Custom Seal” or “Full Dimension Customization”. For example, we can provide seal samples of different hardnesses (Shore A 50°/60°/70°) for comparative testing. |
|
Clear Path to Mass Production |
Once the prototype is validated, all design parameters and process documents are locked and can be directly transferred to our efficient cold heading or dedicated lines for batch production, achieving seamless transition and saving re-development time. |
4.Waterproof nuts Product Specification
|
Specification Item |
Rapid Prototyping Capability Range |
Notes & Support |
|
Minimum Order Quantity (MOQ) |
1 Piece |
Suitable for design validation, testing samples, maintenance spare production. |
|
Standard Sample Delivery Lead Time |
3-7 Working Days |
Counted from final confirmation of drawing/requirements. |
|
Verifiable Seal Materials |
EPDM, Silicone, FKM, NBR, etc.; Special Materials can be sourced for sampling. |
Helps you test material compatibility in actual media. |
|
Verifiable Threads & Structures |
Metric/Imperial/American standard flanges, fine thread, left-hand thread, blind hole, double-ended, and special-shaped flanges, etc. |
Validates structural feasibility and compatibility with assembly tools. |
|
Technical Documents Provided |
1. Dimensional Inspection Report |
Supports your design archiving, test reporting, and subsequent simulation. |
|
Sample Cost Composition |
Material Cost + Machining Labor Cost, transparent quotation. |
No Tooling Cost (using existing tooling or machining process). |
|
Sample Testing Support |
Can provide installation guidance and parameters (e.g., recommended press force) based on your test plan. |
Ensures samples are installed correctly for valid test data. |
5.Waterproof nuts tProduct Application
New Product Development (NPI) Phase: New products such as smart home outdoor sensors, underwater robots, and portable medical devices require rapid acquisition of sealed connector prototypes for IP rating certification testing and environmental reliability testing.
Existing Product Design Changes: To improve product waterproofing or adapt to new environments, existing housing connection solutions need to be upgraded and validated, such as replacing ordinary press-fit nuts with waterproof nuts.
Small-Batch Trial Production and Market Launch: Before market launch, hundreds to thousands of trial production units are produced for customer sampling, trade show demonstrations, or small-scale market deployment to validate market feedback.
Failure Analysis and Solution Replacement: For sealing failures occurring in the existing supply chain, alternative samples of different materials or designs are provided for comparative testing to determine the root cause and optimization solutions.
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
