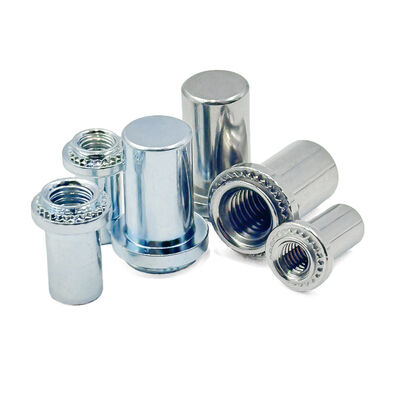

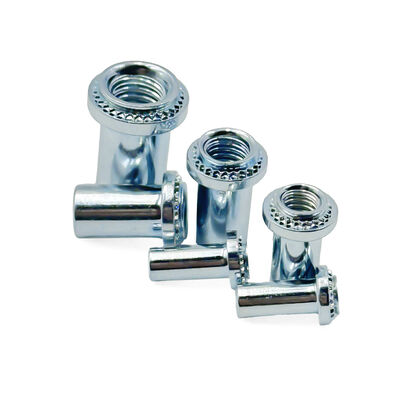

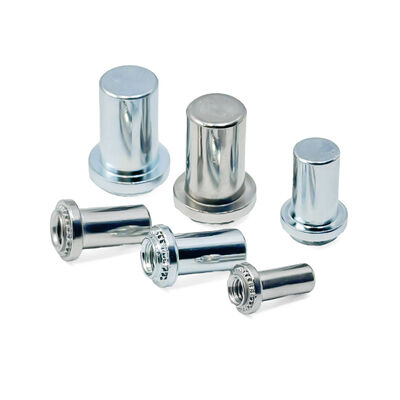

IP67 Waterproof Nut Easy Installation For 360° Protection In Outdoor Or Electrical Apps
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-003 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.28 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Waterproof Nut (Sealing Clinch Nut) | Core Function | Prevents Liquid & Gas Ingress, Provides IP67 Sealing |
|---|---|---|---|
| Sealing Principle | Integrated Elastomer Seal (O-Ring/EPDM) Pre-Assembled | Installation Method | Standard Pressing Process, One-Step Formation |
| Key Advantage | Reliable Seal · Easy Installation · Long-Term Durability | Main Material | Carbon Steel Zinc Plated, Stainless Steel 304/316 |
| Typical Application | Outdoor Enclosures, Automotive Body, New Energy Equipment Housings | Reliability Verification | Air Tightness / Water Pressure Test Reports Available |
| Highlight | IP67 Waterproof Nut,Electrical Apps Waterproof Nut,Electrical Apps self clinching nut |
||
Product Description
IP67 Waterproof Nut Sealing Solution | Pre-Assembled EPDM Seal for 360° Protection in Outdoor & Electrical Apps
1.Waterproof nuts Quick Detail
Tingfeng Waterproof Nuts offer an efficient and reliable sealing solution for thin-sheet connections. They feature a pre-assembled high-performance elastomeric seal (e.g., EPDM) under the nut flange. During press installation, this seal is evenly compressed, forming a 360° continuous sealing ring around the threaded hole. This design achieves protection levels of IP67 and above, effectively sealing out water, dust, and oil. The installation process is identical to standard clinch nuts, requiring no additional sealants or complex steps, making it ideal for enhancing the reliability of products in outdoor or humid environments.
2.Waterproof nuts tProduct Description
In electrical equipment, outdoor installations, or automotive parts, even a simple screw hole can become a channel for moisture intrusion, leading to short circuits, corrosion, or malfunction. Our waterproof nuts are designed to solve this fundamental problem. We not only provide the parts, but also the tested and proven sealing performance. By carefully selecting sealing materials with excellent weather resistance and temperature resistance (typically -40°C to +120°C) and accurately calculating compression, we ensure that the seals maintain proper elasticity and pressure after installation, preserving sealing effectiveness even after prolonged vibration or temperature cycling. Our engineering support can help you select the most suitable sealing materials and nut sizes for your specific application.
3.Waterproof nutsroduct Features & Advantage
|
Feature |
Advantage to You |
|
Integrated “Press-to-Seal” Design |
Simplifies Your Assembly Process. No separate gaskets, sealants, or secondary processes required. One standard pressing operation achieves both structural fixation and sealing, saving labor time and reducing overall cost. |
|
Reliable Long-Term Sealing Performance |
The pre-assembled EPDM or Silicone seal offers excellent aging and UV resistance. The optimized compression design ensures an effective seal within sheet tolerance ranges, achieving protection levels up to IP67-IP69K, safeguarding product safety throughout its lifecycle. |
|
Broad Material & Specification Compatibility |
Nut body options include carbon steel zinc-plated, stainless steel 304/316. Seal rings can be selected with different hardnesses and chemical resistance formulas (e.g., fuel-resistant, ozone-resistant). Supports common sizes M3-M12, suitable for sheet thickness 0.8mm-3.0mm. |
|
Rigorous Performance Validation & Data Support |
We can perform air tightness tests (e.g., 0.5Bar holding), water spray tests, or salt spray tests to your standards and provide data reports. This offers strong evidence for your product design validation and reliability claims. |
|
Powerful Non-Standard Customization Capability |
For special threads (fine thread, left-hand), irregular flanges, or extreme environmental requirements, we support full customization from materials and structure to testing. We can provide rapid prototypes starting from just one piece to support your innovative designs. |
4.Waterproof nuts Product Specification
|
Specification Item |
Detail / Capability |
Notes / Description |
|
Common Thread Sizes |
M3, M4, M5, M6, M8, M10 (Metric) |
Imperial sizes like #6-32, #8-32, #10-24 also available. |
|
Standard Seal Material |
EPDM (Ethylene Propylene Diene Monomer) |
Offers good weather, hot water, and chemical resistance. Temperature range: -40°C to +120°C. |
|
Optional Seal Materials |
Silicone, FKM (Viton), NBR (Nitrile) |
For special high-temperature, oil, or chemical environments. |
|
Standard Protection Rating |
IP67 (Dust tight, protected against temporary immersion) |
Tested per IEC 60529. Higher ratings available upon request. |
|
Suitable Sheet Thickness |
0.8 mm — 3.0 mm (Steel/Aluminum) |
Different nut body heights recommended for different sheet thicknesses. |
|
Nut Body Material |
Carbon Steel (Zinc/Nickel Plated), Stainless Steel A2-70/A4-80 |
Material certificates provided to meet various strength and corrosion resistance needs. |
|
Key Performance Tests |
Air Tightness Test, Axial Sealing Force Test, Post-Vibration Seal Test |
Test methods and results available upon request. |
5.Waterproof nuts tProduct Application
Our waterproof nuts are key components for achieving sealed connections between enclosures, and are widely used in: Outdoor communication and power equipment: 5G antenna covers, base station cabinets, photovoltaic inverters, and waterproof panel fixing for charging piles to prevent rainwater and condensation intrusion.
Automotive and transportation: Battery pack covers for new energy vehicles, enclosures for electronic control units (ECUs), headlight assemblies, and luggage compartment doors for buses, etc., requiring waterproofing.
Industrial automation and control: Electrical interface protection for outdoor PLC control boxes, dashboards of construction machinery, and cleaning areas in food and beverage equipment.
Special equipment and medical devices: Enclosure connections for outdoor testing instruments, agricultural machinery, and medical equipment requiring regular cleaning or potentially exposed to liquids.
6.Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
