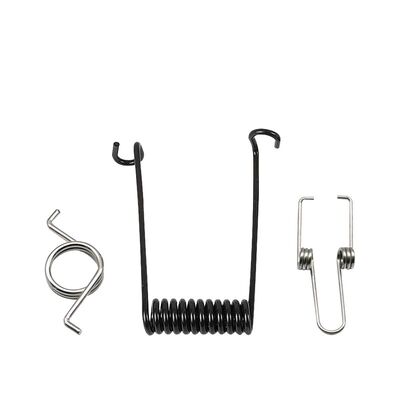

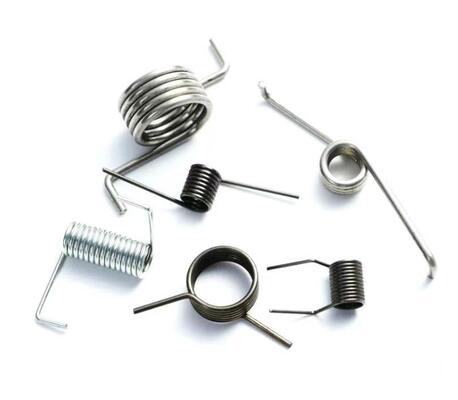

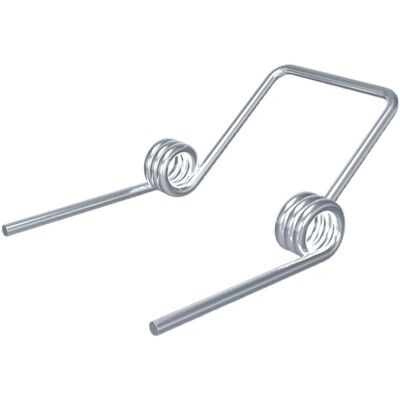

Music Wire Industrial Torsion Spring Rustproof Components For High Frequency Rotary Applications
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-004 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.57 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Positioning | High-Reliability Torsion Spring | Material System | Vacuum Degassed Music Wire / Aerospace-grade Stainless Steel / Valve Chrome Silicon Steel / Special Constant Modulus Alloy |
|---|---|---|---|
| Reliability Grade | Commercial / Automotive / Medical (Reference) | Failure Mode Protection | Overload Protection Design / Fatigue Optimization / Stress Corrosion Prevention / Relaxation Resistance |
| End Reinforcement Process | Local Induction Hardening / Shot Peening / Roller Burnishing / None | Verification & Testing | Accelerated Life Test / Environmental Stress Screening (ESS) / Destructive Physical Analysis (DPA) By Lot |
| Applicable Standard | Customer Proprietary Standard / IATF 16949 Process / ISO 13485 Support | Documentation Package | APQP Documentation / PPAP Submission / Full Dimensional Report (FAI) / Material Traceability Report |
| Highlight | Music Wire Industrial torsion spring,Rustproof Industrial torsion spring,Music Wire Double torsion spring |
||
Product Description
Fatigue-Resistant Music Wire Torsion Springs, Reliable Elastic Components for High-Frequency Rotary Applications
1. Torsion Spring Quick Detail
For critical applications involving safety and performance, the reliability of torsion springs must be absolutely flawless. Tingfeng Hardware has built a high-reliability torsion spring manufacturing system with a "zero-defect" goal. We start with specialized material sourcing and certification, follow a precision manufacturing process centered on SPC (Statistical Process Control), and implement reliability verification that exceeds industry standards. Our factory strictly operates the IATF 16949 automotive quality management system, possessing the full capability to execute everything from DFMEA (Design Failure Analysis) to PPAP (Production Part Approval Process). We deliver not only products, but also a rigorously validated commitment to reliability.
2. Torsion Spring Product Description
In high-end manufacturing, the failure cost of a spring far exceeds its intrinsic value. We specialize in providing torsion springs for these "failure-intolerant" applications. Our methodology is based on reliability engineering. This means we quantify reliability goals from the outset of design and identify potential failure paths through FTA (Fault Tree Analysis). In material selection, we prefer specialty materials with high purity and consistent performance. In manufacturing processes, we control every critical parameter that might introduce variation, such as the impact of molding speed on residual stress. We have established comprehensive Accelerated Life Testing (ALT) and High Accelerated Life Testing (HALT) capabilities, enabling us to simulate the harsh conditions of long-term use in a short time, thus ensuring sufficient reliability margins during the design phase. Partnering with us provides you with manageable certainty.
3. Torsion Spring Product Features & Advantage
|
Feature |
Advantage to You |
|
Preventive Design Based on Physics of Failure |
Uses Physics of Failure (PoF) models to predict and avoid failures caused by mechanisms like wear, fatigue, and corrosion at the design stage, significantly improving product inherent reliability. |
|
Key Parameter Monitoring in Manufacturing Process |
Key process parameters such as heat treatment temperature curves and forming stress are 100% monitored and recorded to ensure a high degree of consistency and traceability in the manufacturing process. |
|
Reliability Verification Beyond Standards |
In addition to routine testing, we offer customized reliability qualification tests (such as three-dimensional comprehensive testing and durability profile testing) to help you identify application risks with data. |
|
Closed-Loop Reliability Growth Management |
Establishes a closed-loop system from field failure feedback to design and process improvement, achieving continuous iteration and growth of product reliability, evolving alongside your product. |
4. Torsion Spring Product Specification
|
Reliability Key Indicators |
Test & Evaluation Method |
Our Assurance Level |
|
Design Reliability |
|
|
|
Safety Factor (Design) |
Calculation based on maximum allowable stress vs. working stress |
≥ 1.5 (Dynamic Applications) or per Customer Standard |
|
Torque-Angle Curve Repeatability |
Measure multiple consecutive cycles, evaluate curve consistency |
Coefficient of Variation (CV) < 3% |
|
Manufacturing Consistency |
|
|
|
Key Dimension Process Capability (Cpk) |
Statistical calculation for wire diameter, mean diameter, arm length |
Cpk ≥ 1.67 (Ppk for initial run) |
|
Batch-to-Batch Torque Deviation |
Compare average torque across different production batches |
Deviation < ±5% |
|
Durability & Life |
|
|
|
Rated Life (L10) |
Reliability life assessment based on Weibull analysis |
Predicted value can be provided based on test data |
|
Overload Test |
Apply 125%-150% rated torque, test performance recovery afterward |
No permanent deformation, and performance degradation is within acceptable limits. |
|
Environmental Suitability |
|
|
|
Temperature Cycling & Shock Test |
Customize temperature range and cycles per customer application environment |
After testing, torque and dimensional changes are within specification |
|
Vibration & Shock (Mechanical Environment) |
Test per standards (e.g., ISO 16750) or customer-specified profiles |
No structural damage was found after testing, and the function was normal. |
5.Torsion SpringProduct Application
Providing torsion spring solutions for uncompromising applications:
Automotive Safety and Powertrain Systems: Electric Power Steering (EPS) torque sensor return springs, transmission shift lock mechanism springs, and core torsion springs in electronic parking actuators—any failure directly impacts driving safety.
Life Support and Implantable Medical Devices: Drive springs for artificial heart valve testing equipment, precision dispensing mechanism springs for high-end infusion pumps, and force feedback torsion springs for surgical robot joints—requiring absolute functional precision and biocompatibility.
Aerospace Critical Subsystems: Flight control system actuator return springs, constant force springs for satellite solar panel deployment mechanisms, and control springs for aero-engine variable geometry mechanisms—requiring the ability to withstand extreme environments and achieve ultra-long lifespans.
Energy and Major Equipment: Spare springs for nuclear power plant control rod drive mechanisms, precision positioning torsion springs for supercritical power generation valves, and high-load joint springs for heavy industrial robots—failure could lead to major safety accidents or substantial economic losses.
6. Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
