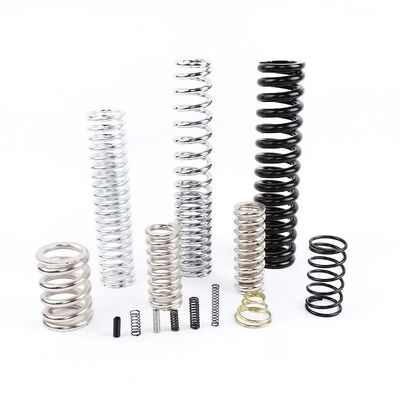

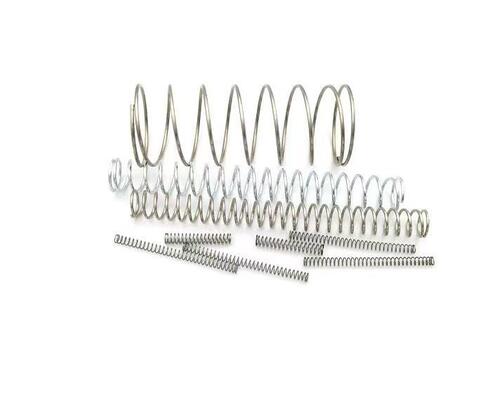

Carbon Steel Custom Compression Spring Medical Device Custom Springs
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | ISO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.2-0.52/pcs |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Compression Spring | Material Selection | Stainless Steel Series / High Carbon Steel Series / Copper Alloy / Nickel Alloy |
|---|---|---|---|
| Wire Diameter Range | <0.5mm (Ultra-Fine) / 0.5-2.0mm (Regular) / 2.0-5.0mm (Medium) | Function Focus | High Load Type / Long Stroke Type / High Frequency Type / Corrosion Resistant Type |
| End Form | Type Y (Closed & Ground) / Type U (Closed) / Type O (Open) | Processing | Stress Relief / Black Oxide / Electroplating / Shot Peening |
| Industry Solution | Automotive Solution / Medical Solution / 3C Electronics Solution / General Industrial Solution | Quality Control | Quality Control Full Dimension Check / Load Test / Salt Spray Test / Life Cycle Test |
| Highlight | Carbon Steel custom compression spring,Medical Device custom compression spring,Carbon Steel Custom Springs |
||
Product Description
Engineered-to-Order Compression Springs | From Deep Understanding to Reliable Performance
1.Compression Spring Quick Detail
Tingfeng Hardware, your expert in custom compression spring manufacturing. We possess advanced manufacturing capabilities covering the full spectrum of wire diameters from Φ0.1-12mm, specializing in meeting non-standard requirements for load, stroke, lifespan, and environmental adaptability. By integrating over 300 professional machines and an experienced engineering team, we provide a “turnkey” service from concept to volume production. Our strength lies in speed paired with quality: 48-hour samples, 72-hour trial production, and a commitment to a 99% batch qualification rate.
2.Compression Spring Product Description
We understand that a high-quality compression spring is far more than coiled wire. It is the art of mechanics, a key to reliability engineering. We strive to be the “unseen reliable partner” within your product. Our service begins with a thorough understanding of your application scenario, followed by precise calculation and simulation, fine-tuning material selection (from economical carbon steel to aerospace-grade alloys), geometric design optimization, and critical processes (such as presetting), ultimately delivering a spring product that perfectly performs its function within the specified space and is built to last.
3.Compression Spring Product Features & Advantage
|
Feature |
Advantage to You |
|
Technology-Driven Design Optimization |
Engineering team proactively engages, providing Design for Manufacturability (DFM) analysis and performance optimization suggestions, helping you reduce costs and improve design robustness. |
|
End-to-End Built-In Quality |
Quality control runs through the entire process from raw material inbound to finished product outbound, utilizing SPC for process monitoring, ensuring stability at the source. |
|
Highly Flexible Capacity Setup |
Supports “1-piece MOQ” for R&D and “million-level” order surges, with极大的 production flexibility, easily adapting to market fluctuations. |
|
Transparent & Efficient Collaboration |
Provides clear project timelines, regular progress updates, and complete delivery documentation (test reports, etc.), giving you peace of mind and saving effort throughout the process. |
4.Compression Spring Product Specification
|
Technical Parameter |
Capability Range & Description |
Technical Notes |
|
1. Basic Dimensions |
|
|
|
Wire Diameter (d) |
0.10 - 12.00 mm |
Fundamental Parameter |
|
Outside Diameter (OD) |
0.50 - 120.0 mm |
Equipment Limited |
|
Free Length (L0) |
1.0 - 800 mm |
Can be custom segmented |
|
2. Performance Parameters |
|
|
|
Initial Tension (Fi) |
Optional, common for tight-wound springs |
Reduces free travel |
|
Working Load (P) |
0.1 N - 15 kN |
Design Dependent |
|
Spring Rate (k) |
0.005 - 2000 N/mm |
Ratio of Load to Deflection |
|
Max. Deflection (Sm) |
Recommended ≤ 80% * L0 |
Avoid solid height |
|
3. Environment & Life |
|
|
|
Suitable Temperature |
-200°C ~ +400°C (Extreme) |
Requires special materials |
|
Typical Life |
10^3 - 10^8 Cycles |
Design Determines Limit |
5.Compression Spring Product Application
Addressing industry challenges and providing spring solutions:
Meeting the trend of precision and miniaturization: Providing compression springs with sub-millimeter wire diameters for consumer electronics (such as hinge springs for TWS earphone charging cases) and miniature sensors, achieving precise force control in extremely limited spaces.
Meeting high reliability and long lifespan requirements: Springs manufactured for automotive engine components and industrial valves undergo rigorous fatigue testing and environmental simulation to ensure consistent performance under vibration and temperature changes.
Adapting to harsh and special environments: Springs provided for outdoor equipment, chemical instruments, or food machinery utilize special stainless steel or coatings to resist corrosion, high temperatures, or meet hygiene standards.
Achieving the optimal balance of cost and performance: Through value engineering analysis, providing the most cost-effective spring solutions for high-volume products such as home appliances and general hardware, without sacrificing core performance.
6. Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
