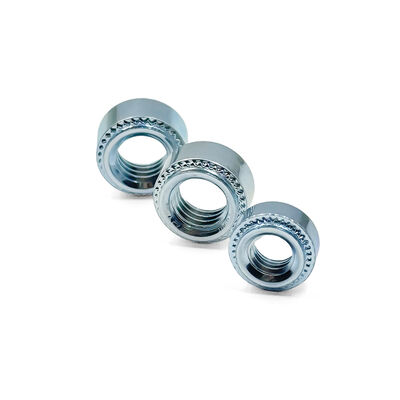

Non Standard Fine Thread Pitch High Accuracy Electropolished 316L Stainless Steel Self Locking Press Nut
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-004 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.28 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Material | 316L Stainless Steel (low Carbon) | Thread Pitch | Non-standard Fine Pitch E.g. 0.35mm, 0.5mm, 0.75mm |
|---|---|---|---|
| Thread Accuracy | Class 6H (high Precision) | Surface Finish | Electropolished (Ra ≤ 0.4µm) |
| Self-locking Type | Metal Prevailing Torque (all-metal) | Suitable Environment | Medical, Food, Semiconductor, Marine |
| Inspection | 100% Thread Gauge + Roughness Sampling | Minimum Order | 500pcs (batch) / No Limit For Samples |
| Highlight | 316L stainless steel press nut,self locking electropolished fastener,non standard fine thread nut |
||
Product Description

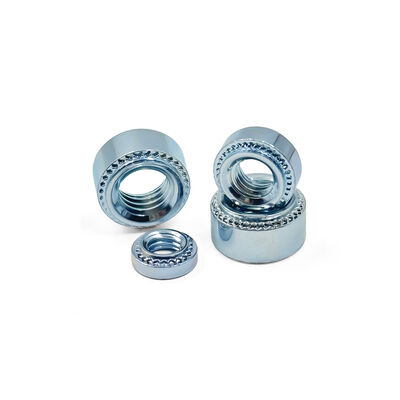

Non Standard Fine Thread Pitch High Accuracy Electropolished 316L Stainless Steel Self Locking Press Nut
Need fine pitch threads for precision adjustment or prevailing torque applications? We offer non-standard pitch customization, including M3x0.35 and M4x0.5 configurations. Featuring an electropolished 316L stainless steel surface with Ra≤0.4µm, these nuts are ideal for medical and food equipment applications. The all-metal self-locking structure provides high temperature resistance and eliminates contamination risks. 48-hour sampling available.
Enhanced Performance for Soft Materials
Standard coarse threads may not provide optimal performance for precision adjustment or high-vibration environments. Fine pitch threads offer smaller lead for finer positioning and superior self-locking properties. We accept any non-standard fine pitch customization—simply provide the pitch value or mating screw specification.
316L stainless steel is the low-carbon variant, minimizing sensitization after welding and offering enhanced intergranular corrosion resistance compared to standard 316. Electropolishing reduces surface roughness below Ra 0.4µm while removing micro-burrs and surface contaminants, meeting stringent cleanliness requirements for medical implants and food contact equipment. The all-metal self-locking structure (no nylon insert) withstands high-temperature sterilization processes such as autoclaving. Material certificates, roughness reports, and thread inspection reports are available. With 15 years of precision manufacturing experience, we specialize in solving unique thread requirements.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| Non-standard fine pitch | Enables fine positioning; better self-locking than coarse threads |
| 316L stainless steel | Low-carbon version, resistant to intergranular corrosion, suitable for welded assemblies |
| Electropolished surface Ra≤0.4µm | Ultra-smooth, burr-free, easy-to-clean; meets medical/food cleanliness standards |
| All-metal self-locking | High temperature resistant, contamination-free, reusable |
| 100% thread inspection | Ensures every nut mates smoothly with precision screws |
Product Specifications
| Specification Item | Detail / Capability | Notes / Description |
|---|---|---|
| Thread Size | M2 - M8 | Non-standard pitch |
| Pitch Examples | M2x0.2, M2.5x0.35, M3x0.35, M4x0.5, M5x0.5, M6x0.75 | Custom per requirement |
| Thread Accuracy | Class 6H | Class 4H available (precision) |
| Surface Roughness | Ra ≤ 0.4µm after electropolish | Measurable |
| Material | 316L (UNS S31603) | Material certificate provided |
| Prevailing Torque | ≥ 0.1 N*m for M3 | Varies by size |
| Salt Spray Test | ≥ 500 hours after electropolish | No red rust |
| Sample Lead Time | 3-5 days | Includes thread customization |
Product Applications
- Surgical Instrument Handles: Threaded connections for autoclavable surgical tools; electropolished surface has no dead corners, easy to clean
- Semiconductor Equipment Chambers: Thin panel fastening in cleanroom environments; all-metal self-locking prevents particle contamination
- Food Filling Machines: Adjustment mechanisms in indirect food contact; 316L material corrosion resistant, fine pitch for precise control
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
