304 Stainless Steel High Precision Non Standard Custom Thread Length Self Clinching Nut
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-004 |
| Minimum Order Quantity | 1 |
| Price | 0.01-0.28 |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Material | 304 Stainless Steel (A2) | Thread Accuracy | High Precision Class 6H Internal Thread |
|---|---|---|---|
| Thread Length | Non-standard Custom Per Drawing | Panel Thickness | Fits 0.8mm – 2.5mm Thin Sheets |
| Installation | Self-clinching Press-in, No Tapping Or Helicoil | Surface Finish | Natural / Passivated |
| Inspection | 100% Thread Gauge + Vision Dimension | Minimum Order | No Limit For Samples, 100pcs For Batch |
| Highlight | 304 stainless steel self clinching nut,high precision custom thread nut,non standard length clinching fastener |
||
Product Description

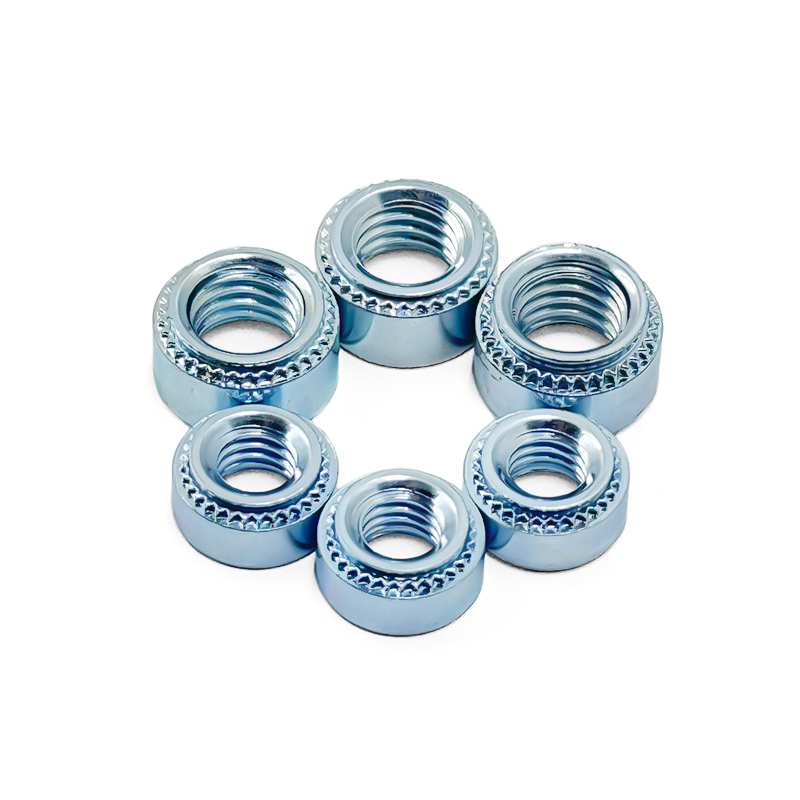

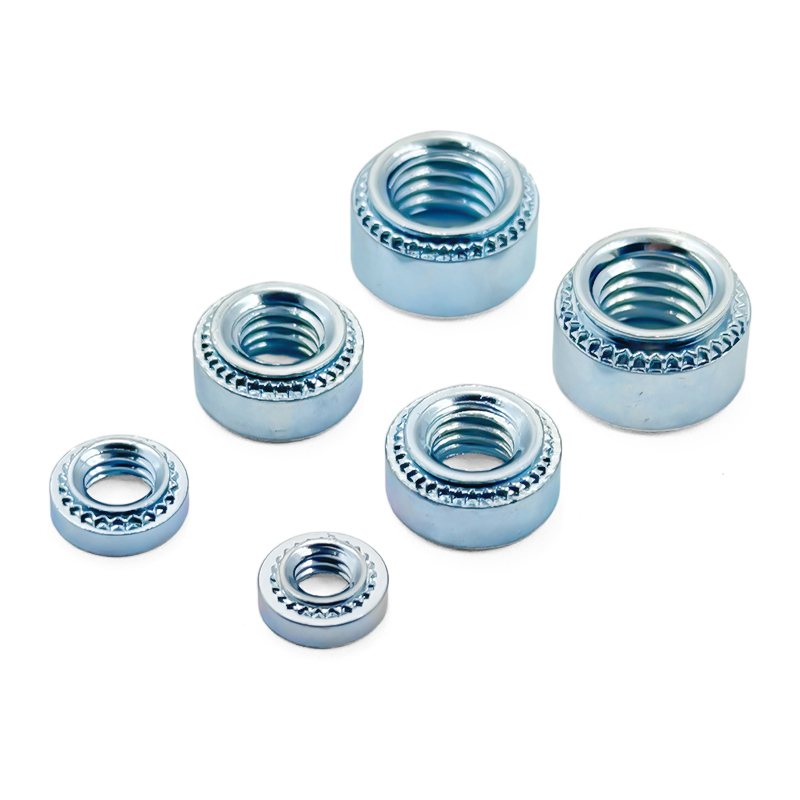

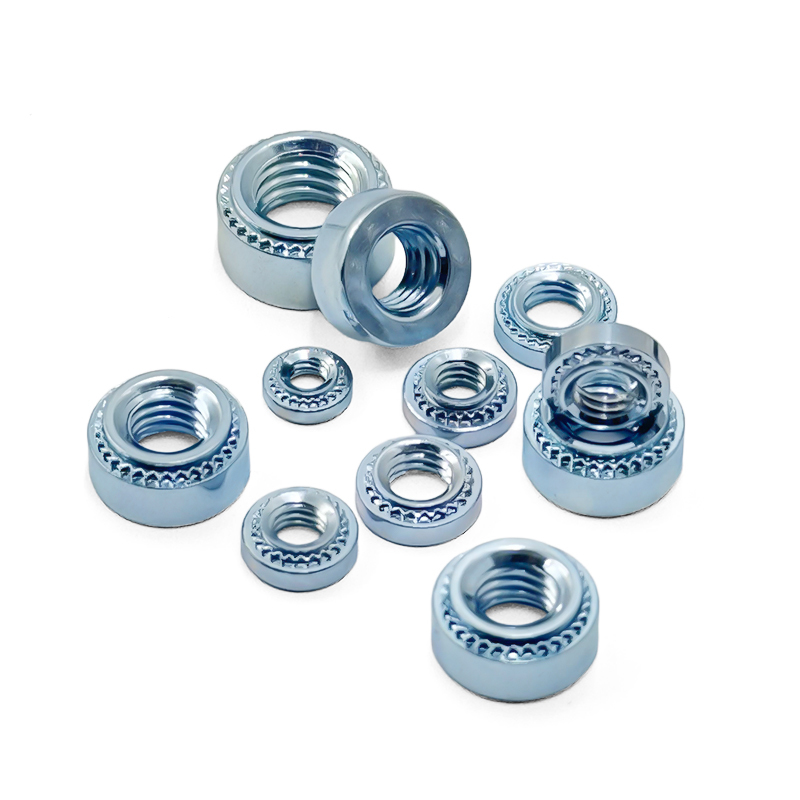

Custom Thread Length 304 Stainless Steel Self Clinching Nut for Thin Panels
Quick Overview
Need non-standard thread length for special panel thickness? Our 304 stainless steel self-clinching nuts support custom thread length per drawing with no MOQ restriction. High precision rolled threads provide excellent fatigue resistance. Self-clinching design creates permanent threads in 0.8-2.5mm thin sheets. 48hr sampling, small batch welcome.
Product Description
In sheet metal or injection molded parts, standard nut thread lengths often don't match your panel thickness—too long protrudes on the back, too short provides insufficient clamping force. Tingfeng Hardware offers non-standard thread length customization. Simply provide a drawing or specify panel thickness, and we calculate the optimal thread length for flush or controlled protrusion after clinching.
Our self-clinching nuts use rolled thread technology, which preserves metal grain flow continuity and increases fatigue strength by over 30% compared to cut threads. 304 stainless steel offers good corrosion resistance for outdoor or humid environments. Engineering team completes DFM review within 24 hours and delivers samples in 48 hours. 15 years precision manufacturing, IATF16949 certified—solving your thin sheet fastening challenges.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| Custom thread length | Perfectly matches your panel thickness—no compromise |
| Rolled thread process | High fatigue strength; withstands repeated assembly |
| 304 stainless steel | Corrosion and oxidation resistant for outdoor/humid conditions |
| Self-clinching design | One-time permanent installation; no tapping or welding |
| 48hr rapid sampling | Accelerates product development and validation |
Product Specifications
| Specification Item | Detail / Capability | Notes / Description |
|---|---|---|
| Thread Size | M2 - M8 (Metric) / #2-56 - 5/16-18 (Unified) | Custom pitch available |
| Thread Length | 2mm - 10mm custom per drawing | For 0.8-2.5mm panels |
| Head Type | Flat / Countersunk / Low profile | Custom per drawing |
| Material | 304 Stainless Steel | 316 SS optional |
| Installation Force | 5 - 20 kN depending on size | Installation parameters provided |
| Pull-out Force | ≥300 N for M3 | Test report available |
| Surface Finish | Natural / Passivated / Nickel plated | Passivated to ASTM A967 |
| Sample Lead Time | 48-72 hours | 3-5 days for complex |
Product Applications
- Outdoor Communication Cabinets: Thin sheet threaded connections for 5G base stations and router enclosures requiring weather resistance and reliable clamping
- Precision Instrument Housings: Panel threads for analyzers and measurement equipment requiring flush mounting and high positioning accuracy
- New Energy Storage Cabinets: Battery module mounting plates with custom thread length to avoid cell interference
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
