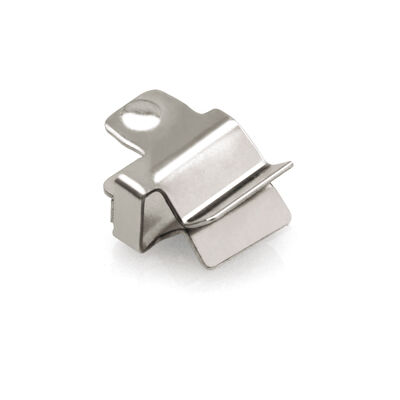

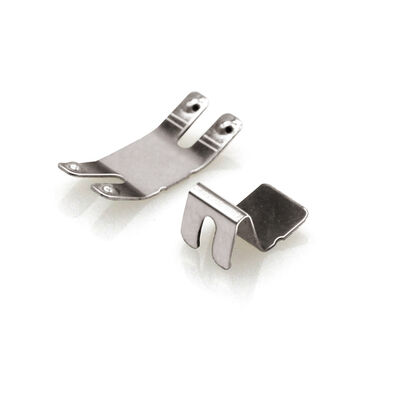

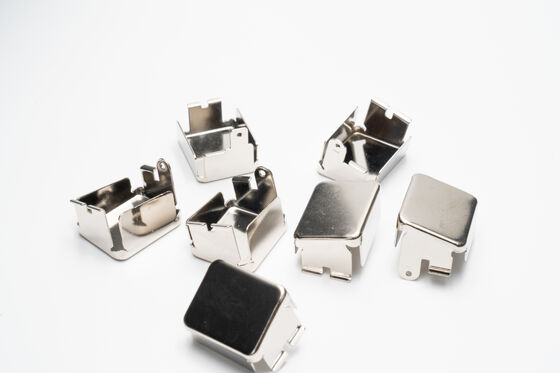

High Reliability Precision Stamping Parts Stable Performance Prototype Sheet Metal Stamping
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-003 |
| Minimum Order Quantity | 1 |
| Price | 0.07-0.23USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Precision Stamping Parts | Main Material | Carbon Steel / Stainless Steel / Aluminum Alloy |
|---|---|---|---|
| Material Thickness | 0.5-1.0mm / 1.0-2.0mm / 2.0-3.0mm | Process Type | Progressive Die Stamping / Bending / Riveting |
| Tolerance Grade | Precision (±0.05mm) | Certification | ISO 9001 / IATF 16949 |
| Application Industry | Automotive Electronics / Industrial Control | Drawing Format | PDF / STEP / DWG/DXF / IGES |
| Highlight | High Reliability Precision Stamping Parts,Stable Precision Stamping Parts,Stable prototype sheet metal stamping |
||
Product Description
High-Reliability Precision Stamping | IATF Compliant for Demanding Industrial Applications
1．Precision Stamping PartsQuick Detail
We provide professional precision metal stamping manufacturing services, focusing on meeting the high requirements of the automotive electronics and industrial control fields for part quality, consistency, and delivery stability. Our facility is equipped with high-speed precision stamping equipment and multi-station progressive die lines, possessing rich experience in material handling and process optimization. Supported by a strict quality management system and an efficient engineering team, we ensure every step from sample validation to mass production is reliable and controlled.
2. Precision Stamping Parts Product Description
In demanding industrial and automotive applications, the reliability of precision stampings is directly related to the performance and safety of the end product. We have a deep understanding of the specific standards in these industries (such as IATF 16949) and are committed to providing high-quality manufacturing solutions for sensor housings, relay springs, connector terminals, and various structural parts. Our engineers excel in optimizing the mechanical strength, conductivity, and durability of parts through process design, making us your trusted manufacturing partner.
3．Precision Stamping Parts Product Features & Advantage
|
Feature |
Advantage to You |
|
Manufacturing Experience for High-Demand Industries |
Familiar with technical specifications and quality requirements in automotive electronics and industrial control fields, providing solutions compliant with industry standards, reducing your certification and onboarding risks. |
|
Robust Process & Consistent Output |
Utilize optimized stamping process parameters and mold design to ensure stable dimensional accuracy and product performance are maintained long-term in mass production. |
|
Integrated Secondary Processing Capability |
Integrate multiple processes such as riveting, tapping, and bending within progressive dies, achieving efficient and high-precision compound production, reducing handling errors and costs. |
|
Risk-Based Thinking Quality Control |
Use tools like FMEA for process risk prevention, combined with automated inspection equipment, to identify and control potential defects early, ensuring delivery quality. |
|
Flexible Response to Different Volume Needs |
The production system has good flexibility, capable of handling medium to large volume orders while also efficiently responding to small-batch, multi-variety R&D prototyping needs. |
4．Precision Stamping Parts Product Specification
|
Specification Item |
Detail / Range |
Tolerance / Standard |
|
Processable Material Thickness |
0.2 — 8.0 mm |
Covering most industrial applications |
|
Standard Dimensional Accuracy |
±0.05 mm |
Meeting general precision requirements |
|
Typical Flatness |
0.08 mm / 100 mm |
Can be tightened upon request |
|
Maximum Part Size (Length) |
500 mm |
Equipment dependent |
|
Burr Control Level |
≤ 0.05 mm |
Meeting常规 assembly requirements |
|
Minimum Hole Diameter (Recommended) |
0.5 mm |
Ensuring hole wall quality |
|
Surface Treatment Options |
Zinc plating, phosphating, powder coating, etc. |
Providing anti-corrosion and decorative solutions |
5.Precision Stamping Parts Product Application
Our parts are widely used in scenarios requiring reliability and durability:
Automotive Powertrain & Chassis: Sensor shims for transmissions, ABS tone wheels, bushing components for mounts, needing to withstand high grease, vibration, and temperature variations.
Body Electronics & Electrical Architecture: Spring contacts for fuse box terminals, actuator parts for door locks, fixing brackets for wiring harnesses, requiring good electrical contact and mechanical retention.
Industrial Motors & Drives: Mounting plates for servo motor encoders, heat sinks for frequency converters, housings for industrial connectors, focusing on mounting accuracy and heat dissipation efficiency.
Power Control & Protection: Tripping mechanism parts for circuit breakers, contact support pieces for contactors, terminal blocks, requiring high precision to ensure electrical safety and reliability.
6. Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
