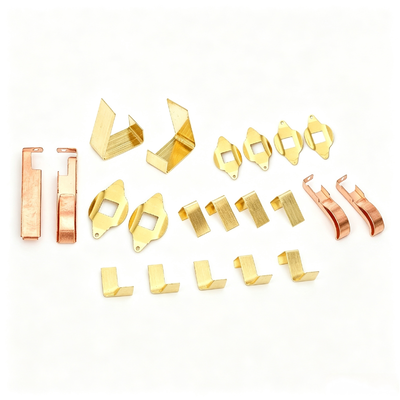

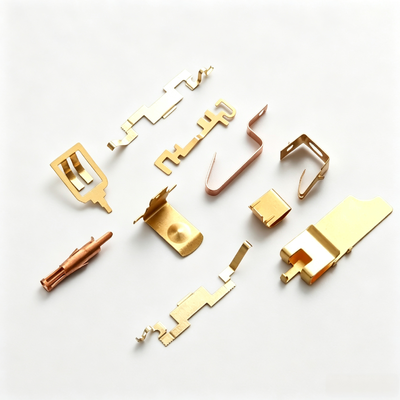

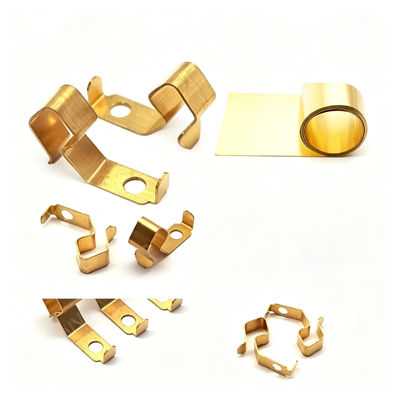

Precision Stamped Battery Contacts – Low Resistance Phosphor Bronze for Portable Medical Devices
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.07-0.23USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Product Type | Medical-Grade Battery Contacts / Portable Device Battery Tabs / Low-Resistance Contact Springs | Main Material | Phosphor Bronze C5191 / Phosphor Bronze C5210 / Gold-Plated Steel |
|---|---|---|---|
| Material Thickness | 0.08-0.12mm / 0.12-0.18mm / 0.18-0.25mm | Process Type | Precision Progressive Die Stamping / Bending Forming / Stress Relief Heat Treatment / Pre-plating Treatment |
| Surface Finish | Gold Plating / Silver Plating / Nickel Plating | Contact Resistance | ≤5mΩ / ≤10mΩ |
| Contact Force | 0.3-0.8N / 0.8-1.5N | Application Industry | Portable Medical Devices / Home Medical Instruments / Wearable Health Devices |
| Highlight | Precision stamped battery contacts,Low resistance phosphor bronze contacts,Medical device battery contacts |
||
Product Description
Precision Stamped Battery Contacts – Low Resistance Phosphor Bronze for Portable Medical Devices
Tingfeng Hardware provides precision stamped battery contacts specifically designed for portable medical devices, manufactured from high-conductivity phosphor bronze through precision stamping and selective gold plating processes. The contacts offer ultra-low contact resistance (≤5mΩ) and stable elastic force, ensuring reliable battery connections for medical devices. With 16 years of precision manufacturing experience, products meet the stringent requirements of medical devices for component consistency and long-term reliability.
Product Overview
Portable medical devices (such as glucose meters, portable monitors, and infusion pumps) have extremely high requirements for battery connection reliability. Our precision stamped battery contacts use phosphor bronze substrate with gold plating surface treatment, controlling contact resistance stably below 5mΩ, ensuring stable power supply under low-voltage, micro-current operating conditions. The contacts feature precisely designed force values (0.5-1.5N), maintaining reliable battery-to-PCB connection even during device drops or vibration. Each contact undergoes 100% contact resistance testing and force inspection, suitable for battery compartment connections in various portable medical devices.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| Ultra-low contact resistance | Gold plating controls contact resistance below 5mΩ, ensuring stable micro-current transmission |
| Anti-vibration spring design | Optimized arm structure maintains reliable contact during device drops or vibration |
| Biocompatible materials | Phosphor bronze and gold plating meet medical device biocompatibility requirements |
| High-consistency batch production | Full-process SPC monitoring ensures consistent contact performance across large batches |
| 100% electrical performance testing | Each contact undergoes contact resistance and force testing, ensuring medical-grade reliability |
Product Specifications
| Specification Item | Detail / Range | Tolerance / Standard |
|---|---|---|
| Material Type | Phosphor Bronze C5191 | Conductivity ≥15% IACS |
| Material Thickness | 0.08 mm -- 0.25 mm | ±0.005mm |
| Contact Resistance | ≤ 5 mΩ (Gold) | Measured |
| Contact Force | 0.5 N -- 1.5 N | ±10% |
| Surface Finish | Gold / Silver / Nickel Plating | Thickness controlled |
| Operating Temperature | -40°C -- +120°C | Medical Grade |
| Salt Spray Test | ≥ 48 hours | No corrosion |
| Packaging | Tape & Reel / Anti-static Packaging | As required |
Product Applications
- Glucose Meters: Glucose meter battery contact shrapnel, test strip port connection terminals
- Portable Monitors: Portable ECG monitor battery contacts, handheld pulse oximeter battery connector tabs
- Infusion Pumps: Portable infusion pump battery contact tabs, infusion device battery connection springs
- Home Medical: Digital thermometer battery contacts, blood pressure monitor battery connector tabs, oxygen concentrator control board battery springs
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
