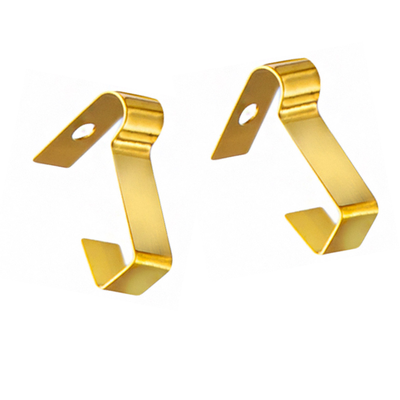

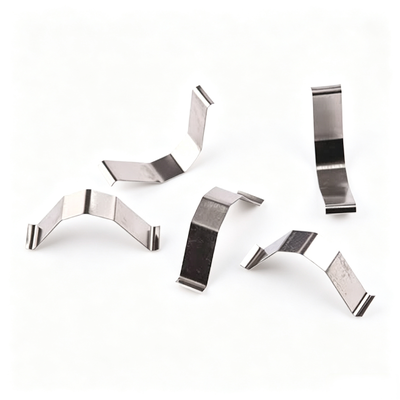

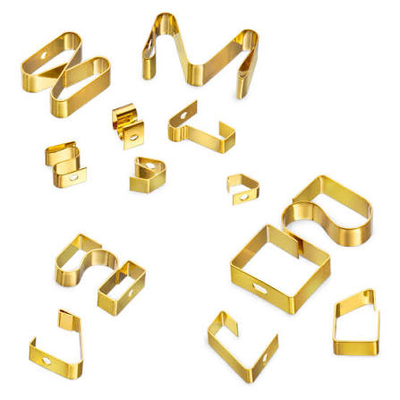

Ultra-Miniature Custom Stamped Spring Contacts for PCB Assemblies – Hard-to-Make Micro Parts
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.07-0.23USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Product Type | Custom Ultra-Miniature Spring Contacts / Hard-to-Make PCB Assembly Terminals / Micro Elastic Contacts | Main Material | Stainless Steel 301 / Phosphor Bronze / Beryllium Copper |
|---|---|---|---|
| Material Thickness | 0.03-0.06mm / 0.06-0.1mm / 0.1-0.15mm | Process Type | Micro Progressive Die Stamping / Complex Micro Forming / Bending / Selective Gold Plating |
| Surface Finish | Gold Plating / Nickel Plating / Passivation | Contact Resistance | ≤10mΩ / ≤20mΩ |
| Tolerance Grade | Ultra-High-Precision (±0.005mm) / High-Precision (±0.01mm) | Cycle Life | ≥100,000 Cycles / ≥300,000 Cycles |
| Highlight | custom stamped spring contacts,ultra-miniature PCB spring contacts,hard-to-make micro stamped parts |
||
Product Description
Ultra-Miniature Custom Stamped Spring Contacts for PCB Assemblies
Tingfeng Hardware provides ultra-miniature custom stamped spring contacts for PCB assemblies, specializing in hard-to-make micro parts. We work with materials as thin as 0.03mm, hold tolerances to ±0.005mm, apply selective gold plating, and control contact resistance to ≤10mΩ. With 16 years of precision manufacturing experience, we support 5–7 day rapid prototyping and high-consistency mass production. The triple pressure of extreme dimensions, cost, and iteration speed in miniaturized electronic assemblies is exactly what our process and commercial model are designed for.
Product Overview
Ultra-miniature spring contacts in PCB assemblies must provide stable elastic contact within fractions of a millimeter. Our ultra-miniature custom contacts use 0.03–0.15mm thin materials, micro-precision stamped, with selective gold plating controlling contact resistance below 10mΩ — exactly the realm many stamping factories view as hard-to-make and avoid. On the commercial side, miniaturized assemblies are a market that relentlessly pursues smaller, thinner, and lighter products while remaining highly price-sensitive. Clients need more than a supplier that "can make it small" — they need a partner that maintains batch consistency at extreme dimensions and offers flexible commercial terms.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| 0.03mm ultra-thin hard-to-make stamping | Meets extreme compact spaces of PCB assemblies without compromising elastic life |
| Ultra-miniature customization | Contact shape customized to client's PCB layout, adapting to different miniaturization solutions |
| ±0.005mm ultra-high precision | Precise positioning of ultra-miniature contacts, ensuring reliable mating |
| Selective gold plating | Gold on signal areas, balancing low contact resistance with consumer electronics cost |
| High-consistency mass production | Full-process SPC monitoring, ensuring batch stability at extreme dimensions |
Product Specifications
| Specification Item | Detail / Range | Tolerance / Standard |
|---|---|---|
| Material Type | Stainless Steel 301 / Phosphor Bronze | Per drawing |
| Material Thickness | 0.03 mm – 0.15 mm | ±0.003mm |
| Contact Resistance | ≤ 10 mΩ (Gold) | Measured |
| Contact Force | 0.1 N – 0.8 N | ±15% |
| Dimensional Accuracy | ±0.005mm – ±0.01mm | Per drawing |
| Cycle Life | ≥ 100,000 | Force decay <15% |
| Surface Finish | Selective Gold / Nickel Plating | Thickness controlled |
| Operating Temperature | -20°C – +70°C | Consumer Grade |
Product Applications
PCB Assemblies: Charging case internal contact springs, micro sensor terminals, control board signal contacts
Micro Electronic Devices: Earbud charging contacts, wearable module connector tabs, miniaturized power terminals
Precision Modules: Micro actuator contacts, sensor signal springs, micro switch contacts
Consumer Electronics: Portable audio device charging springs, smart accessory internal connection terminals
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3–5 days, often helping clients achieve 15–30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows a 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3–7 days for prototypes, 7–15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with a 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with a mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
