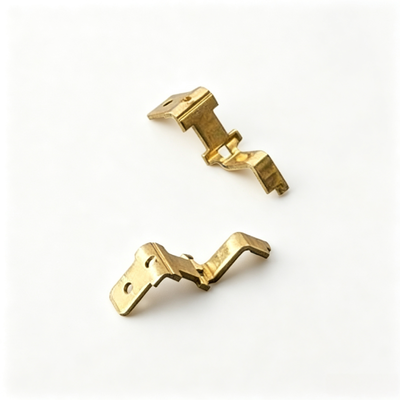

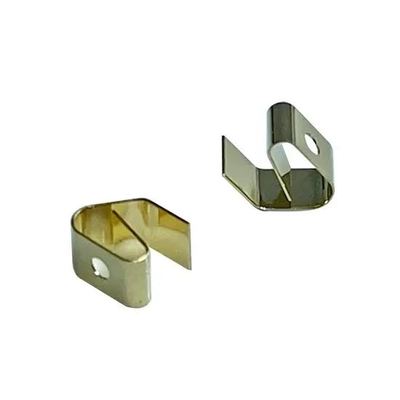

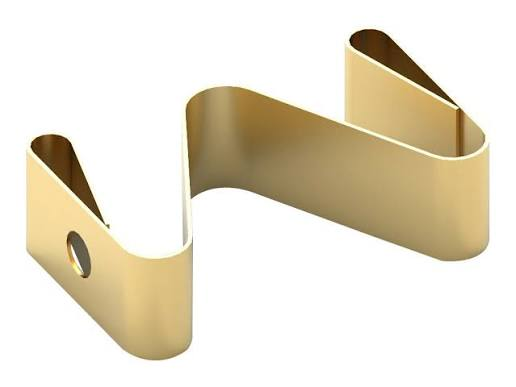

Hard-to-Make Stamped Busbar Contact Springs for Energy Storage BMS – Flexible Connection
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.07-0.23USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Product Type | Hard-to-Make BMS Busbar Contact Springs / Energy Storage Battery Flexible Connection Contacts / Sense Terminal Springs | Main Material | Copper Alloy / Pure Copper / Beryllium Copper |
|---|---|---|---|
| Material Thickness | 0.2-0.4mm / 0.4-0.6mm / 0.6-1.0mm | Process Type | Progressive Die Stamping / Bending Forming / Flexible Elastic Structure / Embossing / Trimming |
| Surface Finish | Tin Plating / Nickel Plating / Silver Plating | Contact Resistance | ≤5mΩ / ≤10mΩ |
| Rated Current | 50A / 100A / 200A / 300A | Operating Temperature | -40°C To +105°C / -40°C To +125°C |
| Highlight | Stamped busbar contact springs,Flexible busbar connection springs,Precision stamped BMS springs |
||
Product Description
Tingfeng Hardware provides hard-to-make stamped busbar contact springs for energy storage BMS, using copper alloy with tin plating. These flexible connection springs deliver contact resistance ≤10mΩ, rated current 50A–300A, and 0.5–2.0mm elastic travel to absorb charge-discharge thermal expansion. With 16 years of precision manufacturing experience, we understand that energy storage systems demand long-cycle reliability and full lifecycle cost far beyond ordinary consumer electronics — our flexible connection solution is engineered for this commercial logic.
Product Overview
Energy storage batteries undergo significant thermal expansion during charge-discharge cycles, and rigid connection points can loosen or fatigue-fracture over long-term cycling. Our busbar springs provide electrical connections through flexible elastic structures, maintaining stable contact force over a 0.5–2.0mm displacement range — a hard-to-make requirement that many traditional stamping factories struggle to achieve consistently.
On the commercial side, energy storage projects typically have design lives exceeding 10 years and extremely low O&M tolerance. When selecting connection solutions, clients look beyond initial unit price to lifecycle failure risk and maintenance cost. Our 100% contact resistance and elastic travel testing, along with traceable batch management, are designed to reduce long-term O&M uncertainty for our clients.
Precision metal stamping parts manufacturing process
Features & Advantages
| Feature | Advantage to You |
|---|---|
| Flexible elastic connection structure | Absorbs charge-discharge thermal expansion, preventing rigid connection fatigue fracture |
| 0.5–2.0mm elastic travel | Compensates assembly tolerances and operating displacement, reducing long-term loosening risk |
| Copper alloy high conductivity + tin plating | Contact resistance ≤10mΩ, supports 50A–300A, oxidation resistant |
| 100% elastic travel and resistance testing | Reduces connection failure uncertainty over energy storage system lifecycle |
| Batch traceability management | Meets quality traceability requirements for critical connection components in energy storage projects |
Precision metal stamping parts quality inspection
Product Specifications
| Specification Item | Detail / Range | Tolerance / Standard |
|---|---|---|
| Material Type | Copper Alloy / Pure Copper | Conductivity ≥80% IACS |
| Material Thickness | 0.2 mm – 1.0 mm | ±0.005mm |
| Contact Resistance | ≤ 10 mΩ | Measured |
| Rated Current | 50A – 300A | Design dependent |
| Elastic Travel | 0.5 mm – 2.0 mm | Design dependent |
| Surface Finish | Tin / Nickel / Silver Plating | Thickness controlled |
| Operating Temperature | -40°C – +125°C | Energy Storage Grade |
| Salt Spray Test | ≥ 96 hours | No corrosion |
Product Applications
Residential Energy Storage
Wall-mounted storage battery module busbar springs, stacked battery connection contacts.
Commercial & Industrial Storage
Containerized storage battery cluster connection springs, PCS DC-side contacts.
Grid-Side Storage
Energy storage plant battery module flexible connections, BMS balancing sense terminals.
Telecom Backup Power
Base station storage battery connection springs, 48V DC bus contacts.
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3–5 days, often helping clients achieve 15–30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows a 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3–7 days for prototypes, 7–15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with a 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with a mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
