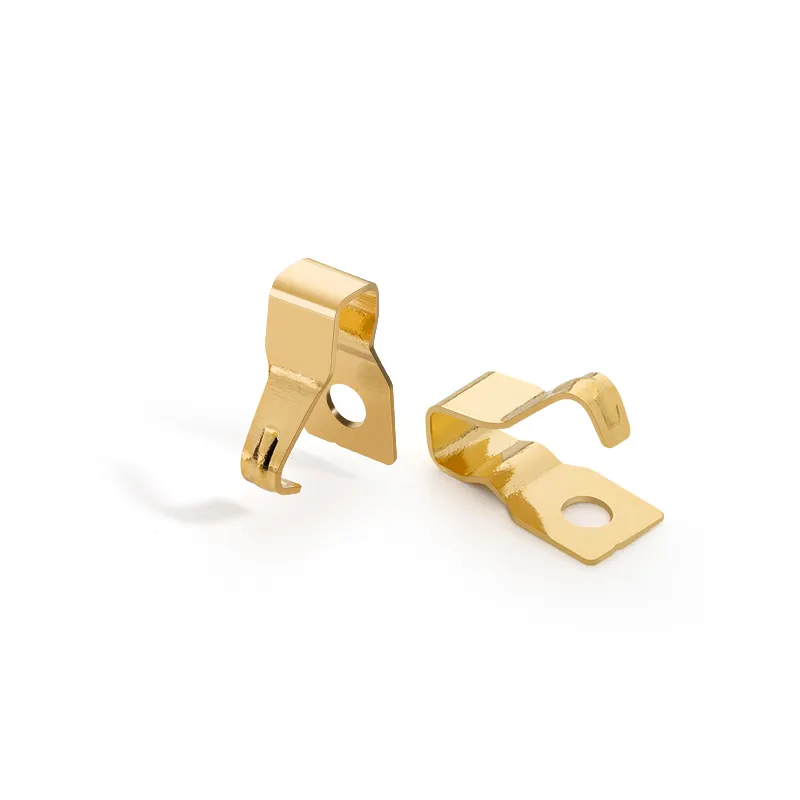

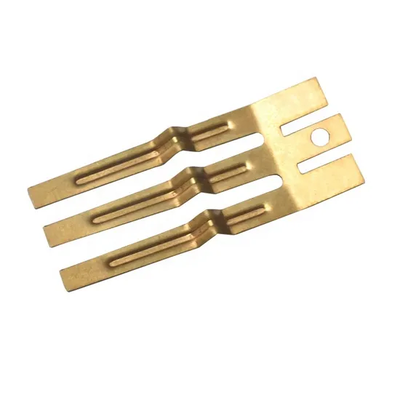

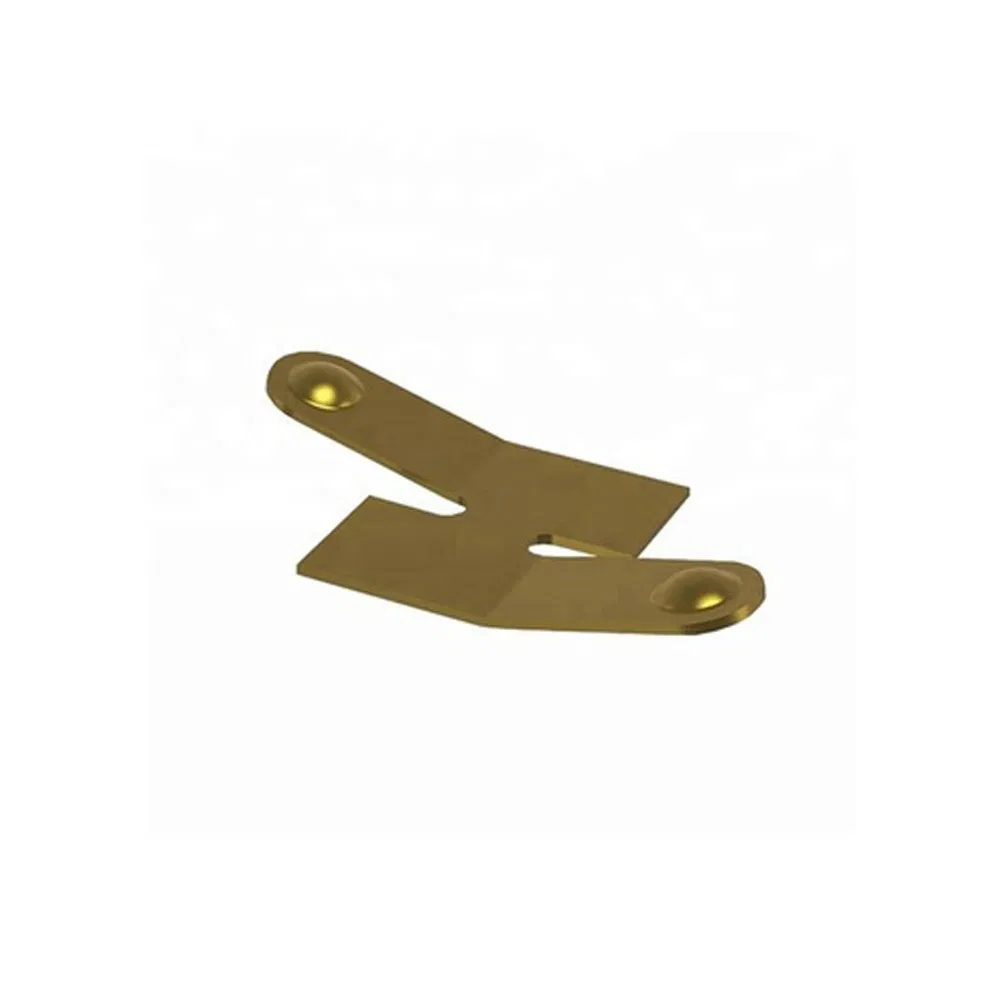

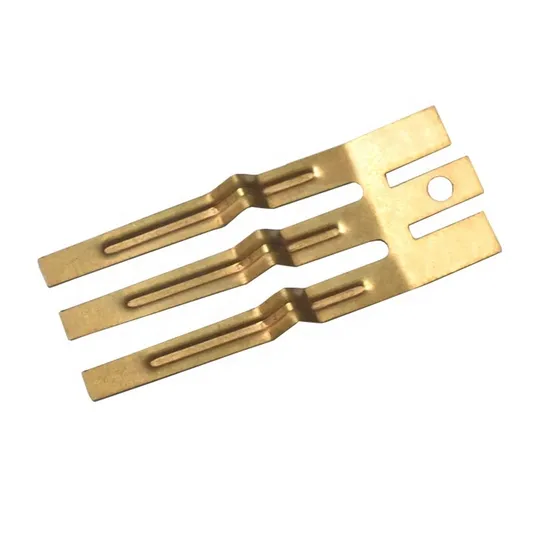

Custom Stamped Battery Contact Springs for Electronic Lock Modules – Selective Gold Plated
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.07-0.23USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Product Type | Custom Electronic Lock Battery Contact Springs / Access Control Module Elastic Terminals / Selective Gold Plated Stamped Contacts | Main Material | Stainless Steel 301 / Phosphor Bronze C5191 / Beryllium Copper |
|---|---|---|---|
| Material Thickness | 0.05-0.1mm / 0.1-0.15mm / 0.15-0.2mm | Process Type | Precision Progressive Die Stamping / Bending Forming / Selective Gold Plating / Non-Standard Customization |
| Surface Finish | Selective Gold Plating / Nickel Plating / Passivation | Contact Resistance | ≤10mΩ / ≤20mΩ |
| Contact Force | 0.3-0.8N / 0.8-1.5N | Cycle Life | ≥50,000 Cycles / ≥100,000 Cycles |
| Highlight | Custom Stamped Battery Contact Springs,Gold Plated Battery Contact Springs,Precision Stamped Electronic Lock Springs |
||
Product Description
Tingfeng Hardware provides custom stamped battery contact springs for electronic lock modules, specializing in selective gold plating and compact-space elastic contact. Built on stainless steel 301 or phosphor bronze substrates, these springs deliver contact resistance ≤10mΩ with an adjustable contact force of 0.3–1.5N.
With 16 years of precision manufacturing experience, our 5–7 day rapid prototyping matches the fast iteration pace of electronic lock and access control products. Our core value lies in helping clients find the right balance between battery contact reliability and precious metal cost for consumer-grade security volumes.
Product Overview
Electronic lock modules — including smart door locks, password locks, and access control boards — have extremely compact internal spaces. Battery contact springs must provide stable contact force within limited travel while resisting micro-vibration from frequent open/close cycles.
Our springs use stainless steel 301 (balancing elasticity and corrosion resistance) or phosphor bronze (high conductivity), achieving precise spring arm geometry through precision stamping. Selective gold plating applied only to battery contact areas ensures ≤10mΩ contact resistance while controlling precious metal usage, avoiding the cost waste of full-surface gold plating.
For different battery compartment layouts and PCB mating methods, we provide non-standard customized spring shape and contact force design, ensuring reliable contact in compact spaces. Each batch undergoes contact resistance and force testing, making these springs suitable for smart door lock battery compartments, access control board power contacts, and electronic lock backup battery connections.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| Selective gold plating | Gold only on battery contact areas, ≤10mΩ contact resistance while controlling precious metal cost |
| Non-standard spring geometry customization | Spring shape tailored to the battery compartment layout of electronic lock modules, adapting to different brand structures |
| Compact-space elastic design | 0.05–0.2mm thin material stamping, providing 0.3–1.5N stable contact force within limited travel |
| 5–7 day rapid prototyping | Matches rapid iteration of electronic lock products, shortening R&D validation cycles |
| Stainless steel 301 / phosphor bronze dual material options | Balances elastic life and conductivity, adapting to different cost and performance requirements |
Product Specifications
| Specification Item | Detail / Range | Tolerance / Standard |
|---|---|---|
| Material Type | Stainless Steel 301 / Phosphor Bronze C5191 / Beryllium Copper | Per drawing |
| Material Thickness | 0.05 mm – 0.2 mm | ±0.005mm |
| Contact Resistance | ≤ 10 mΩ (Gold) | Measured |
| Contact Force | 0.3 N – 1.5 N | ±15% |
| Cycle Life | ≥ 50,000 | Force decay <15% |
| Surface Finish | Selective Gold / Nickel Plating | Thickness controlled |
| Operating Temperature | -20°C – +70°C | Consumer Grade |
| Salt Spray Test | ≥ 48 hours | No corrosion |
Product Applications
- Smart Door Locks: Battery compartment positive/negative contact springs, backup battery connection terminals, low-battery detection contacts
- Password / Electronic Locks: Keypad backlight power contacts, main board battery mating springs, emergency power contacts
- Access Control Modules: Access control reader battery terminals, electric lock power contacts, backup battery connector tabs
- Electronic Lock PCBs: Elastic interconnect springs between battery compartment and main board, power distribution contacts
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3–5 days, often helping clients achieve 15–30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows a 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3–7 days for prototypes, 7–15 days for mass production. We offer VIP prioritization that cuts lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with a 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with a mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
