Custom PCB Grounding Shrapnel – Stainless Steel Stamping for Circuit Board Grounding
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.07-0.23USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Product Type | PCB Grounding Shrapnel / Circuit Board Grounding Clips / ESD Grounding Contacts | Main Material | Stainless Steel 301 / Stainless Steel 304 / Beryllium Copper |
|---|---|---|---|
| Material Thickness | 0.1-0.2mm / 0.2-0.3mm / 0.3-0.4mm | Process Type | Progressive Die Stamping / Bending Forming / Embossing / Trimming |
| Surface Finish | Tin Plating / Gold Plating / Passivation / Natural | Grounding Resistance | ≤10mΩ / ≤20mΩ |
| Clamping Force | 0.5-1.5N / 1.5-3.0N | PCB Thickness Compatibility | 0.8mm / 1.0mm / 1.2mm / 1.6mm |
| Highlight | Custom PCB grounding shrapnel,Stainless steel circuit board grounding,Precision stamped PCB grounding parts |
||
Product Description
Custom PCB Grounding Shrapnel – Stainless Steel Stamping for Circuit Board Grounding
Tingfeng Hardware provides custom PCB grounding shrapnel, manufactured from stainless steel 301 through precision stamping and bending forming processes. The shrapnel is used for circuit board grounding connections, EMI shielding grounding, and ESD electrostatic discharge protection, ensuring electromagnetic compatibility and reliability of electronic devices. With 16 years of precision manufacturing experience, products comply with ISO 9001 and RoHS standards, with custom designs supported per drawings.
Product Overview

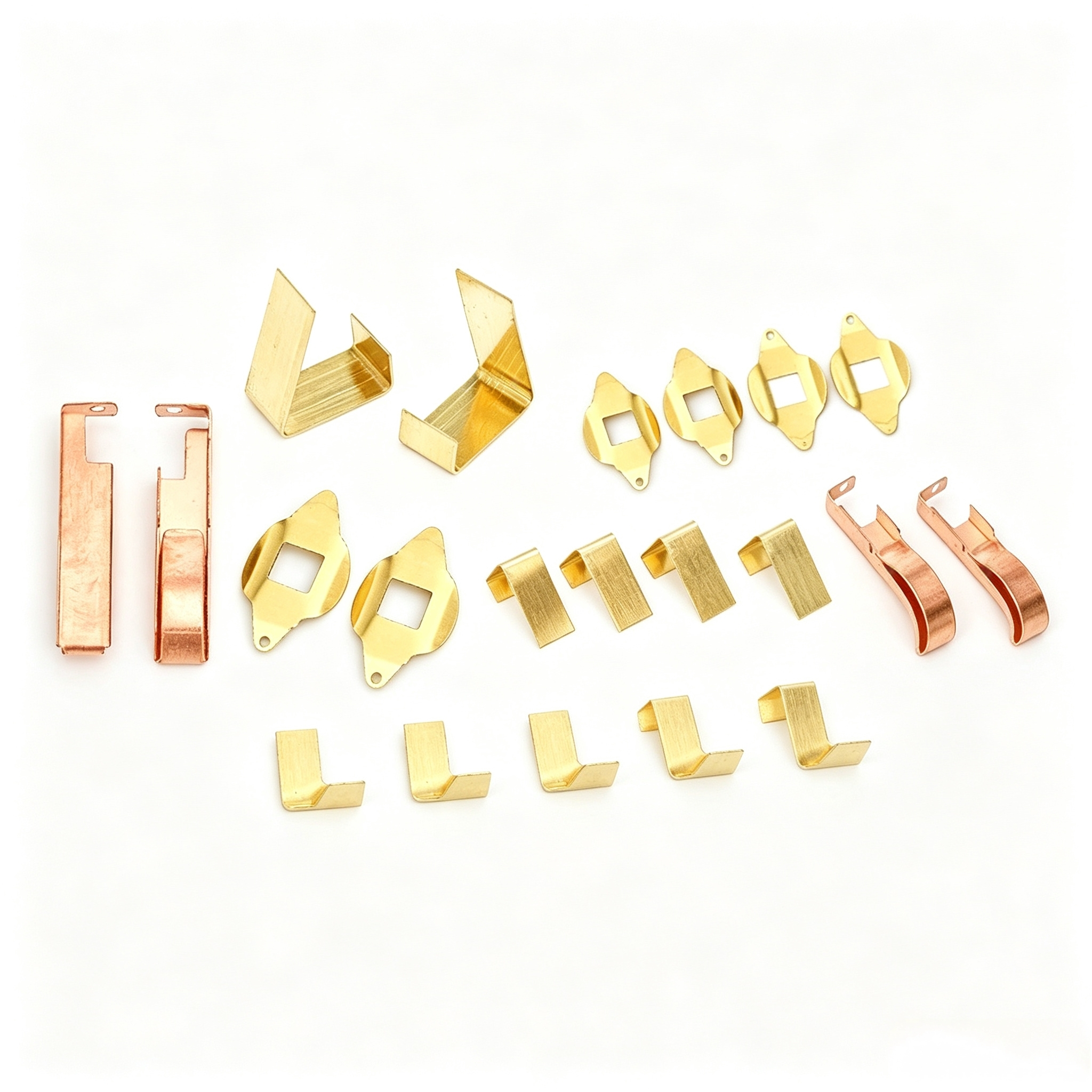

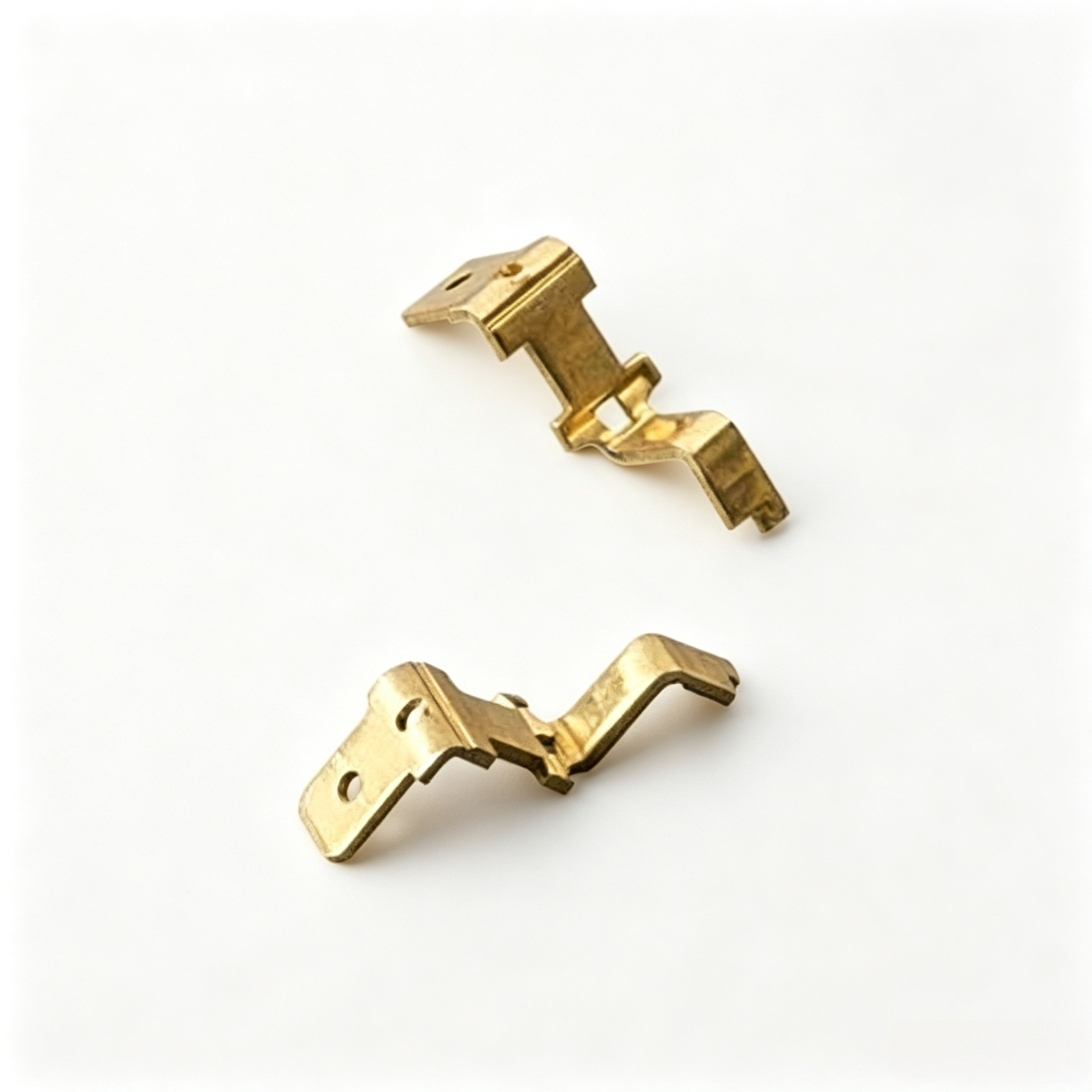

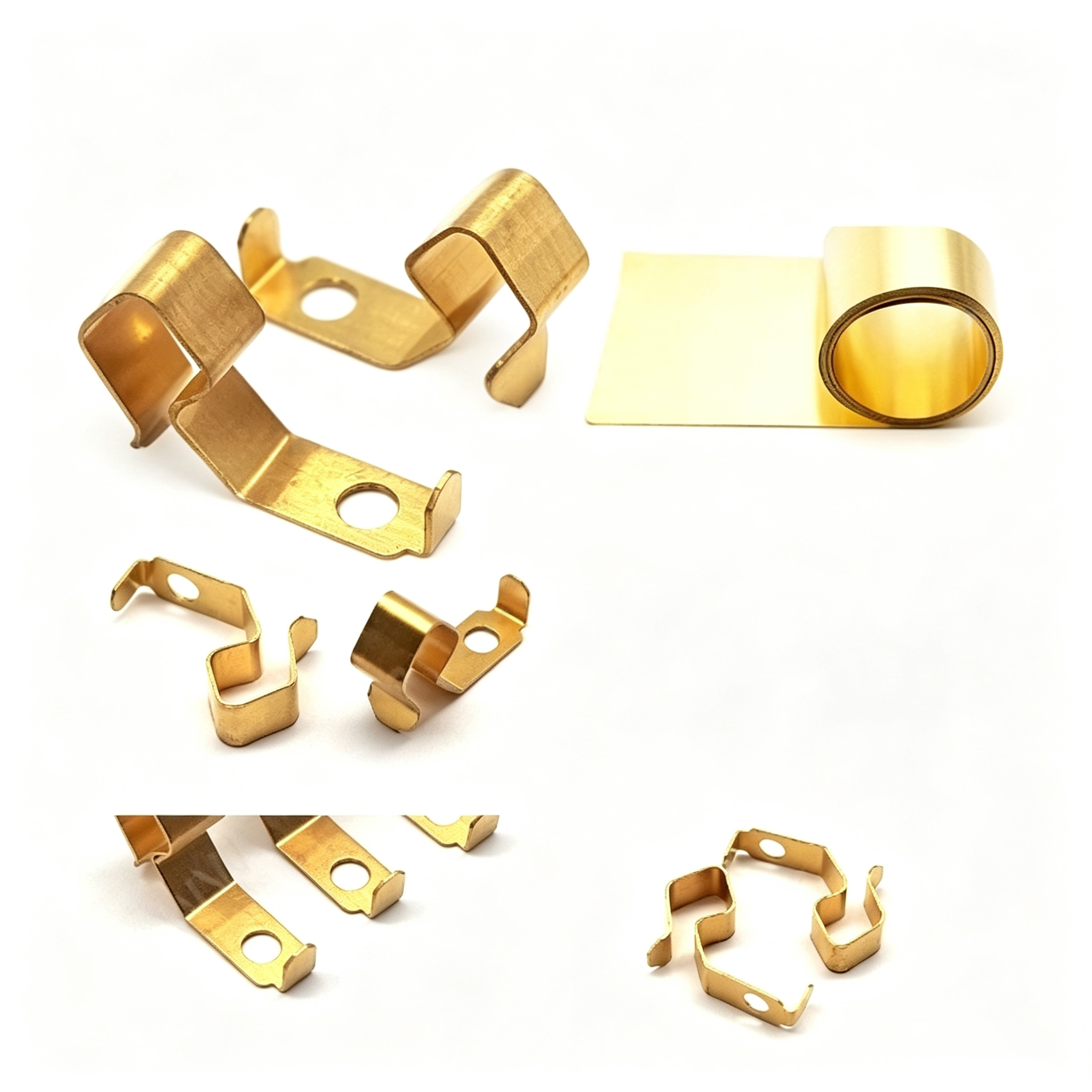

PCB grounding shrapnel are key components for achieving low-impedance grounding connections between circuit boards and chassis/shielding covers in electronic devices. Our shrapnel uses stainless steel 301 (combining elasticity and strength), formed into U-shape, L-shape, or custom shapes through precision stamping, fitting along PCB edges or mounting holes for grounding. Tin or gold plating ensures low grounding resistance (≤10mΩ) and oxidation resistance. The shrapnel design provides stable clamping force, maintaining reliable grounding connections even during device vibration or temperature changes. Each shrapnel undergoes 100% dimensional inspection and grounding resistance testing, suitable for various electronic modules requiring EMC/EMI protection.
Features & Advantages
| Feature | Advantage to You |
|---|---|
| Low grounding resistance | Tin/gold plating controls grounding resistance below 10mΩ, ensuring EMI shielding effectiveness |
| Stable clamping force | Optimized spring shape maintains reliable grounding in vibration environments |
| PCB edge/mounting hole compatibility | U-shape/L-shape designs compatible with PCB edge grounding and screw mounting hole grounding |
| Stainless steel spring material | Excellent fatigue resistance and corrosion resistance, stable force over long-term use |
| Multiple surface finishes | Tin/gold/passivation options, meeting different soldering and corrosion protection requirements |
Product Specifications
| Specification Item | Detail / Range | Tolerance / Standard |
|---|---|---|
| Material Type | Stainless Steel 301 / Stainless Steel 304 | Tensile ≥1200MPa |
| Material Thickness | 0.1 mm -- 0.4 mm | ±0.005mm |
| Grounding Resistance | ≤ 10 mΩ | Measured |
| Clamping Force | 0.5 N -- 3.0 N | ±15% |
| Surface Finish | Tin / Gold / Passivation | Thickness controlled |
| Operating Temperature | -40°C -- +125°C | Stainless steel property |
| Salt Spray Test | ≥ 48 hours | No corrosion |
| Packaging | Tape & Reel / Bulk | As required |
Product Applications
- PCB Edge Grounding: PCB edge grounding clips, slot-type grounding shrapnel, board-edge shield grounding contacts
- EMI Shielding Grounding: Shield can grounding shrapnel, EMI shielding clips, conductive foam alternative grounding shrapnel
- ESD Protection: ESD grounding clips, anti-static workstation grounding shrapnel, electrostatic discharge protection contacts
- Equipment Grounding: Chassis grounding shrapnel, power grounding clips, signal ground connection springs
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
