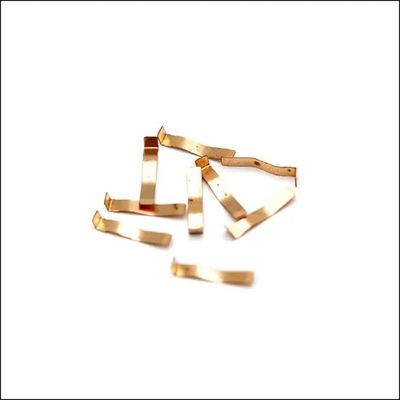

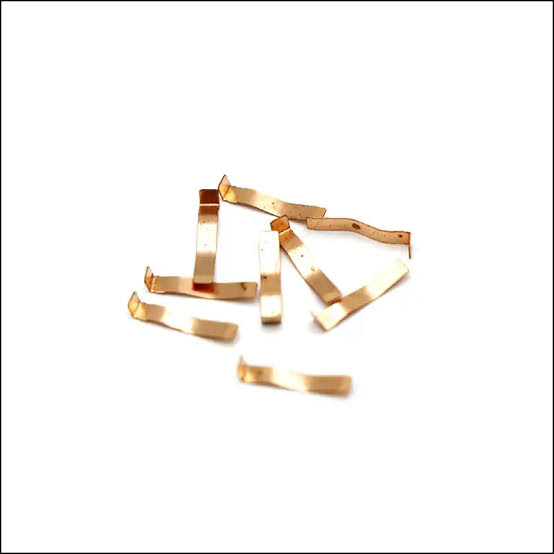

Custom Stamped Sensor Contacts – Beryllium Copper Precision Stamping for Medical Devices
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-001 |
| Minimum Order Quantity | 1 |
| Price | 0.07-0.23USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Product Type | Sensor Contacts / Medical Sensor Contacts / Signal Terminals | Main Material | Beryllium Copper C17200 / Stainless Steel 316L / Titanium Alloy |
|---|---|---|---|
| Material Thickness | 0.05-0.15mm / 0.15-0.3mm / 0.3-0.5mm | Process Type | Precision Progressive Die Stamping / Fine Blanking / Bending Forming / Stress Relief Heat Treatment |
| Surface Finish | Gold Plating / Silver Plating / Nickel Plating / Passivation | Contact Resistance | ≤5mΩ / ≤10mΩ |
| Tolerance Grade | High-Precision (±0.01mm) / Ultra-High-Precision (±0.005mm) | Certification | ISO 9001 / RoHS / REACH |
| Highlight | Beryllium Copper sensor contacts,Custom stamped medical device contacts,Precision stamped sensor components |
||
Product Description
Custom Stamped Sensor Contacts – Beryllium Copper Precision Stamping for Medical Devices
Tingfeng Hardware provides custom stamped sensor contacts using beryllium copper and medical-grade stainless steel materials specifically engineered for medical devices and diagnostic instruments. Our contacts undergo precision progressive die stamping and stress relief heat treatment, achieving micron-level dimensional accuracy and ultra-low contact resistance. With 16 years of precision manufacturing experience, we deliver high-reliability stamped contact solutions for medical sensors, diagnostic equipment, and implantable devices.
Product Description
Medical device sensor contacts demand exceptional precision, reliability, and biocompatibility. Our beryllium copper contacts achieve precise contact geometries and stable elastic force through precision stamping forming. Beryllium copper offers excellent stress relaxation resistance and fatigue resistance, ensuring stable contact force and low contact resistance over millions of use cycles. Gold plating controls contact resistance below 5mΩ, ensuring accurate transmission of weak biosignals. Each contact undergoes 100% force testing and dimensional inspection, making them suitable for hearing aids, cardiac monitors, neurostimulators, and other critical medical devices.
Product Features & Advantages
| Feature | Advantage to You |
|---|---|
| Beryllium copper high-reliability material | Fatigue life ≥2M cycles, force decay <10%, suitable for implantable and long-term use devices |
| ±0.005mm ultra-high precision | Wire EDM dies and precision stamping achieve micron-level dimensional control |
| Ultra-low contact resistance | Gold plating stabilizes contact resistance below 5mΩ, ensuring accurate weak signal transmission |
| Biocompatible materials | Beryllium copper and 316L stainless steel meet medical-grade biocompatibility requirements |
| Full traceability | Complete batch traceability from raw material to finished product, with full inspection reports |
Product Specifications
| Specification Item | Detail / Range | Tolerance / Standard |
|---|---|---|
| Material Type | Beryllium Copper C17200 / Stainless Steel 316L / Titanium Alloy | Medical Grade |
| Material Thickness | 0.05 mm – 0.5 mm | ±0.005mm |
| Contact Resistance | ≤ 5 mΩ (Gold) | Measured |
| Fatigue Life | ≥ 2,000,000 cycles | Force decay <10% |
| Dimensional Accuracy | ±0.005mm – ±0.01mm | Per drawing |
| Surface Finish | Gold / Silver / Passivation | Thickness controlled |
| Biocompatibility | ISO 10993 Customizable | Per customer requirement |
| Packaging | Tape & Reel / Anti-static Packaging | As required |
Product Applications
- Diagnostic Equipment: Ultrasound probe sensor contacts, ECG electrode connection terminals, EEG sensor contacts
- Implantable Devices: Pacemaker connection terminals, neurostimulator electrode contacts, implantable sensor signal terminals
- Monitoring Equipment: Patient monitor sensor contacts, pulse oximeter probe connection terminals, temperature sensor contact tabs
- Hearing Devices: Hearing aid battery contacts, acoustic sensor connection terminals, volume control contacts
Frequently Asked Questions
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
