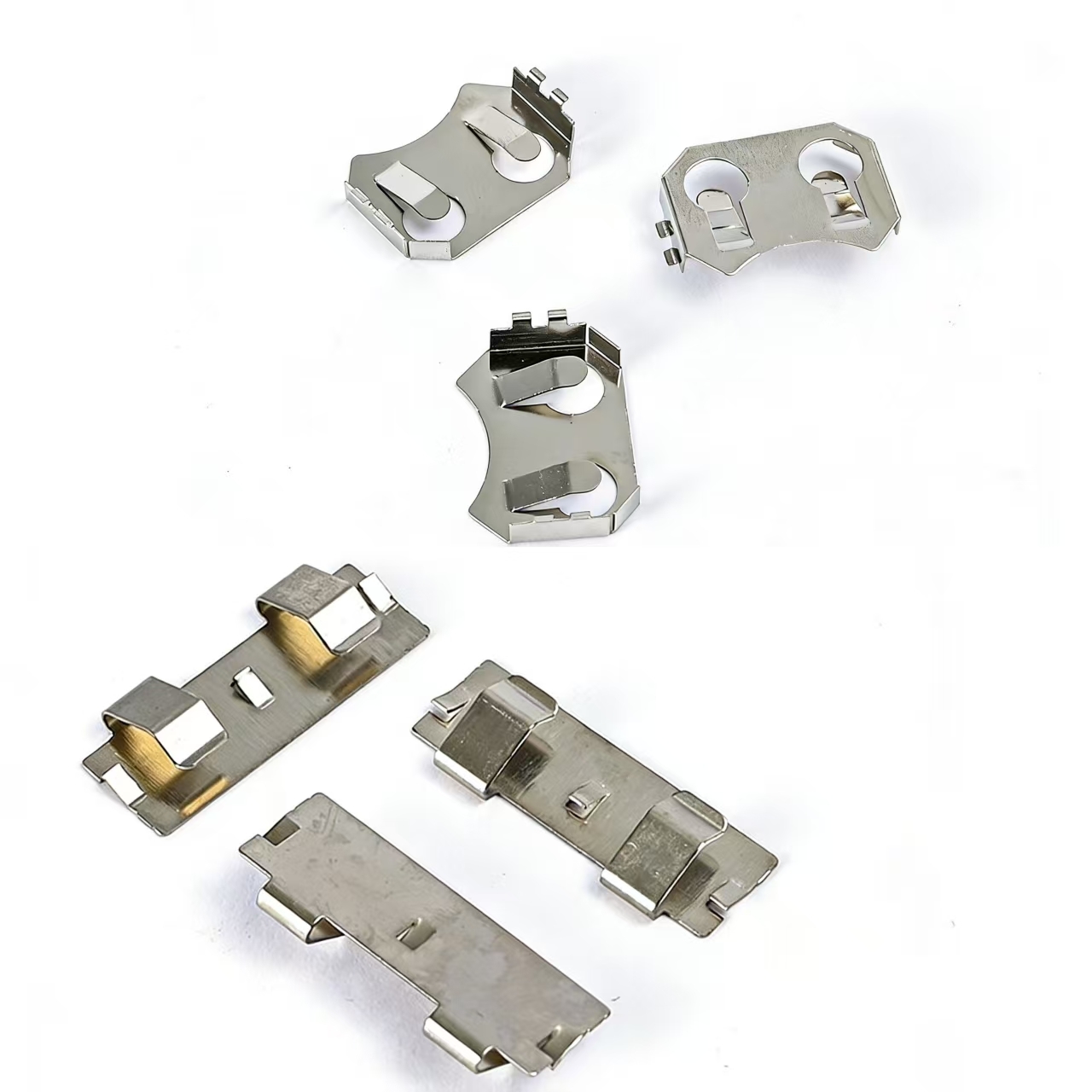

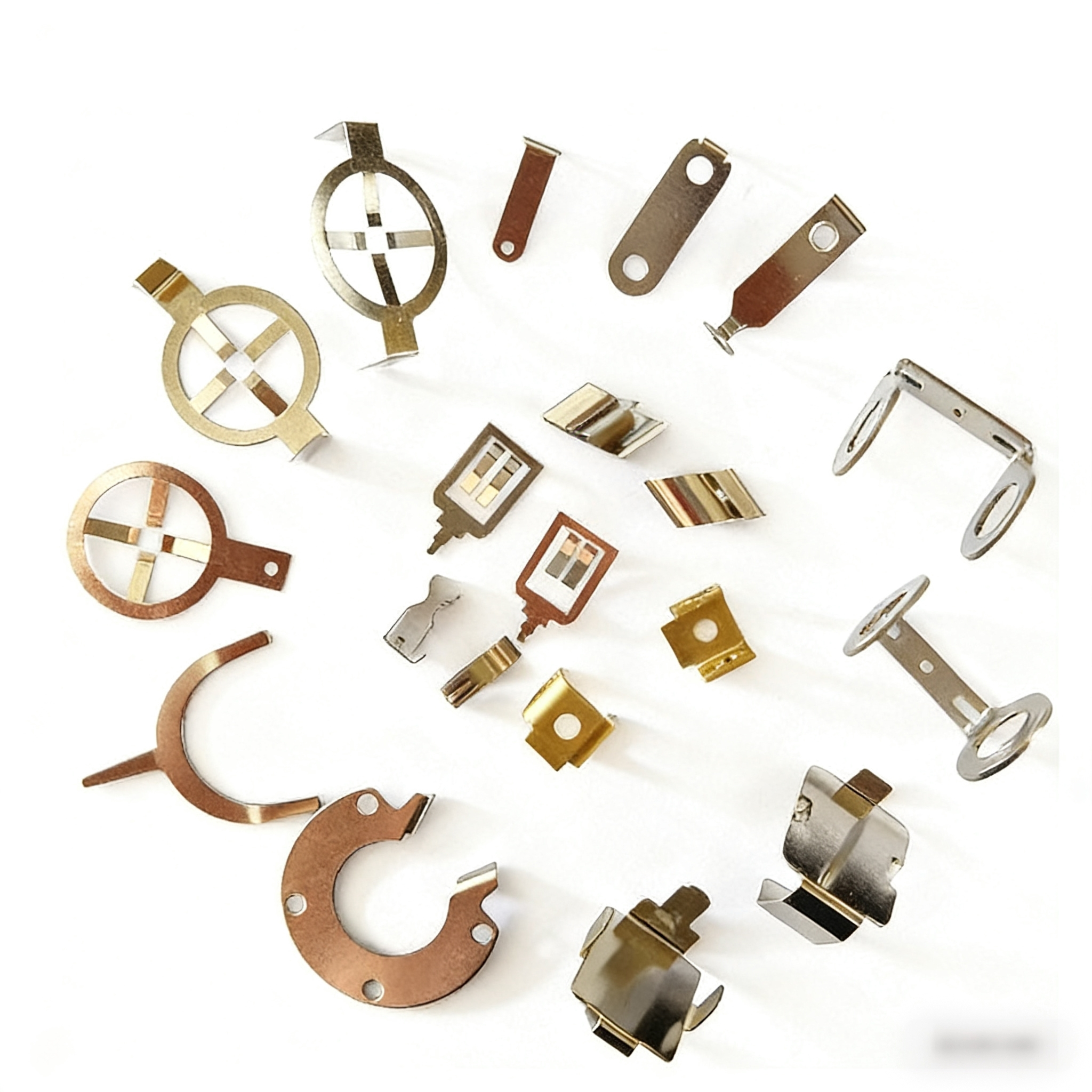

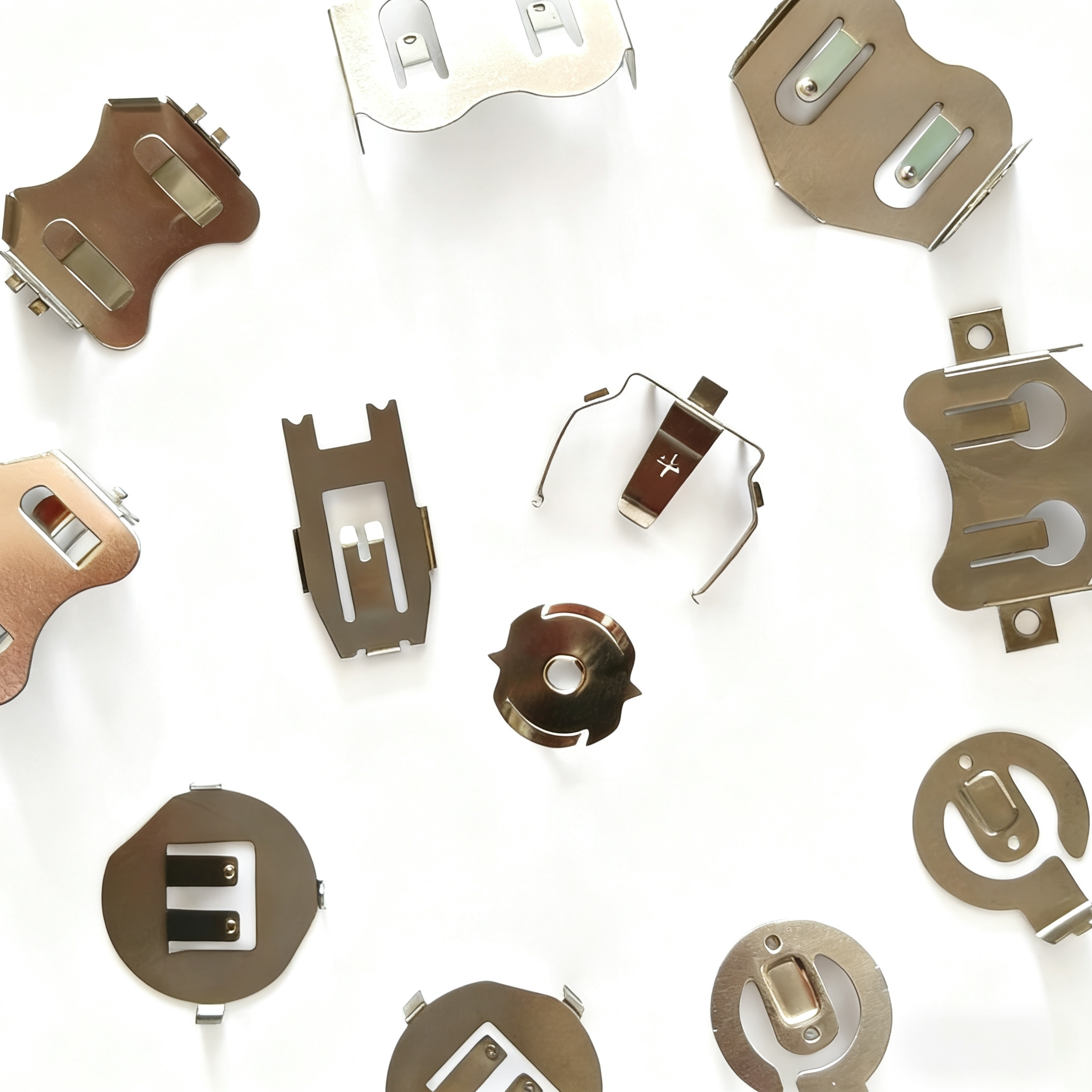

Custom Battery Contact Springs / Contact Fingers - High Precision Stamping
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-009 |
| Minimum Order Quantity | 1 |
| Price | 0.07-0.23USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Product Details
| Product Type | Custom Battery Contact Springs / Charging Springs / Positive-Negative Springs / Contact Fingers / Spring Clips | Main Material | Beryllium Copper / Titanium Copper / Phosphor Bronze / Stainless Steel 301 |
|---|---|---|---|
| Material Thickness | 0.08-0.12mm / 0.12-0.2mm / 0.2-0.3mm / 0.3-0.4mm | Process Type | Progressive Die Stamping / Multi-slide Forming / Stress Relief Heat Treatment / Pre-plating Treatment |
| Surface Finish | Gold Plating / Silver Plating / Nickel Plating / Tin Plating / Natural | Contact Force (working Height) | 0.2-0.5N / 0.5-1.0N / 1.0-1.5N / 1.5-2.0N |
| Rated Current | 1A / 2A / 3A / 5A | Cycle Life | ≥100,000 Cycles / ≥300,000 Cycles / ≥500,000 Cycles |
| Application Industry | Smart Wearables / Smart Home / Med-Tech / Consumer Electronics | Certification | ISO 9001 / RoHS / REACH |
| Highlight | custom battery contact springs,high precision stamped contact fingers,precision stamped battery springs |
||
Product Description
Custom Battery Contact Springs / Contact Fingers - High Precision Stamping
Precision Stamping Parts Overview
Custom battery contact springs are core connection components for smart portable devices, requiring high elasticity, low resistance, and durability. Tingfeng Hardware uses advanced spring materials like beryllium copper and titanium copper, with progressive die stamping and stress relief heat treatment, ensuring stable contact force after millions of cycles. SMT and through-hole packaging are available, meeting automated assembly needs of smart products. 15 years industry experience, supporting fully customized development according to drawings.
Product Description
Smart wearables and med-tech devices have stringent space and performance requirements for custom battery contact springs. Through FEA optimization of arm shape, contact force of 0.3N-1.5N is achieved within 0.5mm narrow space; multi-point contact design reduces resistance, supporting 3A continuous current. Surface options include gold or silver plating for various corrosive environments. Each spring undergoes 100% force testing, sorted by actual force ±0.1N before shipping, facilitating customer pairing. Custom design and development available based on customer specific space, current, and life requirements.
Product Features & Advantages
| Feature | Advantage to You |
|---|---|
| High-spring materials | BeCu, TiCu ensure force decay <15% after million cycles |
| Precision force grading | Sorted by actual force ±0.1N before shipping, facilitating precision assembly of smart devices |
| Anti-fatigue design | Stress relief and surface strengthening prevent long-term fracture |
| Full-size customization | Optimize the external form based on client space constraints to maximize internal space utilization |
| Lead-free eco process | All processes RoHS compliant, facilitating global market access |
Product Specifications
| Specification Item | Detail / Range | Tolerance / Standard |
|---|---|---|
| Material | BeCu / TiCu / Stainless | Tensile strength ≥1200MPa |
| Thickness | 0.08 mm – 0.4 mm | ±0.005mm |
| Contact Force (working height) | 0.2 N – 2.0 N | ±15% |
| Rated Current | 1 A – 5 A | Temp rise ≤30℃ |
| Working Height Range | 0.5 mm – 2.5 mm | 50% compression |
| Life Cycle | ≥ 500,000 cycles | Resistance change ≤20% |
| Surface Plating | Gold / Silver / Tin | Thickness controlled |
| Packaging | Tape & Reel / Tube / Bulk | As required |
Product Applications
- Advanced Wearables: TWS earbud custom charging springs, smartwatch custom wireless charging springs, AR glasses custom battery contact fingers
- Med-Tech: Portable monitor custom battery contacts, smart bracelet custom charging springs, health monitoring device custom battery connectors
- Smart Home: Smart lock custom battery springs, smart speaker custom charging contacts, robot vacuum custom battery connection springs
- Consumer Electronics: Bluetooth earbud custom charging case springs, tablet custom battery connectors, digital camera custom battery contacts
Frequently Asked Questions
Can you handle complex custom designs and provide design optimization suggestions?
Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
How do you ensure quality consistency and handle defect issues?
We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
What are your lead times and how do you handle urgent orders?
Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Will I get timely responses and professional support throughout the project?
Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Can you provide material certifications and environmental compliance reports?
Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
How do you protect my designs and intellectual property?
We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
What are your payment terms and MOQ requirements?
We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
