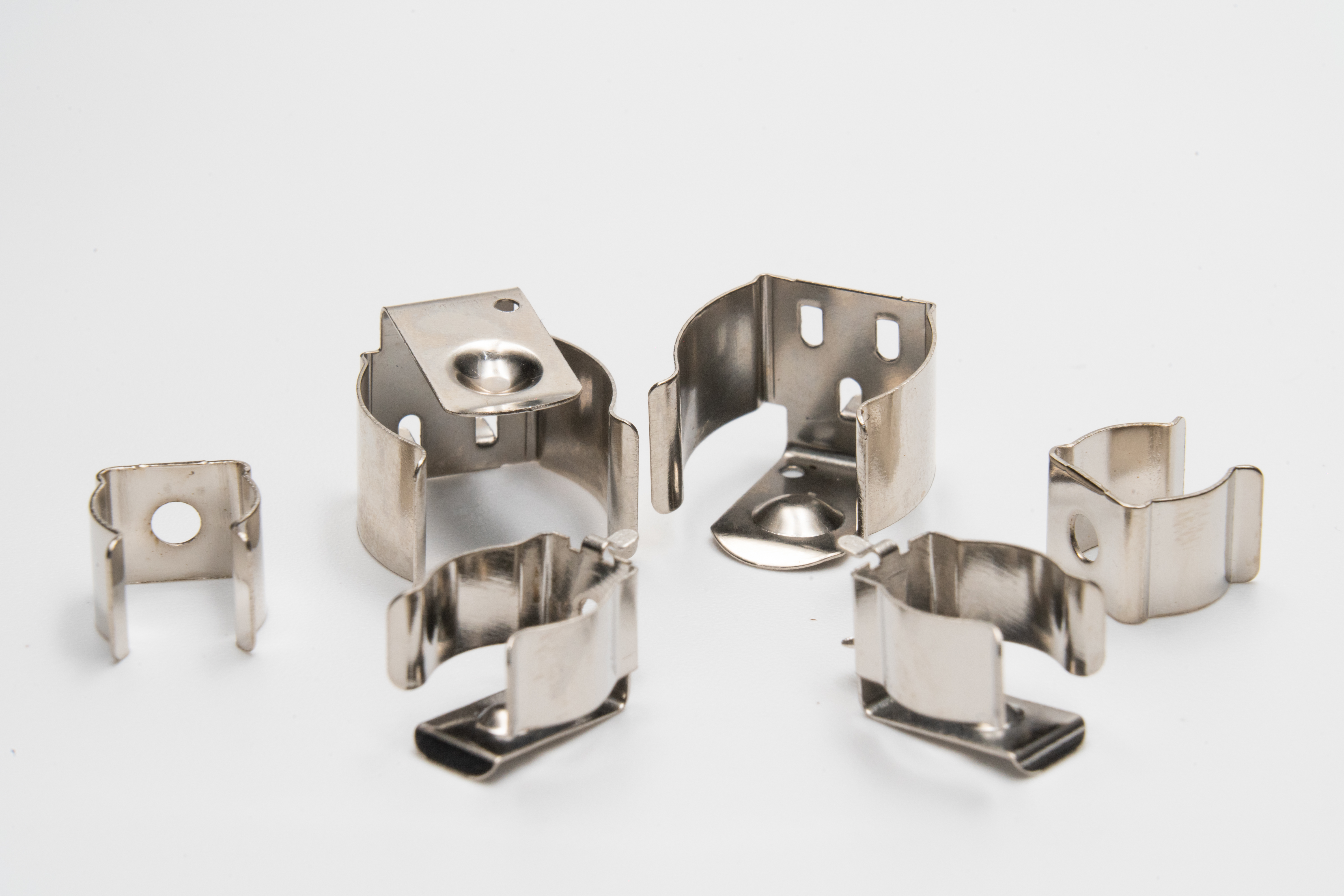

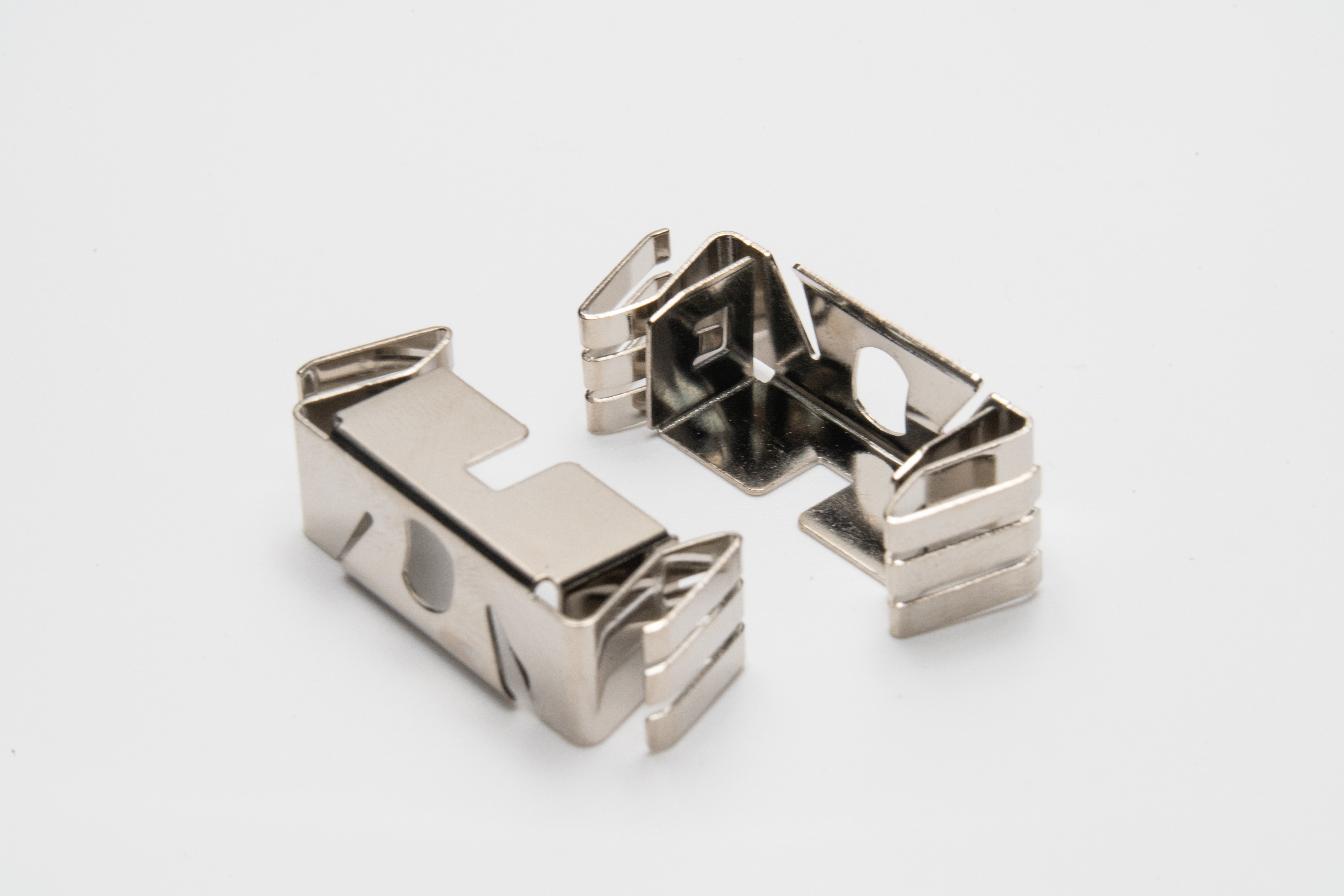

Customized Precision Stamping Parts Surface Integrity Demands Sheet Metal Stamping Parts
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | TF |
| Certification | lSO9001 |
| Model Number | TF-003 |
| Minimum Order Quantity | 1 |
| Price | 0.07-0.23USD |
| Packaging Details | Carton packaging 18*15*12cm (packaging can be customized according to customer product requirements) |
| Delivery Time | 3days/Start |
| Payment Terms | T/T |
| Supply Ability | 10000000pieces/per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Precision Stamping Parts | Main Material | Stainless Steel / Copper Alloy / Spring Steel |
|---|---|---|---|
| Process Type | Progressive Die Stamping / Fine Blanking | Material Thickness | 0.1-0.5mm / 0.5-1.0mm |
| Tolerance Grade | High-Precision (±0.02mm) | Surface Finish | Nickel Plating / Anodizing |
| Application Industry | Medical Devices / Precision Electronics | Drawing Format | PDF / STEP / DWG/DXF / IGES |
| Highlight | customized Precision Stamping Parts,Surface Integrity Precision Stamping Parts,customized Sheet Metal Stamping Parts |
||
Product Description
Precision Stamping Solutions for Extreme Tolerance & Surface Integrity Demands
1．Precision Stamping PartsQuick Detail
Tingfeng Hardware specializes in the manufacturing of high-difficulty, high-precision micro and complex structural metal stampings. We possess a professional engineering team and advanced manufacturing equipment, committed to transforming your precision designs into high-quality parts suitable for stable mass production. We offer full-process services from feasibility analysis and mold design to mass production, ensuring rapid project response and reliable delivery performance. We are your trusted partner in the field of precision metal parts.
2. Precision Stamping Parts Product Description
We are not just parts producers, but an extension of your R&D team. Facing increasingly stringent trends of miniaturization and integration, we leverage our profound expertise in precision progressive die stamping, fine blanking, and micro-bending to successfully serve fields with extremely high demands on dimensional tolerance, geometric accuracy, and surface integrity. From precision connector terminals to micro-sensor components, we ensure optimal balance in product performance, cost, and delivery timeline through in-depth DFM collaboration and continuous process optimization.
3．Precision Stamping Parts Product Features & Advantage
|
Feature |
Advantage to You |
|
Micro & Complex Structure Precision Forming |
Expertise in one-step stamping forming of micro-holes (down to Φ0.3mm), micro-pitch bending, and complex 3D structures, reducing secondary processing and improving part integrity and reliability. |
|
Excellent Dimensional & Geometric Tolerance Control |
Relying on high-precision molds and stable processes, key dimensional tolerances can be controlled within ±0.02mm, ensuring perfect fit and functionality of parts in precision systems. |
|
Agile Development & Sample Response |
Rapid response from the engineering team, smooth process from drawing review to sample delivery, supporting fast design iteration and significantly shortening product development cycles. |
|
Strict Full-Process Quality Assurance |
Implement closed-loop quality management from raw material certification, in-process SPC monitoring to finished product full inspection, ensuring high consistency and reliability for every batch. |
|
Comprehensive Material & Surface Treatment Expertise |
Proficient in the properties of various materials like stainless steel and copper alloys, and offer multiple functional and decorative surface treatment solutions to meet diverse needs. |
4．Precision Stamping Parts Product Specification
|
Specification Item |
Detail / Range |
Tolerance / Standard |
|
Material Thickness Range |
0.1 — 6.0 mm |
Common range, customizable |
|
High-Precision Dimensional Tolerance |
±0.02 mm |
For critical features |
|
Standard Dimensional Tolerance |
±0.05 mm |
GB/T 15055-2007 |
|
Flatness |
≤ 0.05 mm / 100 mm |
Standard value, can be improved |
|
Burr Height (Standard) |
≤ 0.03 mm |
Can be lower with mirror blanking |
|
Minimum Punching Diameter |
0.3 mm |
Material thickness dependent |
|
Surface Roughness Range |
Ra 0.8 — 3.2 μm |
Process dependent |
5.Precision Stamping Parts Product Application
Our precision stampings are core elements for realizing the functionality and reliability of high-end equipment:
Minimally Invasive Surgical Instruments & Diagnostic Equipment: Precision structural parts for endoscopes, joint pieces for surgical forceps, metal electrodes for test kits, requiring extremely high smoothness, burr-free edges, and biocompatibility.
High-Reliability Connection Systems: Terminals for high-speed backplane connectors, spring contacts for board-to-board connectors, housings for optical communication modules, ensuring stable signal transmission and low loss.
Precision Sensors & Actuators: Package lids for MEMS sensors, valve plates for micro-pumps, grating disks for precision encoders, with stringent standards for dimensional stability and material performance.
Micro Acoustic Devices: T-yokes for micro speakers, diaphragm brackets for receivers, requiring complex 3D forming and strict dimensional control.
6. Frequently Asked Questions (FAQ)
Q: Can you handle complex custom designs and provide design optimization suggestions?
A: Absolutely. This is our core expertise. We provide free DFM analysis within 3-5 days, often helping clients achieve 15-30% cost reduction through design for manufacturability.
Q: How do you ensure quality consistency and handle defect issues?
A: We implement a rigorous 4-stage QC system with 100% full inspection. Our track record shows 99.99% qualification rate.
Q: What are your lead times and how do you handle urgent orders?
A: Standard lead times: 3-7 days for prototypes, 7-15 days for mass production. We offer VIP prioritization cutting lead times by up to 30%.
Q: Will I get timely responses and professional support throughout the project?
A: Yes. You get a 1v1 exclusive consultant with 1-hour initial response commitment and 24-hour technical support.
Q: Can you provide material certifications and environmental compliance reports?
A: Yes. We provide material certifications and environmental test reports (RoHS, REACH compliant) upon request.
Q: How do you protect my designs and intellectual property?
A: We start with mutual NDA and implement strict mold ownership protection and confidential data security measures.
Q: What are your payment terms and MOQ requirements?
A: We offer flexible payment terms (T/T, L/C at sight) and MOQ from 1 piece for prototyping.
